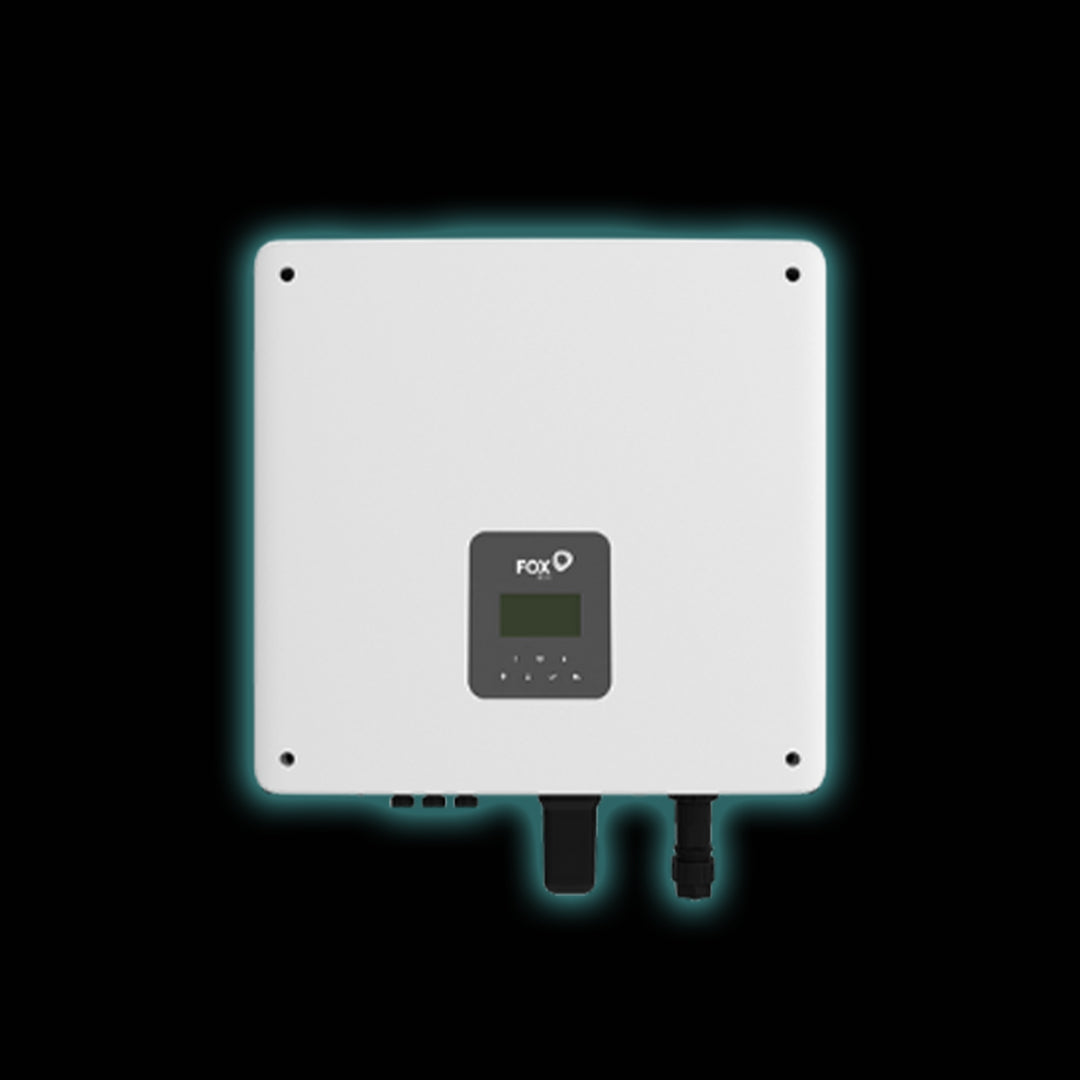

FoxESS 5kW Single Hybrid Inverter
FoxESS 5kW Single Hybrid Inverter
Couldn't load pickup availability
CONTACT US FOR RESELLER PRICING
The FoxESS 5kW Single Hybrid Inverter is a next‑generation energy management solution engineered for high efficiency, flexible installation, and long‑term reliability. Designed for both residential and small commercial solar systems, it seamlessly integrates solar generation, battery storage, and smart energy control to maximise self‑consumption and reduce grid reliance.
Built with advanced power electronics and a high‑voltage battery platform, this hybrid inverter ensures exceptional round‑trip efficiency, fast response times, and stable output under all conditions. Its IP65 weatherproof rating makes it suitable for indoor or outdoor installations, while intuitive remote monitoring provides full visibility of system performance at any time.
Key Features
Hybrid Functionality
Supports simultaneous solar generation and battery storage, enabling energy use day and night.
High Efficiency Performance
Delivers up to 98.5% maximum efficiency, helping maximise system yield and overall return on investment.
High-Voltage Battery Compatibility
Engineered for use with Fox ESS high-voltage lithium (LFP) batteries, supporting up to seven battery modules for expandable storage up to 33.24 kWh.
Reliable Backup Power
Includes EPS (Emergency Power Supply) output to provide backup capability during grid outages.
Flexible Installation
Compact, wall‑mounted design with natural cooling and low noise emission. Ideal for both urban and rural environments.
Smart Remote Monitoring
Monitor real‑time performance through app or web-based dashboards using WiFi, LAN, or optional 4G connectivity.
Advanced Protection Suite
Includes insulation monitoring, residual current protection, anti‑islanding, reverse polarity protection, surge protection, and integrated DC switch.
Technical Highlights
- Rated Output Power: 5,000 W
- Max PV Input Power: Up to 7,500 W
- Max Battery Voltage: 80–480 V
- Max Charge/Discharge Current: 40 A
- MPPT Trackers: 2 independent trackers for optimal energy harvesting
- Efficiency: Up to 98.5% peak efficiency
- Operating Temperature: -25°C to 60°C
- Protection Rating: IP65
- Dimensions: 434 × 418 × 185 mm
- Weight: 23 kg
-
