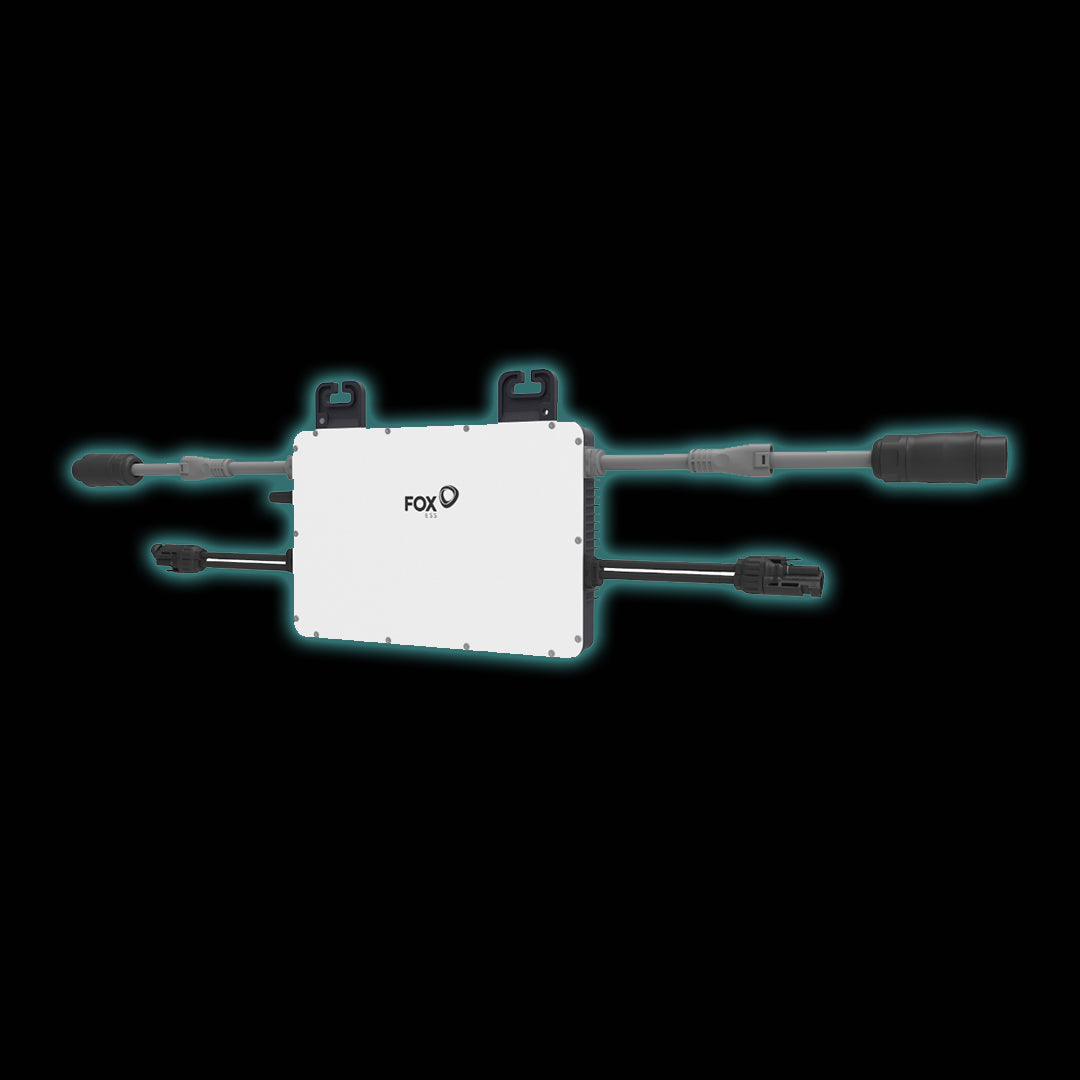

FoxESS M1-1200 Micro Inverter - 1.2kW of Smart Solar Power

Upgrade your solar system with the FoxESS M1-1200 Micro Inverter, delivering 1.2kW of high-efficiency power conversion for residential and commercial installations. Engineered for performance, durability, and flexibility, this inverter ensures maximum energy harvest from your solar panels.

Key Features

• High Efficiency: Up to 96% max efficiency and 99.9% MPPT efficiency for optimal power output.
• Smart Monitoring: Real-time performance tracking via FoxESS Cloud, smartphone app, or web portal.
• Robust Design: IP67-rated for superior protection against dust and water, ideal for outdoor installations.
• Wide Compatibility: Supports PV modules from 355Wp to 670Wp+ with a wide voltage range (31V–45V).
• Safe & Reliable: Built-in DC and AC over-voltage protection, reinforced isolation, and compliance with international standards (IEC62109, EN50549, VDE-AR-N 4105).
• Easy Installation: Plug-and-play setup with flexible configuration options.

Technical Specifications

• Nominal Output Power: 1200W
• Nominal Voltage/Frequency: 230V | 50/60Hz
• Dimensions: 270 × 182 × 34.5 mm
• Weight: 3.9 kg
• Cooling: Natural convection – no fans
• Operating Temperature: -25°C to +65°C
• Ingress Protection: IP67

Why Choose FoxESS M1-1200?

The FoxESS M1-1200 Micro Inverter is designed for maximum energy yield, long-term reliability, and smart connectivity. Whether you’re upgrading an existing system or starting fresh, this inverter offers the perfect balance of power, safety, and convenience.

FoxESS M1-1200 Micro Inverter Specification Document
