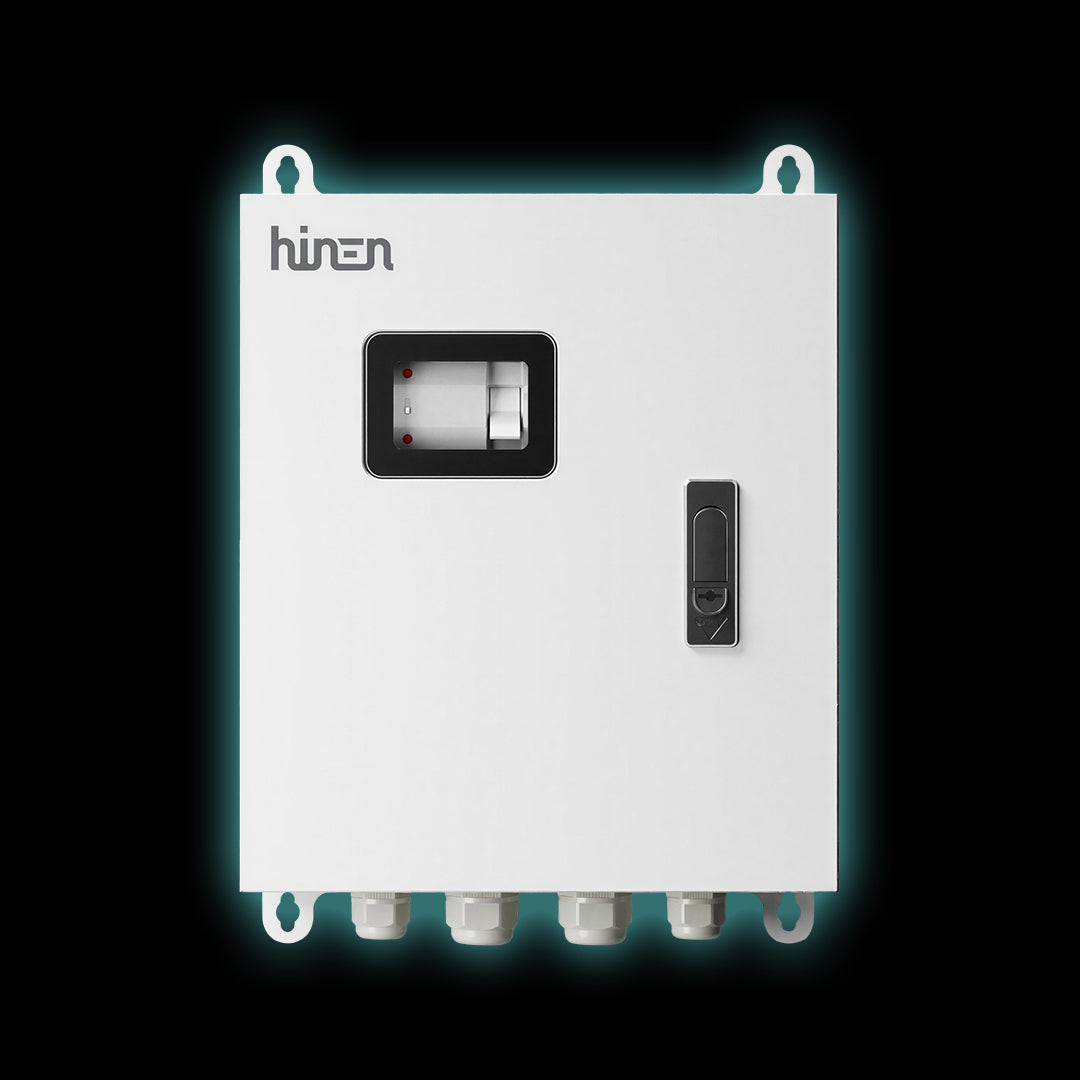

Hinen Portable Power Station Smart Box - PS3000 AC Combiner Box

The Hinen Portable Power Station Smart Box PS3000 AC Combiner Box is an intelligent power management solution designed specifically for the Hinen PS3000 Portable Power Station. Engineered to provide seamless backup power integration, automatic switching, and enhanced electrical protection, the Smart Box simplifies the connection between utility power, backup power systems, and critical household or business loads.

Featuring an integrated breaker and intelligent switching technology, the PS3000 Smart Box automatically transfers power between the grid and the portable power station with a switching time of less than 100 milliseconds. This rapid transition helps keep essential appliances and equipment running during power interruptions, making it ideal for load shedding protection, backup power applications, home offices, security systems, and critical electrical circuits.

The unit includes a manual bypass switch, allowing users to manually control power flow when required for maintenance or operational flexibility. Built with surge protection rated at 5kA/10kV, the Smart Box helps safeguard connected equipment from voltage spikes and electrical disturbances.

Designed for wall-mounted installation, the PS3000 Smart Box offers a compact and professional solution for integrating portable backup energy into residential, commercial, and light industrial environments. Its robust design and intelligent operation make it the perfect companion for the Hinen PS3000 Portable Power Station.

Key Features

• Designed for use with the Hinen PS3000 Portable Power Station
• Intelligent automatic power transfer system
• Grid disconnection switch time of less than 100ms
• Grid recovery switch time of less than 100ms
• Integrated circuit breaker for enhanced safety
• Manual control bypass switch included
• Surge protection rated at 5kA / 10kV
• Supports seamless backup power operation
• Compact wall-mounted design
• Ideal for load shedding and emergency backup applications
• Reliable power management for residential and commercial installations

Technical Specifications

Grid (Utility Power Input)

• Rated AC Power: 5300W
• Continuous Input Current: 25A
• AC Input Voltage: 230V
• Voltage Range: 197V - 253V
• Frequency: 50Hz / 60Hz
• Maximum AC Input Overcurrent Protection: 40A

EPS (Backup Power Output)

• Rated AC Power: 3000W
• Rated Continuous Output Current: 13A
• AC Output Voltage: 230V
• Voltage Range: 197V - 253V
• Frequency: 50Hz / 60Hz
• Maximum AC Output Overcurrent Protection: 40A

Load Output

• Rated AC Power: 3000W
• Rated Continuous Output Current: 13A
• AC Output Voltage: 230V
• Voltage Range: 197V - 253V
• Frequency: 50Hz / 60Hz
• Maximum AC Output Overcurrent Protection: 40A

Inverter Backup Power Input

• Rated AC Power: 2300W
• Rated Continuous Output Current: 10A
• AC Voltage: 230V
• Voltage Range: 197V - 253V
• Frequency: 50Hz / 60Hz

Environmental Specifications

• Operating Temperature Range: -25°C to 60°C
• Operating Humidity: Up to 90% RH
• Protection Rating: IP20
• Maximum Elevation: 2000m

Weight and Dimensions

• Weight: 6kg
• Dimensions (H × W × D): 300 × 350 × 93mm
