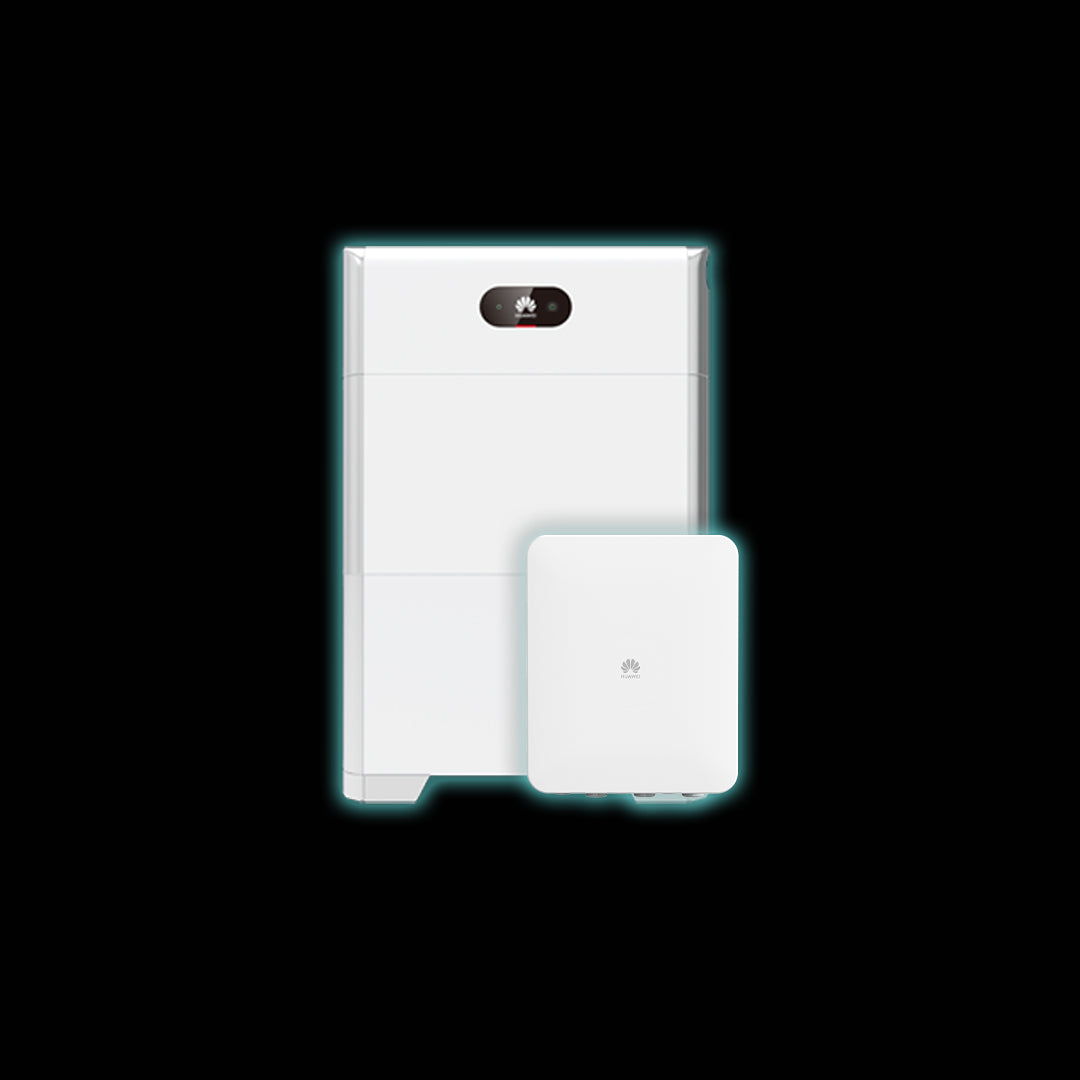

Huawei LUNA2000 5kW Inverter and 2x 5kW Battery + Smart Guard 63A-S0

Power your home or business with the Huawei LUNA2000 10kWh Energy Storage System paired with the Smart Guard 63A-S0 backup solution. Designed for advanced solar energy storage, seamless backup power, and intelligent energy management, this complete Huawei battery system delivers reliable performance during load shedding, grid outages, and peak energy demand.

The system includes a Huawei LUNA2000 5kW power module, 2x 5kWh lithium battery modules for a total usable storage capacity of 10kWh, and the Huawei Smart Guard 63A-S0 for ultra-fast backup switching and intelligent whole-home backup functionality.

Key Features

• 10kWh usable lithium battery storage capacity
• 5kW charge and discharge power
• Seamless backup switchover in ≤20ms
• Modular battery design expandable from 5kWh to 30kWh
• Advanced LiFePO4 battery technology for maximum safety and lifespan
• 100% depth of discharge for maximum usable energy
• IP66 battery protection rating for indoor and outdoor installation
• Intelligent energy management with built-in EMMA technology
• Compatible with selected Huawei SUN2000 single-phase and three-phase inverters
• Natural convection cooling with ultra-low noise operation below 29dB
• Smart load management and whole-home backup capability
• Supports solar self-consumption optimisation and energy independence

What’s Included

• 1x Huawei LUNA2000-5KW-C0 Power Module
• 2x Huawei LUNA2000-5-E0 5kWh Battery Modules
• 1x Huawei Smart Guard 63A-S0
• Floor stand mounting kit

Huawei LUNA2000 Battery Specifications

The Huawei LUNA2000 battery system uses premium Lithium Iron Phosphate (LiFePO4) cell technology, offering improved thermal stability, long cycle life, and enhanced safety compared to traditional lithium battery systems. The system supports over 5000 charge cycles and is engineered for reliable long-term solar energy storage.

Battery Performance

• Usable Capacity: 10kWh
• Nominal Voltage: 450V (single-phase systems)
• Max Charging/Discharging Power: 7kW
• Standard Charging/Discharging Power: 5kW
• Operating Temperature: -20°C to +55°C
• IP Rating: IP66
• Cooling: Natural convection
• Noise Level: <29dB

Smart Guard 63A-S0 Backup Protection

The Huawei Smart Guard 63A-S0 provides intelligent backup power management with ultra-fast switchover technology of less than 20 milliseconds, helping keep essential appliances and circuits powered during outages. It supports whole-home backup operation without requiring an additional switchboard and includes manual bypass functionality for enhanced reliability.

Smart Guard Features

• Max Grid Current: 63A
• Backup Load Support: 63A
• Intelligent load control
• Integrated LAN, WLAN, RS485, and digital I/O connectivity
• IP55 weather-resistant protection
• Supports Huawei smart ecosystem integration

Ideal Applications

• Residential solar backup systems
• Load shedding protection
• Home energy storage
• Off-grid and hybrid solar systems
• Commercial backup power applications
• Solar self-consumption optimisation

The Huawei LUNA2000 10kWh battery system with Smart Guard 63A-S0 is an excellent solution for homeowners and businesses looking for reliable solar battery backup, advanced energy management, and scalable storage technology from one of the world’s leading energy brands.
