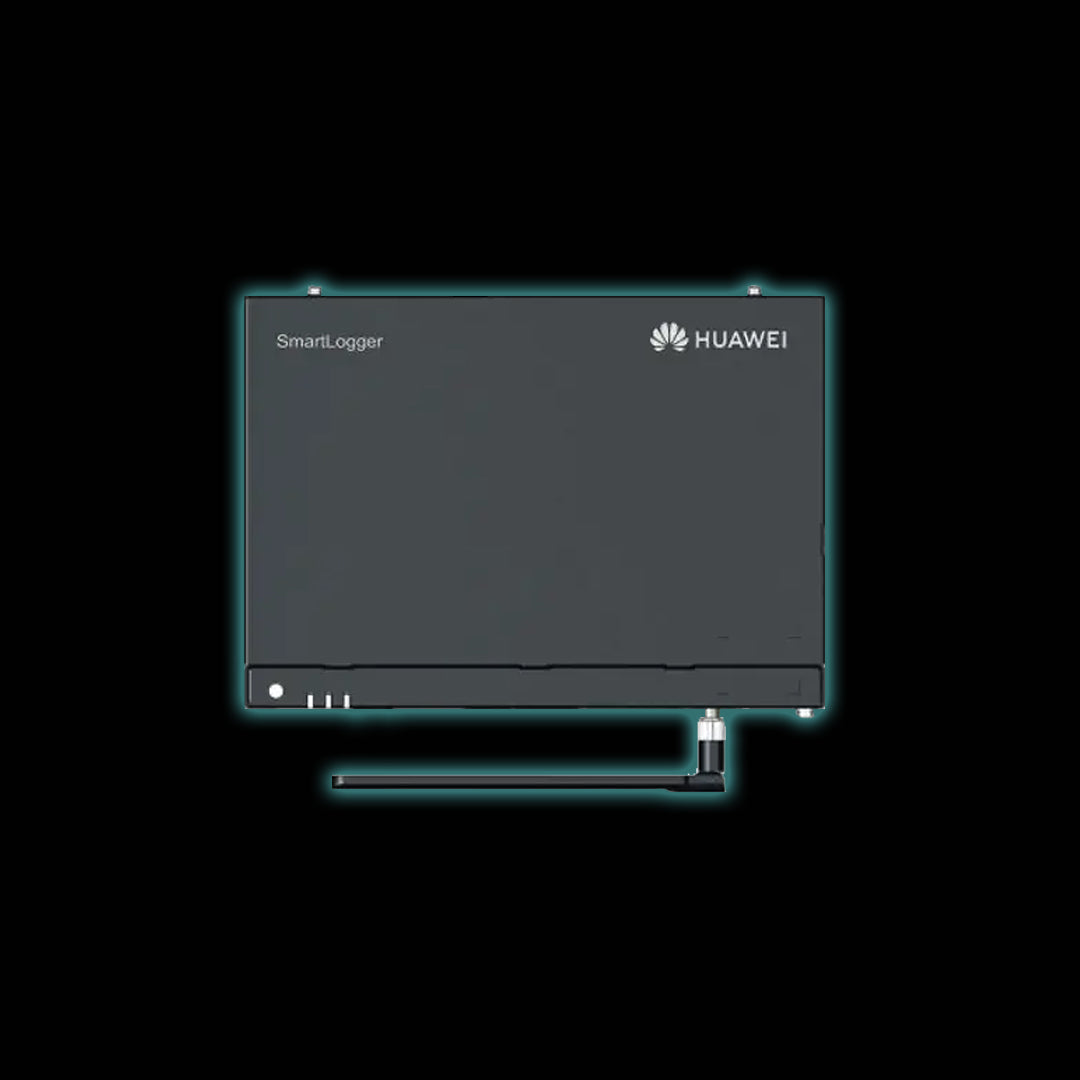

Huawei Smart Logger 3000A01EU Solar Smart Monitor & Data Logger with 4G

The Huawei Smart Logger 3000A01EU is a powerful solar monitoring and data logging solution designed for intelligent PV system management. With advanced communication capabilities and robust environmental tolerance, it ensures reliable performance across residential, commercial, and industrial solar installations.

Key Features:

• Device Management: Supports up to 80 connected devices for centralized monitoring and control.
• 4G Connectivity: Integrated LTE (FDD) support for remote access and real-time data transmission.
• Multiple Interfaces: Equipped with WAN, LAN, RS485, and USB 2.0 ports for flexible integration.
• Digital & Analog I/O: Includes 4 digital inputs, 2 digital outputs, and 4 analog inputs for versatile system interaction.
• Smart Control: Enables zero export control and supports Modbus-TCP, IEC 60870-5-104, and Modbus-RTU protocols.
• Environmental Resilience: Operates in extreme temperatures from -40°C to 60°C and altitudes up to 4,000 meters.
• Compact & Durable: IP20-rated enclosure with multiple mounting options (wall, DIN rail, tabletop).

Technical Specifications:

• Power Supply: AC 100–240V, 50/60Hz; DC 12V/24V
• Power Consumption: Typical 8W, Max 15W
• Dimensions: 225 x 160 x 44 mm
• Weight: 2 kg
• LED Indicators: RUN, ALM, 4G status
• Web Interface: Embedded web server for configuration and monitoring
• Commissioning: WLAN-enabled setup via mobile app

Applications:

Ideal for solar energy professionals seeking a reliable and scalable monitoring solution, the Smart Logger 3000A01EU ensures seamless data acquisition, system diagnostics, and performance optimization.
