Huawei
Huawei SUN2000 100KTL M1 Grid tied Inverter
Huawei SUN2000 100KTL M1 Grid tied Inverter
Couldn't load pickup availability
CONTACT US FOR RESELLER PRICING

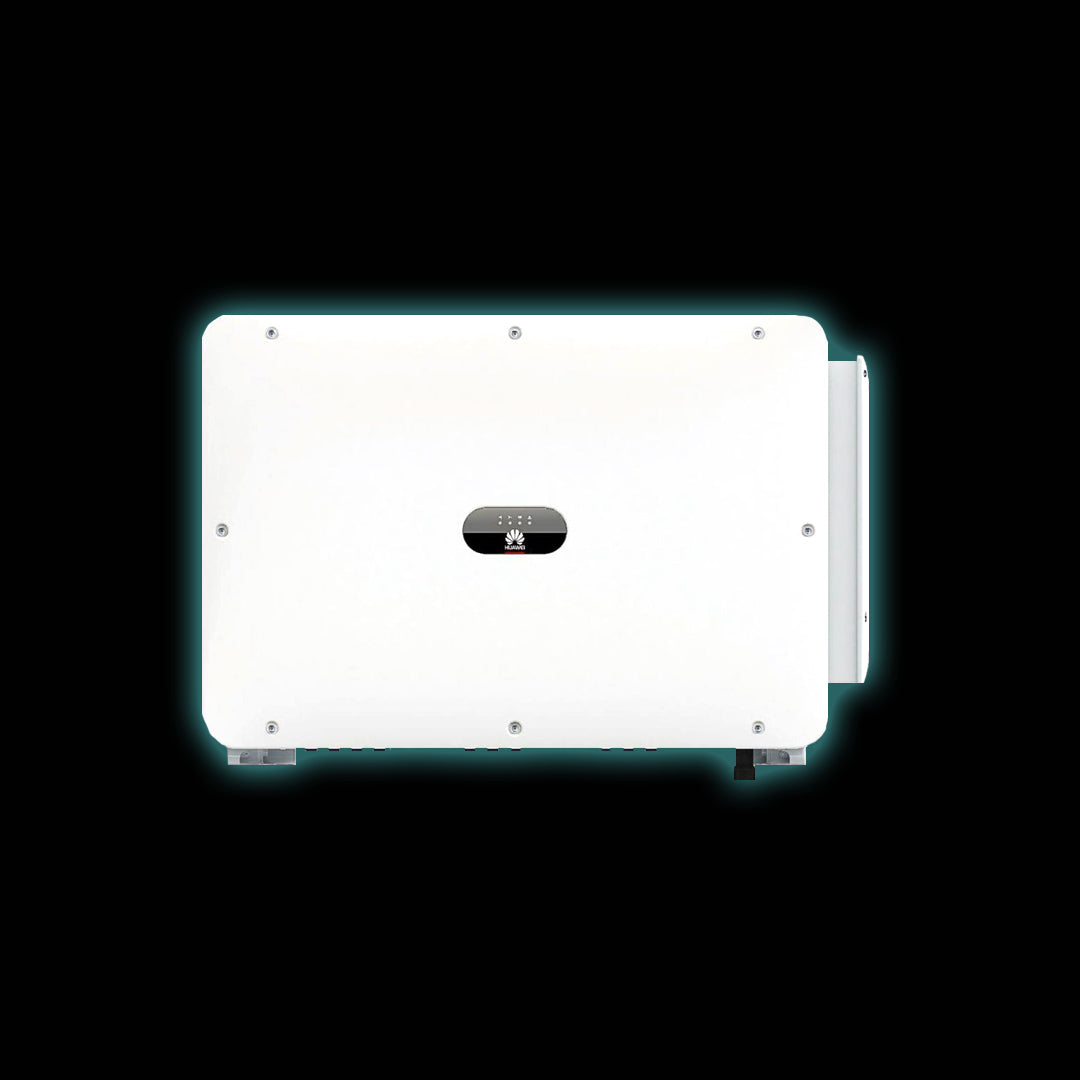

The Huawei SUN2000 100KTL M1 is a powerful three-phase grid-tied solar inverter designed for commercial and industrial solar energy systems. Engineered for high efficiency, intelligent monitoring, and long-term reliability, this inverter delivers exceptional performance for large-scale photovoltaic installations.
With a maximum efficiency of 98.8%, 10 MPPT trackers, and support for 20 PV string inputs, the SUN2000-100KTL-M1 maximises solar energy production while optimising system flexibility for complex rooftop and ground-mounted solar projects.
The inverter features advanced Smart PV technology including Smart I-V Curve Diagnosis, integrated Type II surge protection on both AC and DC sides, and a fuse-free design for enhanced safety and lower maintenance requirements.
Key Features
- 100kW three-phase grid-tied solar inverter
- Maximum efficiency of 98.8%
- 10 MPPT trackers for superior energy harvesting
- Supports up to 20 string inputs
- Smart I-V Curve Diagnosis for intelligent fault detection
- Integrated Type II DC and AC surge protection
- Fuse-free design for improved reliability
- IP66-rated enclosure for outdoor installations
- Smart air cooling technology
- Bluetooth, WLAN, RS485, USB, and MBUS communication support
- Transformerless topology for higher efficiency
- Designed for commercial and industrial solar systems
Technical Specifications
- Rated AC Power: 100,000W
- Maximum AC Apparent Power: 110,000VA
- Maximum Input Voltage: 1,100V
- MPPT Voltage Range: 200V – 1,000V
- Rated Output Voltage: 400V
- Grid Frequency: 50Hz / 60Hz
- Maximum Output Current: 160.4A
- Operating Temperature Range: -25°C to 60°C
- Protection Rating: IP66
- Dimensions: 1035 × 700 × 365mm
- Weight: 90kg
Applications
Ideal for:
- Commercial solar installations
- Industrial photovoltaic systems
- Large rooftop solar projects
- Agricultural solar systems
- Ground-mounted solar arrays
- Energy cost reduction projects
Why Choose Huawei SUN2000 100KTL M1
Huawei is recognised globally for innovative solar technology and intelligent energy solutions. The SUN2000 100KTL M1 combines high conversion efficiency, advanced safety protection, and smart monitoring features to maximise energy generation and minimise system downtime
