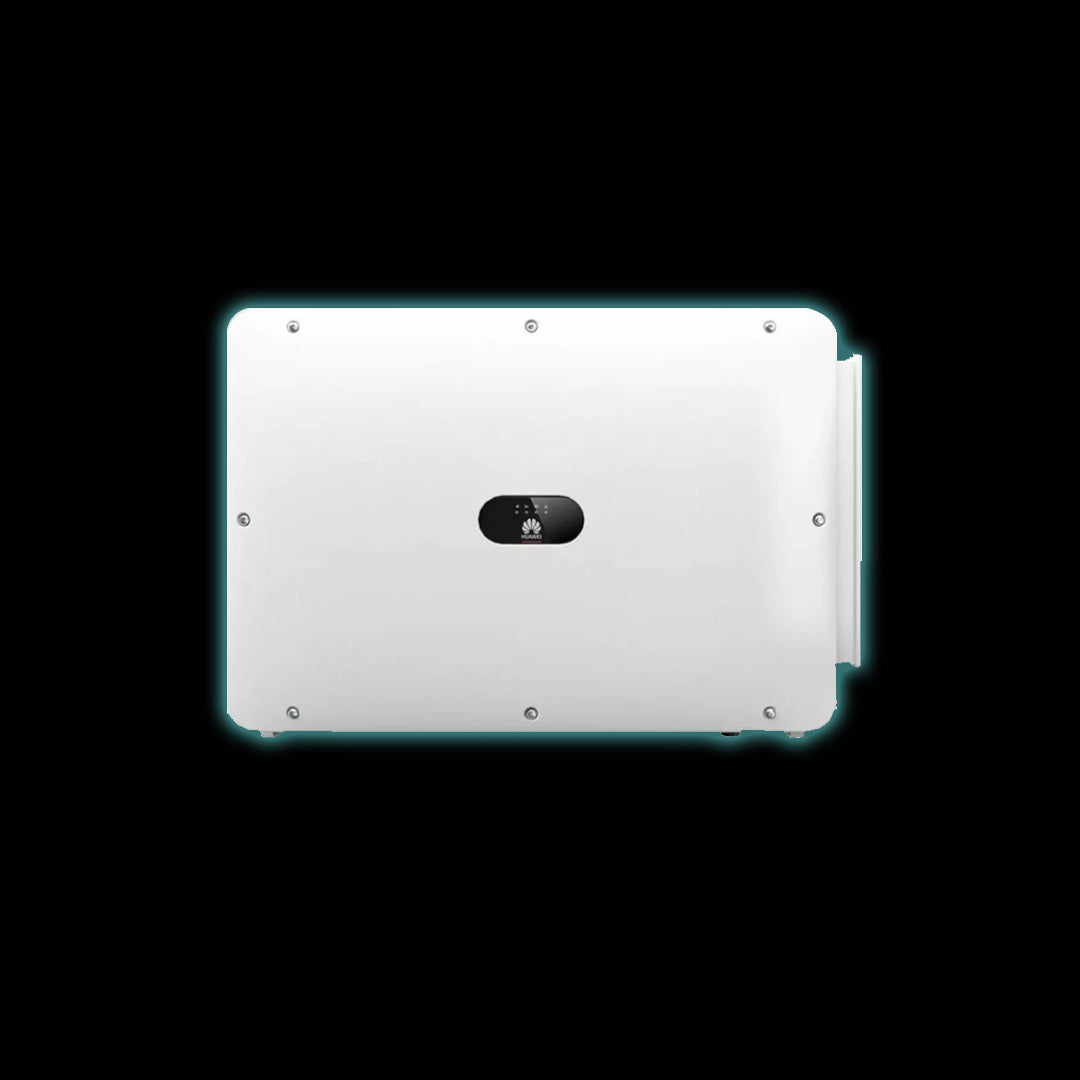

Huawei SUN2000 200KTL H2 Inverter

The Huawei SUN2000-200KTL-H2 is a next-generation 200kW smart string inverter engineered for utility-scale and commercial solar installations. Built with advanced digital power conversion and intelligent system management, this high-efficiency inverter delivers superior performance, enhanced safety, and optimized energy yield for large photovoltaic systems.

Designed for modern solar projects, the SUN2000-200KTL-H2 combines robust hardware with intelligent diagnostics and connectivity, making it an ideal solution for EPC contractors, solar developers, and industrial energy users.

Key Features and Benefits

Industry-Leading Efficiency

• Maximum efficiency of ?99.0% for exceptional energy conversion
• European efficiency of ?98.8% ensures strong real-world performance
• Wide MPPT voltage range of 500V to 1500V maximizes energy capture across varying conditions

High Power Output and Scalability

• Rated AC output power of 200,000W for large-scale solar applications
• Maximum AC apparent power up to 215kW for enhanced operating capacity
• 9 MPPTs with 18 inputs for flexible system design and improved string management
• Supports 1500V DC systems for reduced balance-of-system costs

Advanced Smart Technology

• Smart I-V curve diagnosis enables fast and accurate fault detection
• Intelligent string-level monitoring improves system visibility and performance
• FusionSolar platform compatibility for real-time monitoring and remote management
• Built-in MBUS, RS485, WLAN, and app connectivity for seamless integration

Comprehensive Protection and Safety

• Integrated DC and AC surge protection (Type II) for system reliability
• Anti-islanding protection and residual current monitoring for grid safety
• DC reverse polarity protection and insulation resistance detection
• Smart string-level disconnector and fault monitoring for enhanced system protection

Robust and Durable Design

• IP66 protection rating for outdoor installation in demanding environments
• Operating temperature range from -25°C to 60°C
• Smart air cooling system ensures optimal performance and longevity
• Lightweight design at ?86 kg for easier installation

Technical Specifications

• Model: Huawei SUN2000-200KTL-H2
• Rated Output Power: 200kW
• Maximum Efficiency: ?99.0%
• Maximum Input Voltage: 1500V
• MPPT Voltage Range: 500V – 1500V
• Number of MPPTs: 9
• Number of Inputs: 18
• Cooling Method: Smart Air Cooling
• Protection Rating: IP66
• Dimensions: 1035 x 700 x 365 mm
• Weight: ?86 kg

Ideal Applications

• Utility-scale solar farms
• Commercial and industrial solar systems
• Large rooftop PV installations
• High-voltage 1500V solar projects

Why Choose Huawei SUN2000-200KTL-H2

Huawei is a global leader in smart photovoltaic technology, combining digital intelligence with reliable hardware engineering. The SUN2000-200KTL-H2 inverter is designed to maximize return on investment by delivering higher efficiency, improved operational insights, and reduced maintenance costs.

With cutting-edge safety features, advanced monitoring capabilities, and superior performance, this inverter is the ideal choice for large-scale solar energy projects requiring efficiency, scalability, and long-term reliability.
