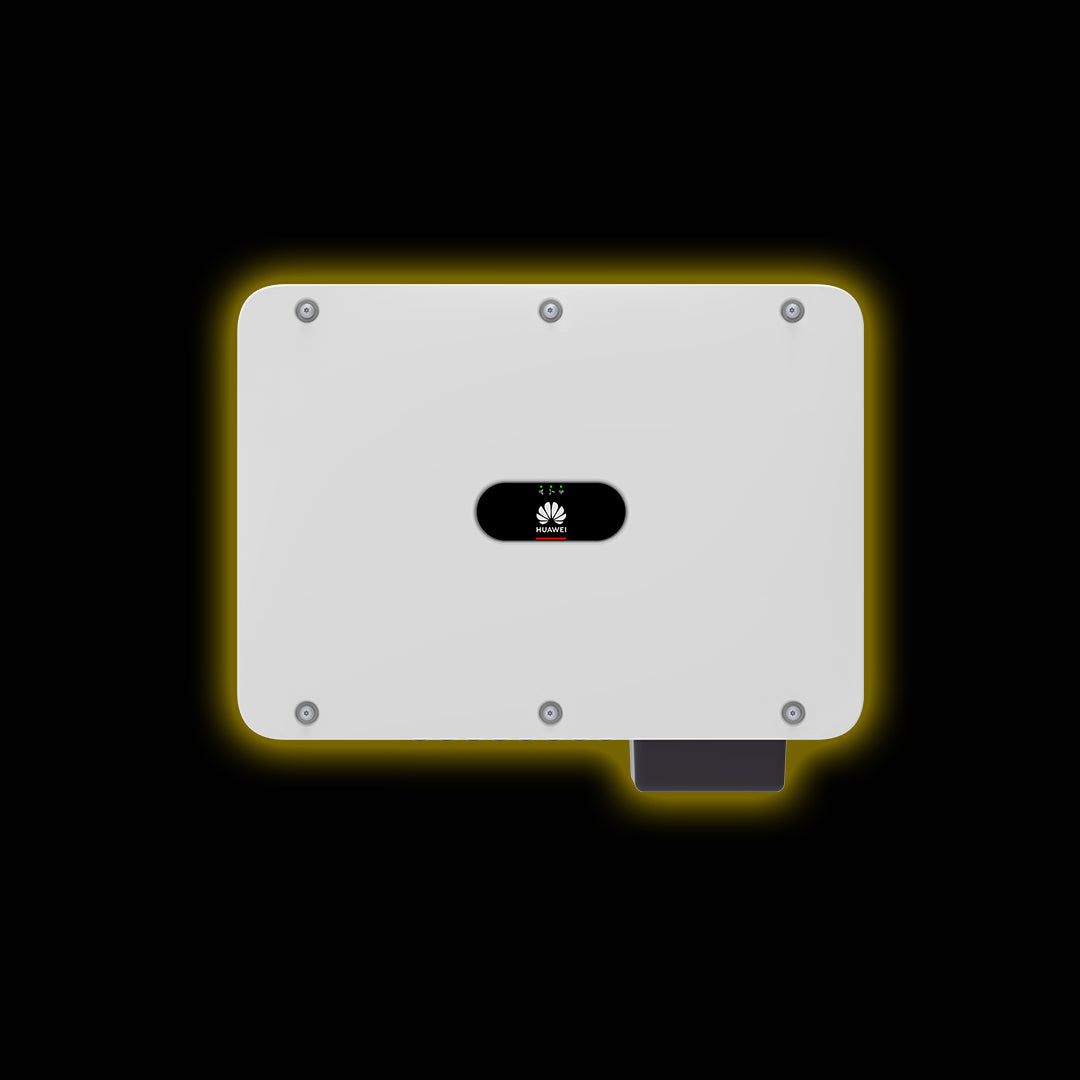

Huawei SUN2000 30KTL M3 Three-Phase Solar Inverter - Pre Owned

The Huawei SUN2000 30KTL, 36KTL, and 40KTL-M3 are high-performance three-phase string inverters engineered for commercial and industrial solar installations. Designed with cutting-edge technology, these smart PV controllers deliver exceptional efficiency, safety, and intelligent monitoring capabilities.

Key Features:

• Maximum Efficiency: Up to 98.7% conversion efficiency ensures optimal energy yield.
• Smart Monitoring: 8-string intelligent monitoring with 4 MPPTs for precise performance tracking.
• Surge Protection: Integrated Type II DC & AC surge arresters for enhanced reliability.
• Safety First: Fuse-free design with arc fault protection, residual current monitoring, and DC insulation resistance detection.
• Wide MPPT Range: Operates efficiently across 200V to 1000V input range.
• Robust Communication: Supports RS485, WLAN, Ethernet, and optional 4G connectivity via Smart Dongle.
• Durable Build: IP66-rated enclosure with natural convection cooling, suitable for harsh environments.
• PID Recovery: Integrated PID recovery function to mitigate potential-induced degradation in PV modules.

Technical Highlights:

• Rated AC Power: 30kW / 36kW / 40kW depending on model
• Max AC Apparent Power: Up to 44kVA
• Output Voltage: 230/400/480 Vac, 3W/N+PE
• Operating Temperature: -25°C to +60°C
• Dimensions: 640 x 530 x 270 mm
• Weight: 43 kg
• Altitude Tolerance: Up to 4000m (derating above 2000m)

Compliance & Standards:

Certified to international safety and grid standards including IEC 62109, VDE-AR-N4105, AS/NZS 4777.2, and NRS 097-2-1, making it suitable for deployment in diverse regions and grid environments.

Applications:

Ideal for commercial rooftops, industrial facilities, and large-scale solar projects requiring high reliability, smart diagnostics, and efficient energy conversion.
