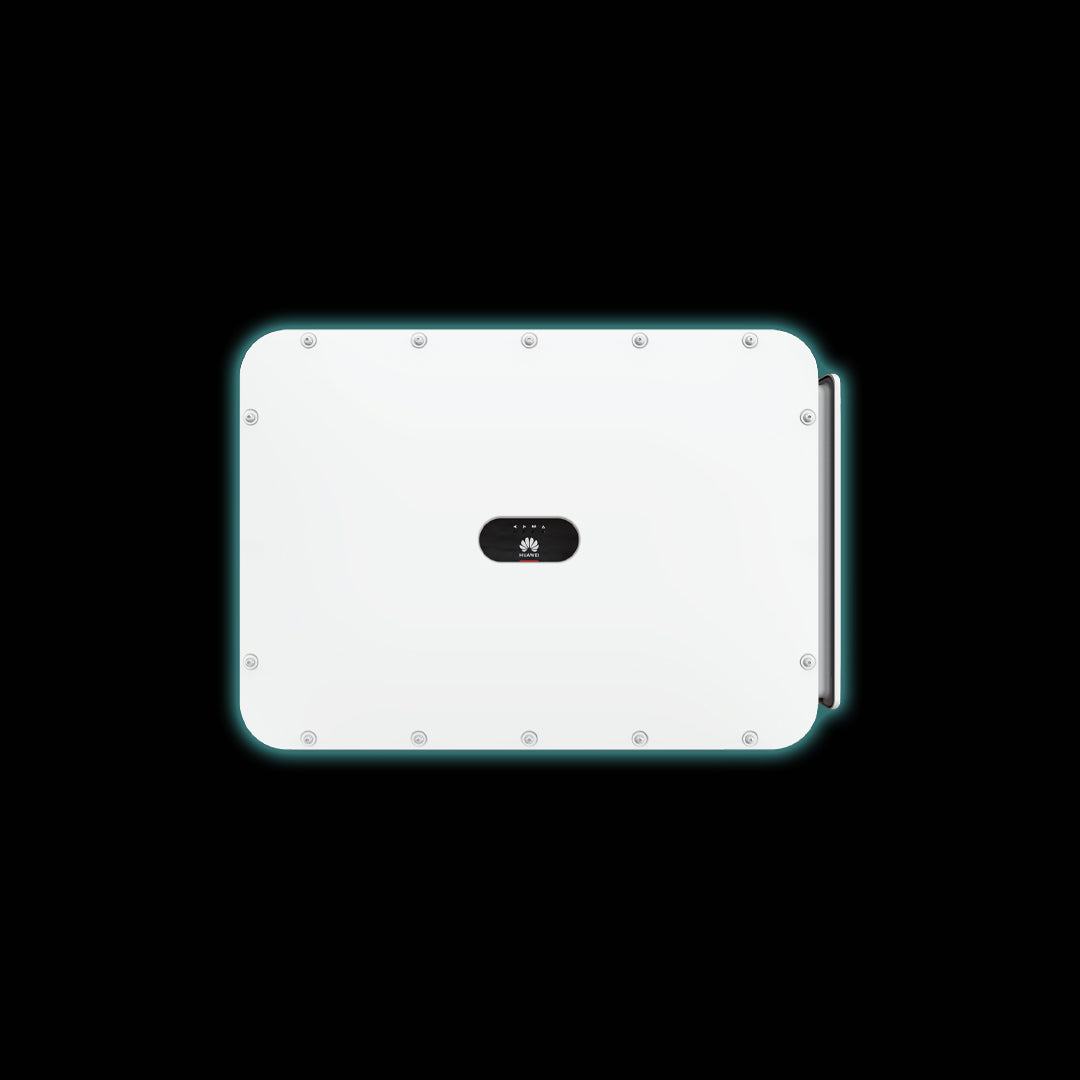

Huawei SUN5000 150K-MGO

The Huawei SUN5000-150K-MG0 is a high-performance, utility-scale smart string inverter designed for commercial and industrial solar power systems. Built with advanced digital technology, intelligent monitoring, and industry-leading safety features, this 150kW inverter delivers exceptional efficiency, reliability, and system optimization for large-scale photovoltaic installations.

Engineered for maximum energy yield and long-term performance, the SUN5000-150K-MG0 integrates seamlessly into smart PV ecosystems, making it an ideal solution for businesses seeking efficient and scalable solar energy generation.

Key Features and Benefits

High Efficiency and Energy Yield

• Maximum efficiency of up to 98.8% ensures optimal energy conversion
• European efficiency rating of 98.4% for consistent real-world performance
• Wide operating voltage range from 200V to 1000V supports flexible system design
• Compatible with Huawei optimization technologies to increase overall energy production

Powerful 150kW Output

• Rated AC output power of 150,000W, suitable for commercial and industrial applications
• Maximum AC power capacity up to 165kW for enhanced performance
• Supports multiple grid voltages including 380V, 400V, and 480V
• Up to 12 input strings for scalable system layouts

Advanced Safety and Protection

• Integrated arc fault protection for enhanced fire prevention
• DC and AC surge protection (Type II) for system durability
• Anti-islanding protection and residual current monitoring for grid compliance
• Smart string-level disconnection and temperature detection for reliable operation

Smart Monitoring and Connectivity

• Compatible with Huawei FusionSolar platform for real-time system monitoring
• LED indicators and mobile app support for easy diagnostics and control
• RS485 and optional 4G or WLAN connectivity via Smart Dongle
• Intelligent lifecycle management with remote upgrades and maintenance

Durable and Reliable Design

• IP66-rated enclosure for outdoor installation in harsh environments
• Operating temperature range from -25°C to +60°C
• Smart air cooling system ensures efficient thermal management
• Supports installation at altitudes up to 4,000 meters

Technical Specifications

• Model: Huawei SUN5000-150K-MG0
• Rated Output Power: 150kW
• Maximum Efficiency: 98.8%
• Maximum Input Voltage: 1100V
• MPPT Voltage Range: 200V – 1000V
• Max Input Strings: 12
• Cooling Method: Smart Air Cooling
• Protection Rating: IP66
• Dimensions: 1000 x 710 x 395 mm
• Weight:  100 kg

Ideal Applications

• Commercial and industrial solar installations
• Large-scale rooftop solar systems
• Ground-mounted solar farms
• Energy-intensive business operations

Why Choose Huawei SUN5000-150K-MG0

Huawei is a global leader in solar inverter technology, known for integrating digital intelligence with power electronics. The SUN5000-150K-MG0 offers a robust combination of high efficiency, advanced safety, and smart energy management, making it a top choice for professional solar installers and EPC contractors.

This inverter is designed to maximize return on investment by delivering higher energy yields, reduced maintenance costs, and long-term system reliability.
