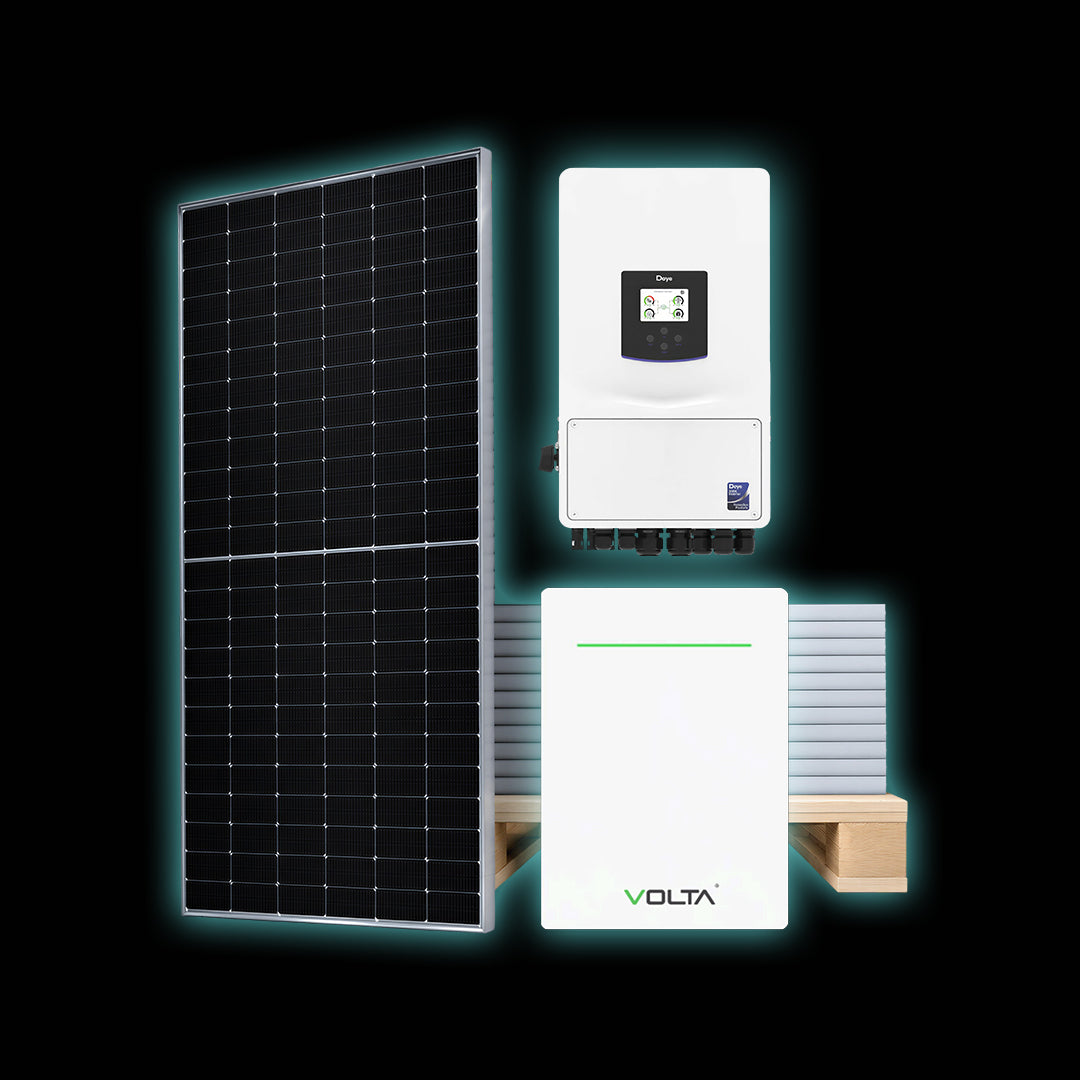

Installed 10kW Deye & Volta Energy Solar System with 12x 625W Solar Panels

Power your home or business with a premium hybrid solar solution designed for energy independence, reduced electricity costs, and reliable backup power. This professionally installed 10kW Deye & Volta Energy Solar System combines a high-performance Deye hybrid inverter, advanced Volta lithium battery storage, and 12 high-efficiency 625W solar panels to deliver dependable solar generation and uninterrupted power during load shedding.

The system features a 10kW Deye Single-Phase Hybrid Inverter with intelligent energy management, grid-tied and off-grid capability, battery backup integration, and advanced monitoring functionality. The inverter supports seamless switching between solar, battery, grid, and generator power, ensuring your essential loads remain operational when utility power is unavailable. The Deye 10kW inverter delivers up to 10,000W of AC output power and supports high solar input capacity for maximum energy harvesting.

Energy storage is provided by a Volta Stage 3 Lithium Iron Phosphate (LiFePO4) Battery with a usable storage capacity of 10.24kWh. The battery operates at 51.2V with a 200Ah capacity and supports up to 150A discharge current, providing reliable backup power and excellent cycle life. The Volta battery includes CAN and RS485 communication, optional WiFi monitoring, and is backed by a 10-year battery cell warranty.

The package includes 12 premium 625W solar panels, providing a total installed solar capacity of 7.5kW. These high-output panels generate renewable energy throughout the day, helping reduce dependence on the municipal grid while maximizing long-term savings.

Key Features

• 10kW Deye Single-Phase Hybrid Inverter
• 10.24kWh Volta Stage 3 Lithium Battery
• 12 × 625W Solar Panels (7.5kW Total PV Capacity)
• Intelligent hybrid solar and battery management
• Seamless backup power during load shedding and outages
• Compatible with grid, solar, battery, and generator inputs
• Remote monitoring capability via WiFi
• High-efficiency energy conversion
• Scalable battery storage options
• Professional installation included
• Ideal for residential homes, offices, and small businesses

Technical Specifications

Inverter

• Brand: Deye
• Model: SUN-10K-SG06LP1-EU-CM3
• Rated Output Power: 10kW
• Hybrid Single-Phase Inverter
• Battery Voltage Range: 40V - 60V
• Maximum Charging Current: 220A
• Maximum Discharging Current: 220A
• IP65 Rated for outdoor installation
• Parallel operation support available

Battery

• Brand: Volta Energy
• Model: Volta Stage 3
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Capacity: 200Ah
• Nominal Energy: 10.24kWh
• Nominal Voltage: 51.2V
• Maximum Discharge Current: 150A
• Communication: CAN, RS485, USB
• Installation: Floor Standing
• Warranty: 10-Year Battery Cell Warranty

Solar Array

• Quantity: 12 Solar Panels
• Power Rating per Panel: 625W
• Total Solar Capacity: 7.5kW

Package Includes

• 1 × Deye 10kW Hybrid Inverter
• 1 × Volta Stage 3 10.24kWh Lithium Battery
• 12 × 625W Solar Panels
• Mounting Structure and Installation Hardware
• DC and AC Protection Equipment
• Cabling and Connectors
• System Configuration and Commissioning
• Professional Installation

Ideal Applications

This 10kW solar and battery backup system is well suited for medium to large homes, offices, retail stores, agricultural applications, and businesses looking to reduce electricity expenses while maintaining power during load shedding and grid failures. The combination of a high-capacity lithium battery and efficient solar generation ensures reliable performance and long-term energy savings.
