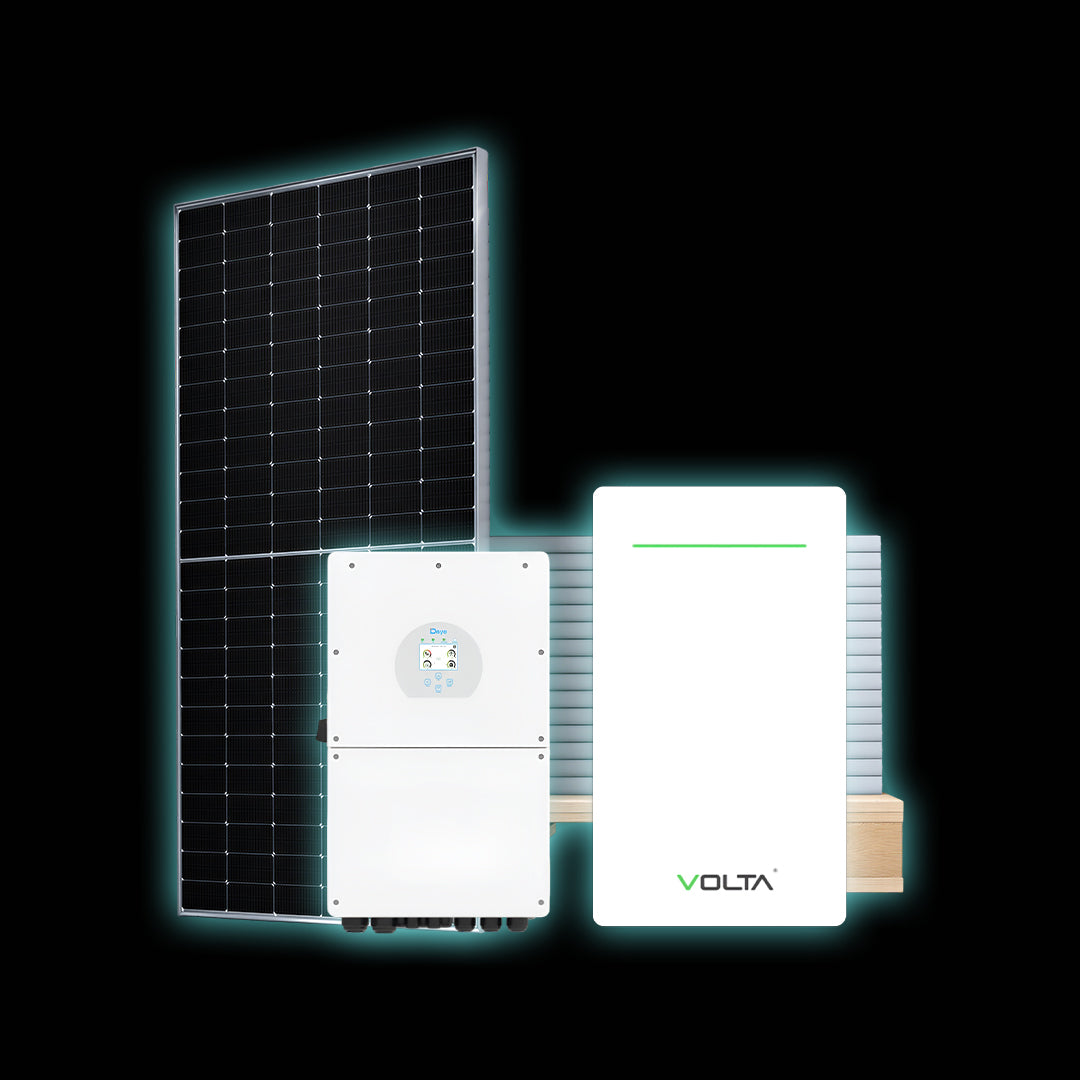

Installed 12kW Deye & Volta Energy Solar System with 14x 625W Solar Panels

Achieve energy independence and protection from load shedding with the Installed 12kW Deye & Volta Energy Solar System. This premium solar package combines high-efficiency 625W solar panels, a powerful Deye 12kW Hybrid Inverter, and a Volta Stage 4 14.34kWh Lithium Battery to deliver reliable power, long-lasting backup, and significant electricity savings for homes and businesses.

Designed for South African conditions, this professionally installed hybrid solar solution provides seamless integration between solar generation, battery storage, and grid power. During the day, solar energy powers your loads while charging the battery. Excess energy is stored for use during the evening, peak tariff periods, or power outages, ensuring continuous energy availability.

The system includes 14 high-performance 625W solar panels, providing an installed solar array capacity of 8.75kWp. Customers can choose between a Deye 12kW Single Phase Hybrid Inverter or a Deye 12kW Three Phase Hybrid Inverter, making this package suitable for a wide range of residential and commercial applications.

The Volta Stage 4 Lithium Battery utilizes advanced LiFePO4 technology, offering outstanding safety, long cycle life, and dependable energy storage. With a substantial 14.34kWh capacity, the battery provides extended backup power and supports larger household and business energy demands.

Key Features

• Complete professionally installed solar and battery backup solution
• 14 × 625W high-efficiency solar panels
• Total solar array size: 8.75kWp
• Deye 12kW Hybrid Inverter
• Available in Single Phase or Three Phase models
• Volta Stage 4 14.34kWh LiFePO4 Battery
• Intelligent battery management system
• Seamless backup power during load shedding and outages
• Remote monitoring and smart energy management
• Grid-tied and off-grid compatible operation
• Expandable system design
• Weather-resistant equipment suitable for residential and commercial installations
• Optimised for maximum solar energy harvesting and storage

Deye 12kW Hybrid Inverter Specifications

Single Phase Model

• Rated Power: 12kW
• Maximum PV Input Power: 18,000W
• Battery Voltage: 48V
• Maximum Charge/Discharge Current: 250A
• IP65 Protection Rating
• Parallel Operation Support
• Advanced Monitoring and Control

Three Phase Model

• Rated Power: 12kW
• Maximum PV Input Power: 15,600W
• Battery Voltage: 48V
• Maximum Charge/Discharge Current: 240A
• IP65 Protection Rating
• Three-Phase Load Management
• Parallel Expansion Capability
• Intelligent Energy Management Functions

Volta Stage 4 Battery Specifications

• Battery Capacity: 14.34kWh
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Capacity: 280Ah
• Maximum Discharge Current: 200A
• Communication Ports: CAN, RS485, USB
• Installation Type: Floor Standing
• Dimensions: 490 × 840 × 242mm
• Weight: 123kg
• Battery Cell Warranty: 10 Years
• Optional WiFi Monitoring Capability

Ideal Applications

• Residential homes
• Large family households
• Offices and small businesses
• Load shedding backup systems
• Energy cost reduction projects
• Solar self-consumption systems
• Essential and non-essential load applications

Package Includes

• 14 × 625W Solar Panels
• 1 × Deye 12kW Hybrid Inverter (Single Phase or Three Phase)
• 1 × Volta Stage 4 14.34kWh Lithium Battery
• Solar mounting structure
• DC protection equipment
• AC protection equipment
• Solar cabling and connectors
• Battery communication cables
• Professional installation and commissioning
• System programming and configuration
• Testing and operational handover

Benefits

The Installed 12kW Deye & Volta Energy Solar System is engineered to reduce electricity costs, provide reliable backup power during load shedding, and increase energy security. With premium Deye inverter technology, advanced Volta lithium battery storage, and high-output solar panels, this system delivers exceptional performance, efficiency, and long-term value for both residential and commercial users.
