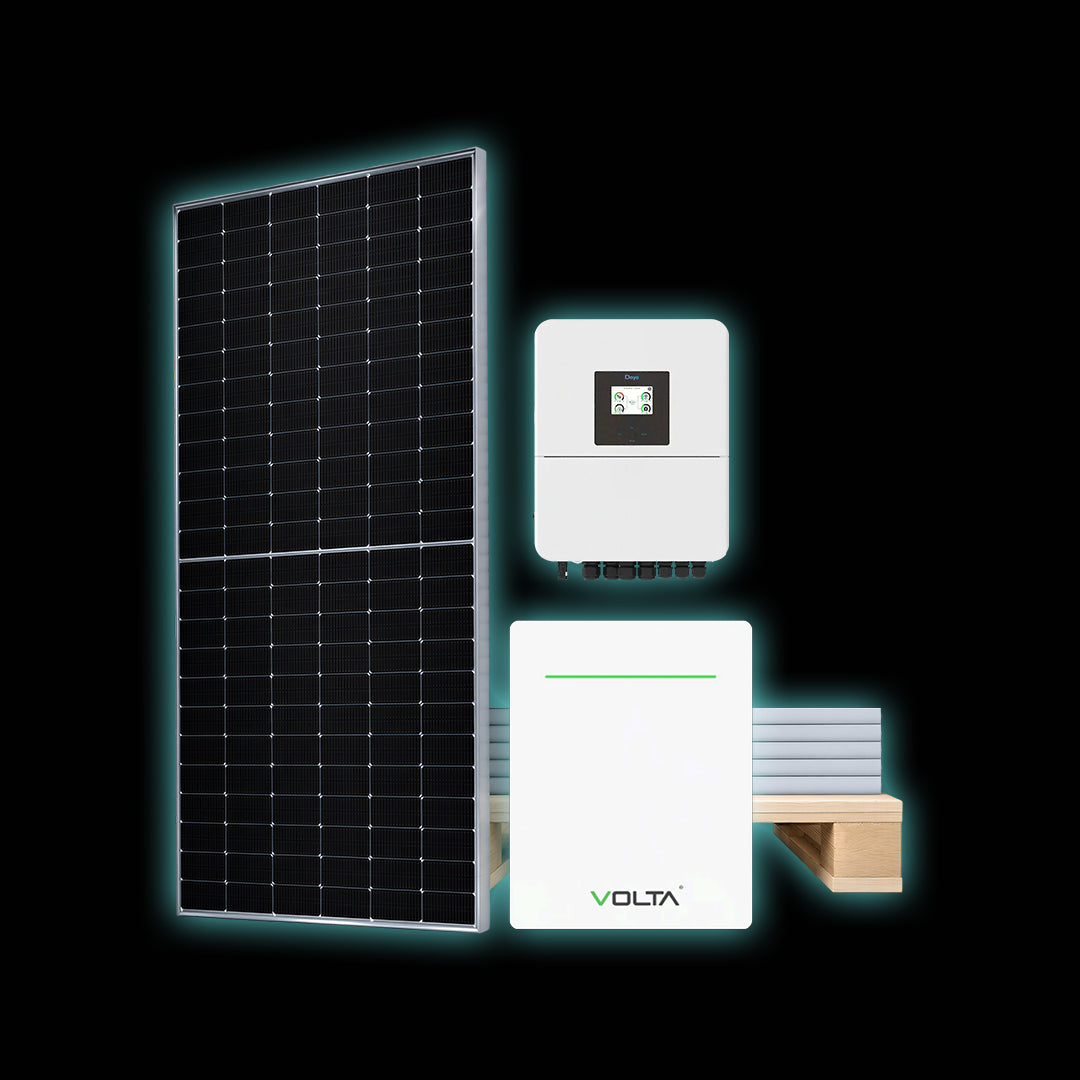

Installed 5kW Deye & Volta Energy Solar System with 6 x 580W Solar Panels

The Installed 5kW Deye & Volta Energy Solar System is a complete solar and backup power solution designed for homes, offices, and small businesses. Combining a Deye 5kW Single-Phase Hybrid Inverter, a Volta 5.12kWh Stage 1 Lithium Battery, and 6 high-efficiency 580W solar panels, this package delivers reliable backup power, reduced electricity costs, and increased energy independence.

With a total solar generation capacity of 3.48kW, the system harnesses solar energy during the day while storing excess energy in the lithium battery for use during the evening, cloudy weather, or power outages. The Deye hybrid inverter intelligently manages power from solar panels, batteries, the electrical grid, and generators to ensure continuous and efficient operation.

Key Features

• Complete professionally installed solar and backup power system
• Deye 5kW Single-Phase Hybrid Inverter
• Volta Stage 1 5.12kWh Lithium Iron Phosphate (LiFePO4) Battery
• 6 x 580W high-efficiency solar panels
• Total solar capacity of 3.48kW
• Intelligent energy management and self-consumption optimisation
• Reliable power during load shedding and outages
• Remote monitoring via WiFi
• Generator compatible
• Expandable battery storage options
• Suitable for residential and small commercial applications

Deye 5kW Hybrid Inverter

The Deye 5kW Hybrid Inverter offers advanced energy management capabilities and supports both grid-tied and off-grid operation. Designed for modern energy requirements, it delivers reliable performance and flexibility for future expansion.

Inverter Features

• 5kW rated output power
• Supports solar, battery, grid, and generator inputs
• Up to 9.6kW PV input capacity
• Maximum charge/discharge current of 140A
• Compatible with lithium and lead-acid batteries
• IP65-rated weather-resistant design
• Parallel operation capability for system expansion
• Smart battery management integration
• Advanced protection and monitoring functions
• LCD touchscreen display
• Remote monitoring and management options

Volta Stage 1 Lithium Battery

The Volta Stage 1 Battery uses safe and reliable Lithium Iron Phosphate (LiFePO4) technology, providing dependable backup power and long service life.

Battery Features

• 5.12kWh energy storage capacity
• 51.2V nominal voltage
• 100Ah capacity
• Long cycle life
• Advanced battery management system
• Wall-mounted installation
• CAN and RS485 communication support
• Compatible with Deye hybrid inverters
• 10-year battery cell warranty

Solar Panel Array

This package includes 6 premium 580W solar panels delivering a combined solar generation capacity of 3.48kW.

Solar Panel Benefits

• High-efficiency energy production
• Durable construction for long-term outdoor use
• Excellent performance in South African conditions
• Designed to maximise daily solar generation

Technical Specifications

Inverter

• Model: Deye 5kW Single-Phase Hybrid Inverter
• Rated Power: 5kW
• Protection Rating: IP65
• Weight: 19kg
• Dimensions: 376 x 470 x 241.5mm

Battery

• Model: Volta Stage 1 Battery
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Capacity: 5.12kWh
• Voltage: 51.2V
• Capacity Rating: 100Ah
• Weight: 52kg
• Dimensions: 480 x 600 x 150mm

Solar Array

• Quantity: 6 Solar Panels
• Panel Rating: 580W each
• Total Solar Capacity: 3.48kW

Ideal For

• Residential homes
• Townhouses and complexes
• Home offices
• Small businesses
• Load shedding protection
• Backup power applications
• Lowering monthly electricity costs
• Maximising solar self-consumption

Package Includes

• 1 x Deye 5kW Single-Phase Hybrid Inverter
• 1 x Volta 5.12kWh Stage 1 Lithium Battery
• 6 x 580W Solar Panels
• Solar mounting structure
• DC and AC protection equipment
• Cabling and connectors
• System commissioning
• Professional installation

The Installed 5kW Deye & Volta Energy Solar System is an ideal solution for homeowners and businesses seeking reliable backup power, reduced reliance on the grid, and long-term savings through clean solar energy generation and battery storage.
