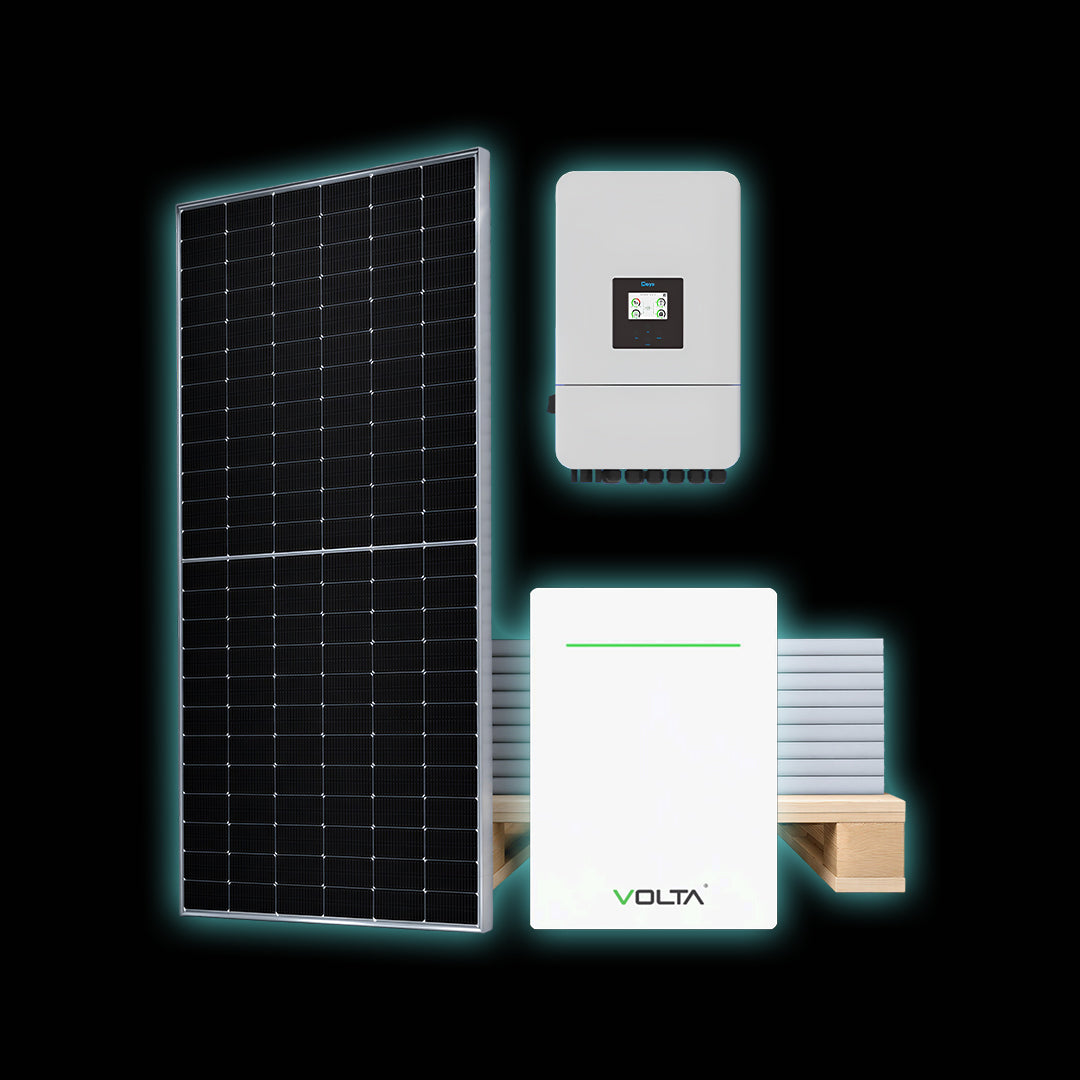

Installed 8kW Deye & Volta Energy Solar System with 10x 625W Solar Panels

Power your home or business with a professionally installed hybrid solar energy solution designed for reliable backup power, reduced electricity costs, and maximum energy independence. This premium solar package combines the trusted performance of a Deye 8kW Single Phase Hybrid Inverter, a Volta Energy 10.24kWh Lithium Battery, and 10 high-efficiency 625W solar panels to deliver a complete solar and battery storage system suitable for residential and light commercial applications.

The system provides a total solar array capacity of 6.25kW using ten 625W solar panels, enabling efficient daytime power generation while storing excess solar energy in the advanced Volta lithium battery for use during the evening, power outages, or load shedding periods.

At the heart of the installation is the Deye SUN-8K-SG05LP1-EU-SM2 8kW Single Phase Hybrid Inverter, featuring intelligent energy management, seamless backup power functionality, grid-tied and off-grid capability, dual MPPT solar tracking, and battery integration for maximum efficiency. The inverter supports both lithium-ion and lead-acid batteries, offers up to 97.6% efficiency, IP65 weather protection, and can deliver reliable energy management for modern homes.

The package includes a Volta Energy Stage 3 10.24kWh Lithium Iron Phosphate (LiFePO4) Battery with a nominal voltage of 51.2V and 200Ah capacity. Designed for long-term reliability, the battery supports floor-standing installation, CAN and RS485 communication, optional WiFi monitoring, and comes with a 10-year battery cell warranty. The advanced LiFePO4 chemistry offers improved safety, longevity, and excellent cycle life for daily energy storage applications.

Key Features

• Complete installed solar and battery backup system
• 10 × 625W high-efficiency solar panels
• Total solar generation capacity: 6.25kW
• Deye 8kW Single Phase Hybrid Inverter
• Volta 10.24kWh Lithium Iron Phosphate Battery
• Intelligent hybrid operation with battery backup
• Seamless load shedding and power outage protection
• Dual MPPT solar tracking for improved energy harvest
• Grid-tied, hybrid, and off-grid capable
• Expandable battery storage platform
• Remote monitoring capability
• High-efficiency energy conversion up to 97.6%
• IP65-rated inverter suitable for indoor and outdoor installation
• 10-year battery cell warranty from Volta Energy

Technical Specifications

Solar Panels

• Quantity: 10 Panels
• Power Rating: 625W each
• Total PV Capacity: 6.25kW

Deye Hybrid Inverter

• Model: SUN-8K-SG05LP1-EU-SM2
• Rated Power: 8,000W
• Single Phase Hybrid Inverter
• Battery Voltage Range: 40V-60V
• Maximum Charging Current: 190A
• Maximum Discharging Current: 190A
• Maximum PV Input Power: 16,000W
• Dual MPPT Inputs
• IP65 Protection Rating
• Efficiency: Up to 97.6%

Volta Lithium Battery

• Model: Volta Stage 3
• Usable Energy Capacity: 10.24kWh
• Nominal Voltage: 51.2V
• Capacity: 200Ah
• Battery Chemistry: LiFePO4
• Maximum Discharge Current: 150A
• Dimensions: 480 × 650 × 240 mm
• Weight: 89kg
• Warranty: 10 Years on Battery Cells Ideal Applications

• Residential homes
• Load shedding backup systems
• Energy cost reduction
• Home offices
• Small businesses
• Farms and remote properties
• Hybrid solar installations

This installed 8kW Deye and Volta Energy Solar System offers a complete renewable energy solution that delivers reliable backup power, lower electricity bills, protection from load shedding, and long-term energy security. Combining premium solar generation, intelligent inverter technology, and advanced lithium battery storage, it provides a dependable and scalable energy system for South African homes and businesses seeking sustainable power independence.

Package Includes

• 1 × Deye 8kW Single Phase Hybrid Inverter
• 1 × Volta 10.24kWh Stage 3 Lithium Battery
• 10 × 625W Solar Panels
• Professional Installation
• System Configuration and Commissioning
• Compliance Documentation (where applicable)
• Complete Mounting and Electrical Balance of System Components (subject to installation scope)
