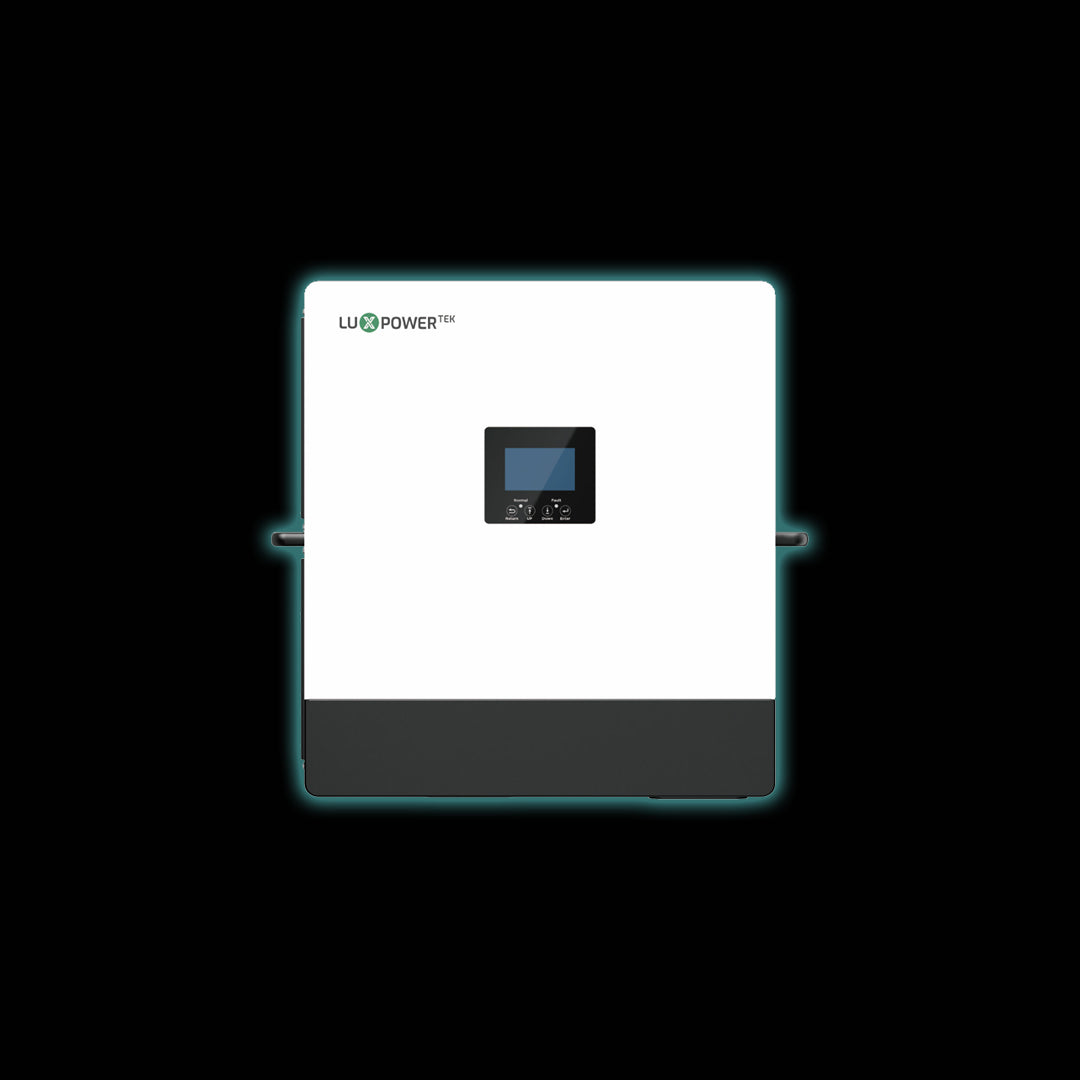

Luxpower 10kW Off Grid Single Phase (SNA10000)

The Luxpower 10kW Off Grid Single Phase (SNA10000) is a powerful, flexible hybrid inverter designed for residential and light commercial solar systems that require reliable off-grid performance, intelligent energy management, and scalable system expansion. Built to deliver efficient solar conversion and seamless backup power, this inverter is ideal for energy independence and high-demand applications.

Key Features

• Reliable 10kW Output Power
  Provides stable single-phase output for homes and small businesses, supporting essential and high-load appliances.

• High Solar Input Capacity
  Supports up to 24kW photovoltaic input, allowing maximum solar energy harvesting and future system expansion.

• Dual MPPT with Multiple String Inputs
  Equipped with 2 MPPT trackers and 4 string inputs, optimizing energy production from multiple roof orientations and shading conditions.

• Off-Grid and Hybrid Capability
  Designed primarily for off-grid use, while supporting hybrid operating modes for flexible integration with existing systems.

• Advanced Battery Compatibility
  Compatible with lithium-ion and lead-acid batteries (48V / 51.2V), offering versatile and cost-effective energy storage solutions.

• High Charge and Discharge Performance
  Delivers up to 250A charging and discharging current, enabling rapid battery charging and efficient energy usage.

• Seamless Backup Power (UPS Function)
  Provides uninterrupted power with less than 10ms switching time, ensuring critical devices remain operational during outages.

• Generator Integration
  Dedicated generator port supports automatic start/stop and smart load management for enhanced reliability.

• Parallel Expansion
  Supports up to 16 units in parallel, making it suitable for larger installations and growing energy requirements.

• Smart Energy Management
  Intelligent operating modes help reduce energy costs and improve return on investment.

Performance and Efficiency

• Maximum MPPT Efficiency: 99%
• Maximum Efficiency: 93.5%
• Charge/Discharge Efficiency: 93%
• Power Factor: 0.99 with low harmonic distortion
• Pure Sine Wave Output: Stable and safe for sensitive electronics

Intelligent Monitoring and Control

The Luxpower SNA10000 includes a comprehensive monitoring system with:

• LCD display with RGB indicators
• WiFi, RS485, and CAN communication interfaces
• Real-time system performance tracking and configuration

Built for Reliability and Safety

• Integrated surge and overcurrent protection
• AC short-circuit and voltage protection
• Durable design with smart cooling system
• Low noise operation suitable for residential environments

Technical Specifications

• Rated Output Power: 10kW
• Maximum PV Input Power: Up to 24kW
• PV Voltage Range: 120V – 440V
• Maximum PV Voltage: 480V
• Battery Voltage Range: 38.4V – 60V
• Dimensions: 520 × 580 × 163 mm
• Weight: 32.5 kg
• Protection Rating: IP20

Ideal Applications

• Off-grid solar power systems
• Backup power installations
• Residential energy independence
• Remote or rural electrification
• Small commercial solar systems

Why Choose the Luxpower SNA10000

The Luxpower 10kW Off Grid Single Phase inverter offers a combination of high solar input capacity, fast battery performance, and intelligent energy control, making it a dependable choice for users seeking reliable off-grid power and long-term scalability. With advanced monitoring, strong parallel capability, and efficient energy conversion, it delivers performance you can trust in demanding environments.
