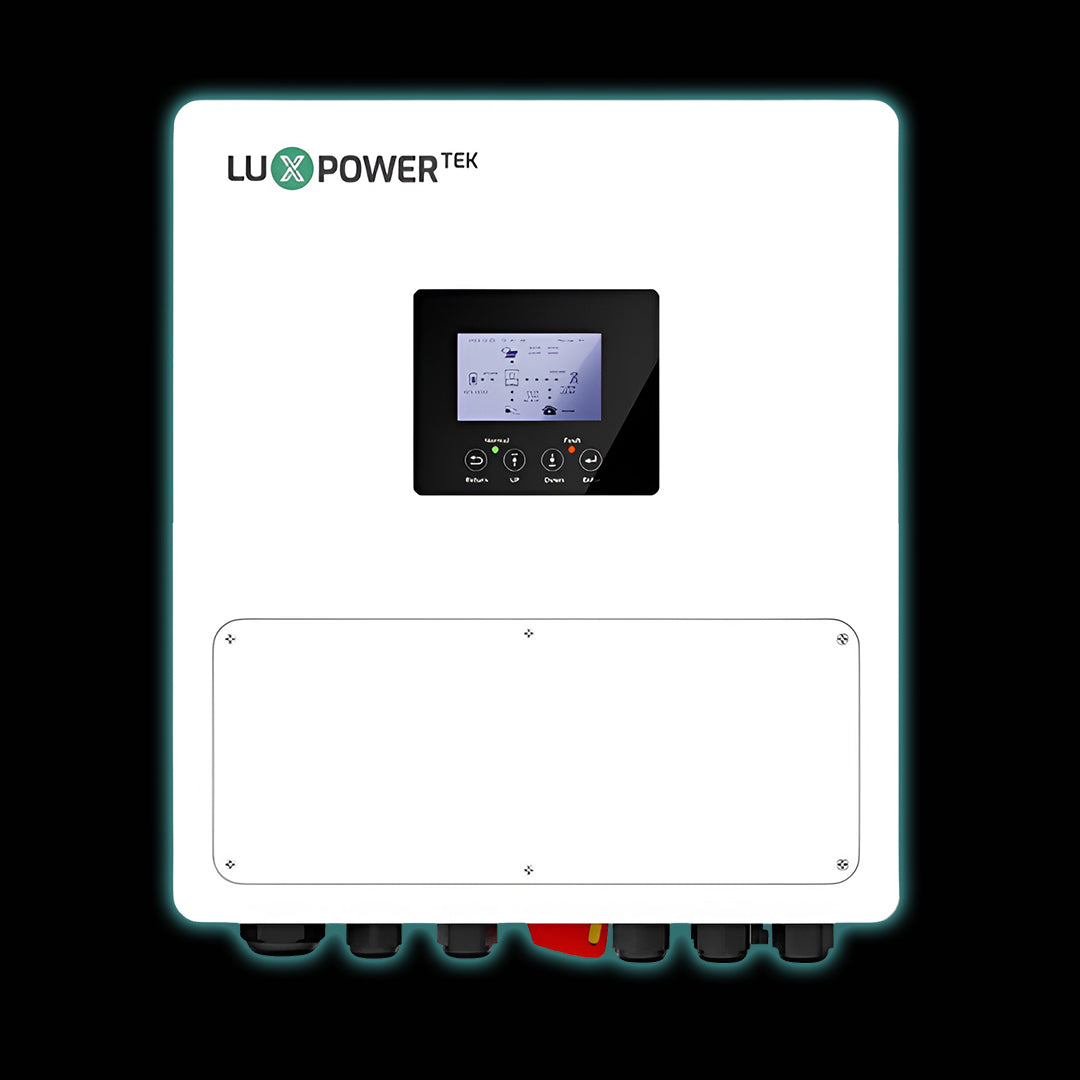

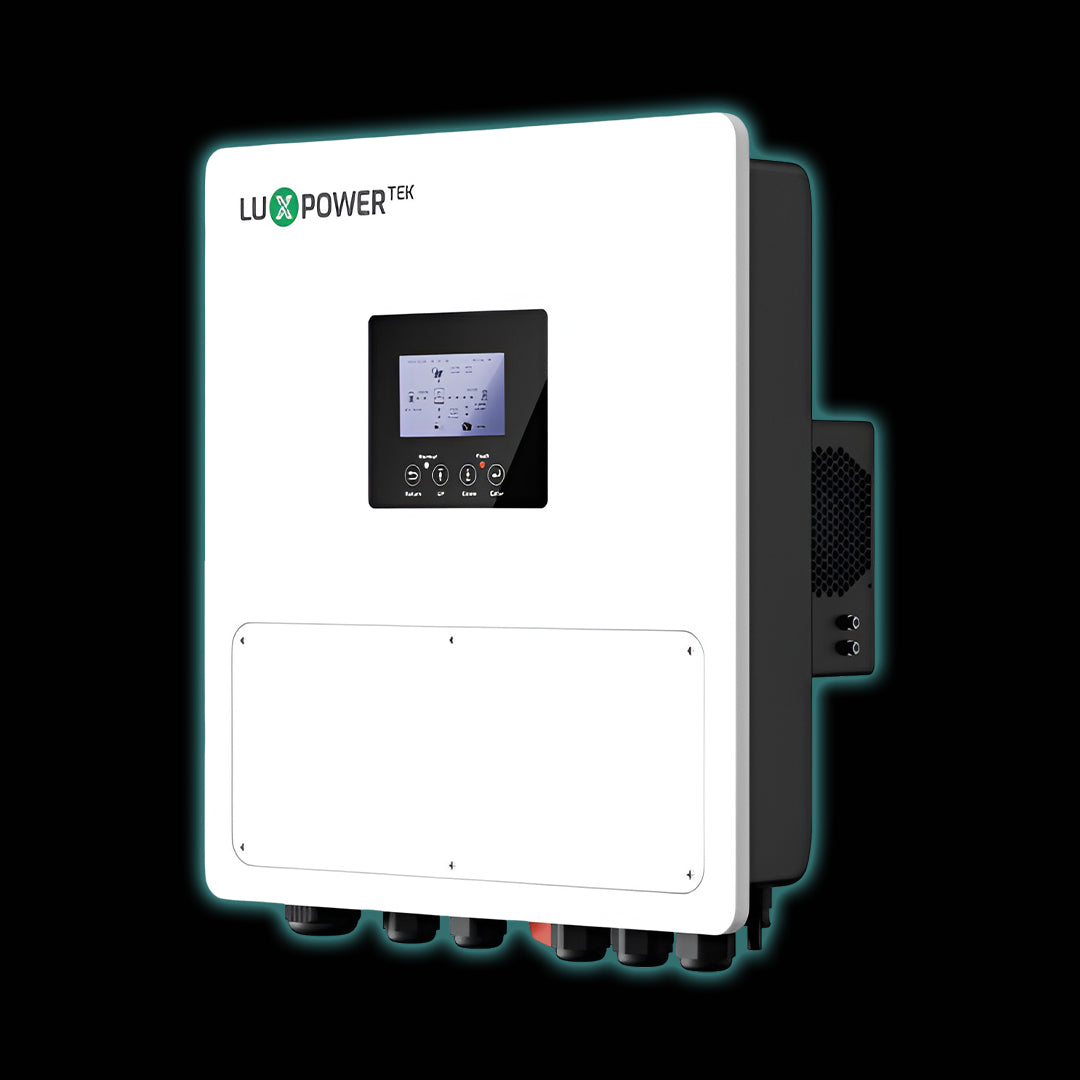

Luxpower 6.5kW Hybrid Inverter SNA PRO-EU 6.5K

The Luxpower SNA PRO-EU 6.5K Hybrid Inverter is a powerful and intelligent single-phase energy management solution designed for residential, commercial, and off-grid solar applications. Delivering 6.5kW of continuous output power and supporting up to 12kW of solar PV input, this advanced hybrid inverter helps maximise solar energy utilisation while providing reliable backup power and battery storage integration.

Built with dual MPPT technology, seamless off-grid switching, and support for both lithium-ion and lead-acid batteries, the SNA PRO-EU 6.5K offers flexibility, scalability, and exceptional performance. Its robust IP65-rated enclosure ensures reliable operation in demanding environments, making it suitable for indoor and outdoor installations.

Key Features

• 6.5kW single-phase hybrid inverter
• Supports up to 12kW solar PV input capacity
• Dual MPPT trackers for maximum solar harvest
• Compatible with lithium-ion and lead-acid batteries
• 140A maximum battery charge/discharge current
• Seamless off-grid and backup power switching
• Generator integration support via dedicated port
• Parallel operation support for up to 16 units
• IP65-rated weather-resistant enclosure
• Remote monitoring and configuration via Wi-Fi
• Real-time system performance tracking
• Pure sine wave output for sensitive electronics
• Smart cooling technology for improved reliability

Technical Specifications

Solar Input

• Maximum PV Input Power: 12,000W
• Number of MPPTs: 2
• Maximum PV Voltage: 500V
• MPPT Voltage Range: 80V - 400V
• Start-up Voltage: 100V
• Maximum PV Input Current: 40A (20A per MPPT)
• Maximum PV Short Circuit Current: 50A (25A per MPPT)

Battery

• Compatible Battery Types: Lithium-Ion and Lead-Acid
• Rated Battery Voltage: 48V
• Battery Voltage Range: 40V - 60V
• Maximum Charge/Discharge Current: 140A
• Maximum Charge/Discharge Power: 6,500W

AC Output

• Rated Output Power: 6,500W
• Rated AC Voltage: 230V
• Rated Frequency: 50/60Hz
• Pure Sine Wave Output
• Maximum Efficiency: 94%
• MPPT Efficiency: 99%
• Surge Power: 13,000W for 5 Seconds
• Switching Time: <10ms (Single Unit)

Dimensions and Weight

• Dimensions (W × H × D): 434 × 384 × 187 mm
• Weight: 16.95 kg
• Protection Rating: IP65 for dust and water resistance

Ideal Applications

• Residential solar systems
• Load shedding and backup power solutions
• Off-grid solar installations
• Hybrid solar and battery storage systems
• Farms and remote properties
• Small business energy management
• Generator-assisted solar solutions

Why Choose the Luxpower SNA PRO-EU 6.5K?

The Luxpower SNA PRO-EU 6.5K combines high solar input capacity, advanced battery management, reliable backup power functionality, and intelligent monitoring in one compact inverter. With support for large solar arrays, multiple battery technologies, generator integration, and scalable parallel operation, it is an ideal solution for users seeking energy independence, lower electricity costs, and uninterrupted power supply.
