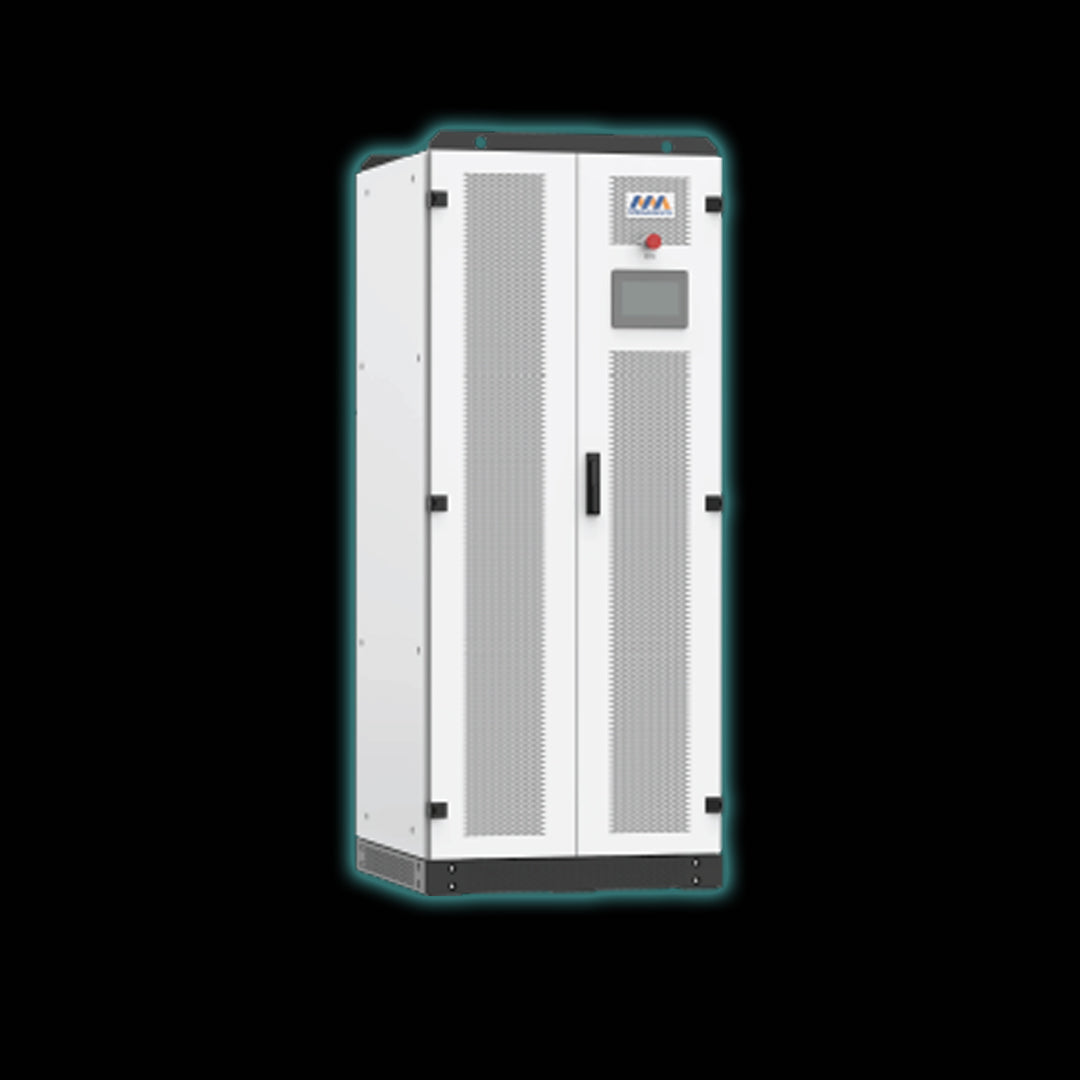

Megarevo 150kW Hybrid Inverter
Megarevo 150kW Hybrid Inverter
Couldn't load pickup availability
CONTACT US FOR RESELLER PRICING
Reliable Power Conversion for Off-Grid and On-Grid Applications
The Megarevo 150kW Hybrid Inverter (MPS0150-G3) is a cutting-edge solution for microgrid systems, combining PV integration, battery storage, and grid connectivity in one compact, modular design. Ideal for villages without electricity, off-grid islands, remote farms, and mining operations, this inverter ensures secure, efficient, and flexible energy management.
Key Features
- Hybrid Design – Supports PV, battery, load, and grid interfaces for complete energy control.
- DC-Coupled Architecture – Achieves 2% higher system efficiency compared to AC-coupled systems.
- Flexible Load Support – Powers both single-phase and three-phase loads simultaneously.
- Scalable & Modular – Easy expansion with PV flexible configuration.
- Remote Monitoring – Built-in port message monitoring and data analysis for simplified maintenance.
- Battery Compatibility – Works with multiple BMS protocols for seamless integration.
- Compact & Service-Friendly – Small footprint, front-door maintenance, and containerized design.
Technical Specifications
- Model: MPS0150-G3
- Rated Power: 150 kW
-
AC On-Grid Output:
- Max Power: 165 kVA
- Voltage: 400V (Range: 320–460V)
- Frequency: 50/60 Hz
- THDi: <3%
-
AC Off-Grid Output:
- Max Power: 165 kVA
- THDu: ≤1% linear; ≤5% nonlinear
- Overload: 110% long-term, 120% for 1 min
-
PV Input:
- Max Voltage: 1,000V
- Max Power: 180 kW
- MPPT Range: 250–850V
-
Battery:
- Voltage Range: 420–850V
- Max Charging Power: 180 kW
- Dimensions: 800 × 800 × 1,950 mm
- Weight: ~1,130 kg
- Ingress Protection: IP20
- Operating Temperature: -30°C to +55°C
- Noise Level: <70 dB
- Cooling: Air Cooling
- Certifications: EN62109, EN62477, EN61000, NRS097-2-1:2017, IEC61727, IEC62116
Applications
- Off-grid villages and islands
- Remote farms and mining sites
- Microgrid and hybrid energy systems
Why Choose Megarevo 150kW Hybrid Inverter?
With high efficiency, robust safety features, and advanced communication interfaces (RS485, CAN, TCP/IP), this inverter is the ultimate solution for businesses and communities seeking reliable, scalable, and sustainable energy conversion.
Megarevo 150kW Hybrid Inverter Specification Document
-
