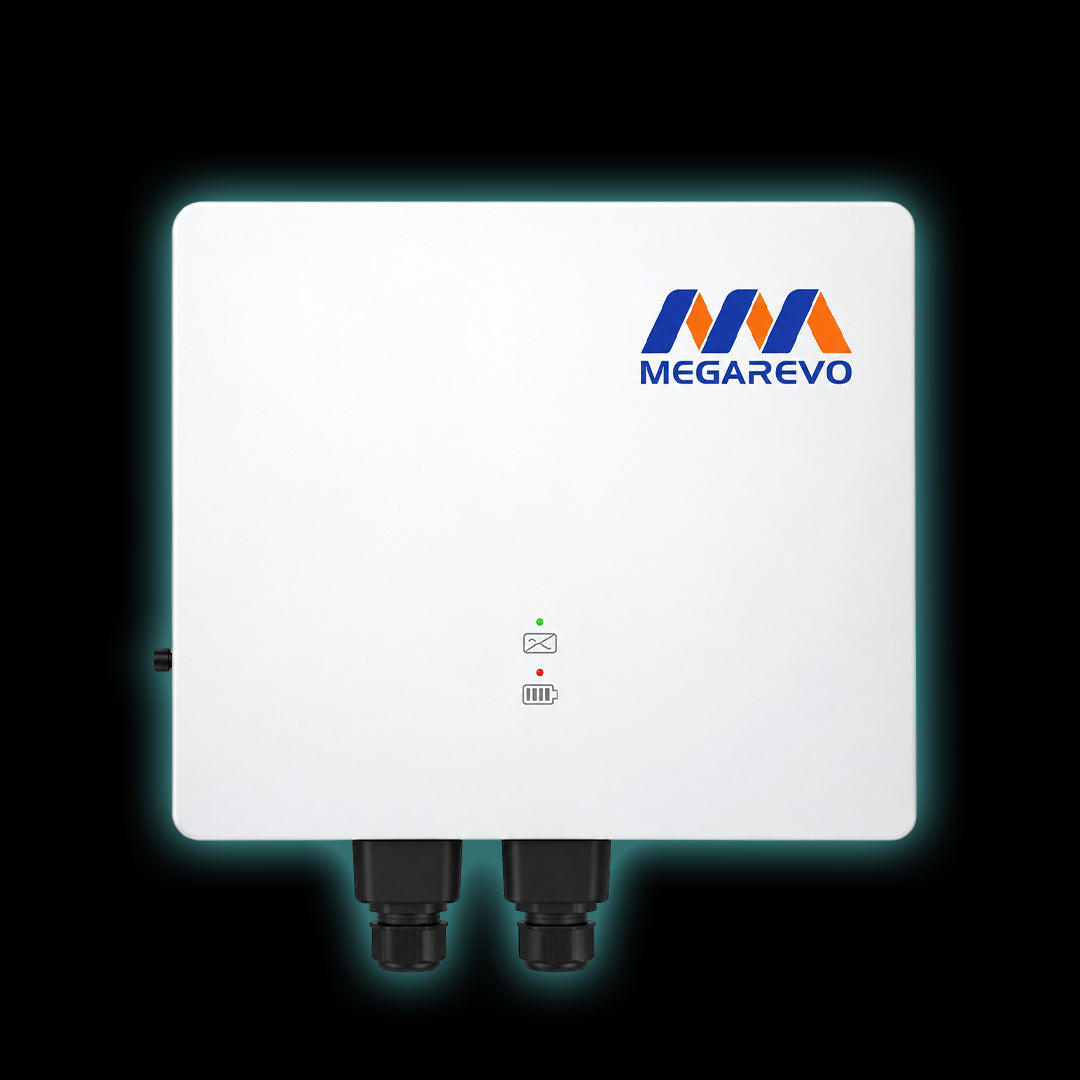

Megarevo 5kW G2 Hybrid Inverter

The Megarevo 5kW G2 Hybrid Inverter is an advanced residential energy storage inverter engineered to maximise solar energy production, reduce electricity costs, and provide dependable backup power. Designed for modern solar installations, this intelligent hybrid inverter seamlessly integrates solar panels, battery storage, and utility power into a single energy management platform. Suitable for residential homes, small businesses, and energy independence projects, the Megarevo G2 delivers exceptional performance, efficiency, and reliability.

Featuring dual MPPT technology and compatibility with the latest high-power solar modules, the inverter optimises solar harvest throughout the day. Its ultra-low start-up voltage allows earlier power generation in the morning and extended production into the evening, increasing overall solar yield. Advanced soft-switching technology further improves efficiency and system performance.

The Megarevo 5kW G2 supports both lithium-ion and lead-acid battery systems, making it a versatile solution for new installations and retrofit projects. Built-in EPS (Emergency Power Supply) functionality provides seamless backup power during grid outages, ensuring critical loads remain operational when utility power is unavailable.

Key Features

• 5kW hybrid solar inverter for residential and light commercial applications.
• Maximum efficiency of up to 98%.
• Dual MPPT design for improved solar generation and system optimisation.
• Compatible with lithium-ion and lead-acid batteries.
• Up to 100A battery charge and discharge current.
• Integrated EPS backup output for uninterrupted power supply.
• Supports AC coupling for system upgrades and expansion.
• Bluetooth, WiFi, RS485 and CAN communication interfaces.
• IP65-rated enclosure suitable for indoor and outdoor installations.
• Natural cooling design with low operating noise below 35dB.
• Compatible with modern 210mm high-power photovoltaic modules.

Technical Specifications

Rated Output Power: 5kW
Maximum PV Input Power: 7.5kW
Maximum PV Input Voltage: 550V
MPPT Voltage Range: 80V - 500V
Start-Up Voltage: 100V
Battery Voltage Range: 40V - 58V
Maximum Charge/Discharge Current: 100A
Maximum Efficiency: 98%
Battery Compatibility: Lithium-ion and Lead-Acid
Ingress Protection: IP65
Operating Temperature: -25°C to +60°C
Noise Level: <35dB
Communication Interfaces: RS485, WiFi, CAN, 4G (Optional), DRM
Dimensions (W × D × H): 454.5 × 220 × 467 mm
Net Weight: 19 kg

Why Choose the Megarevo 5kW G2?

The Megarevo 5kW G2 Hybrid Inverter combines intelligent energy management, industry-leading efficiency, flexible battery integration and reliable backup power in a compact, installer-friendly design. With remote monitoring capabilities, robust IP65 protection and support for high-power solar panels, it is the ideal solution for homeowners seeking greater energy independence, lower electricity bills and uninterrupted power security.
