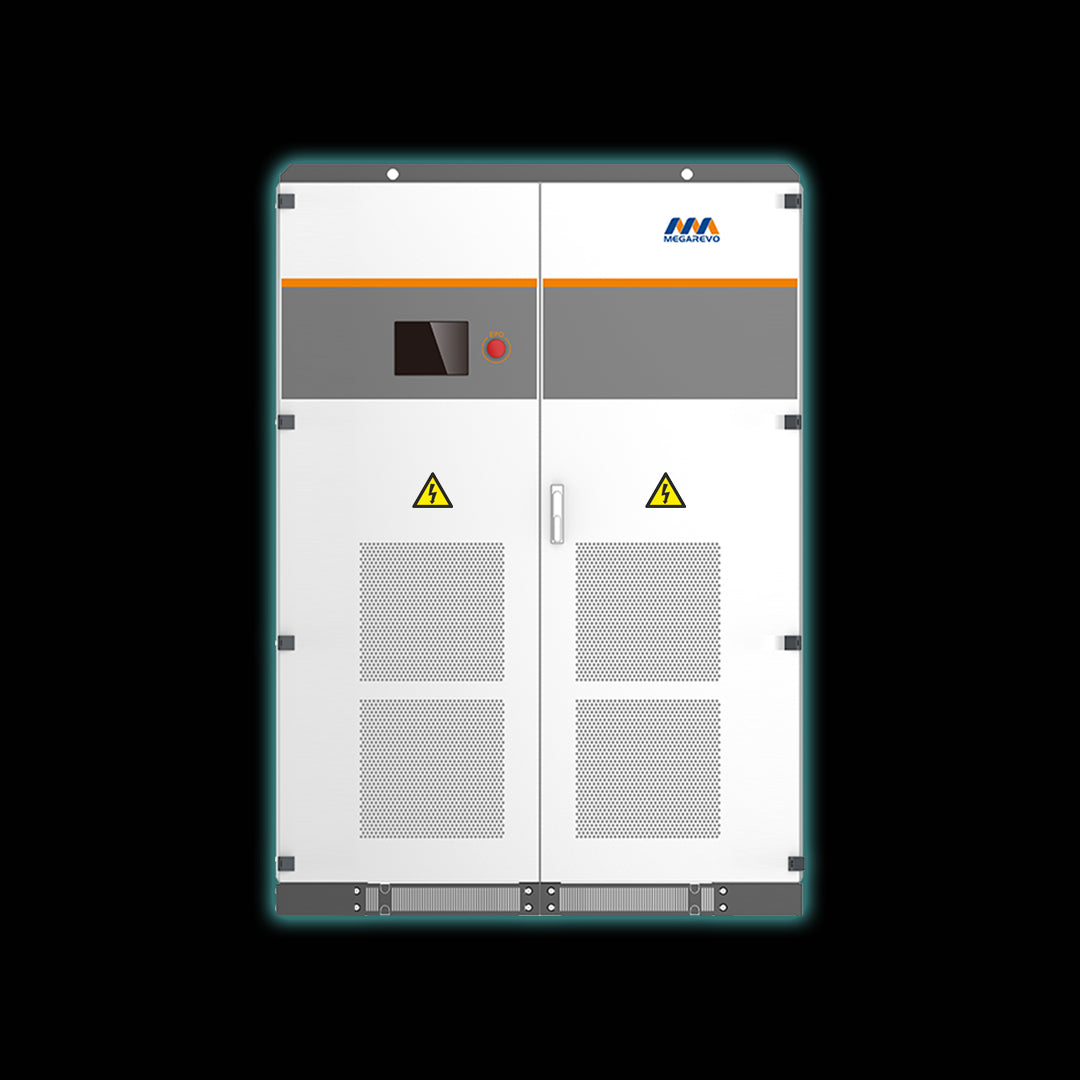

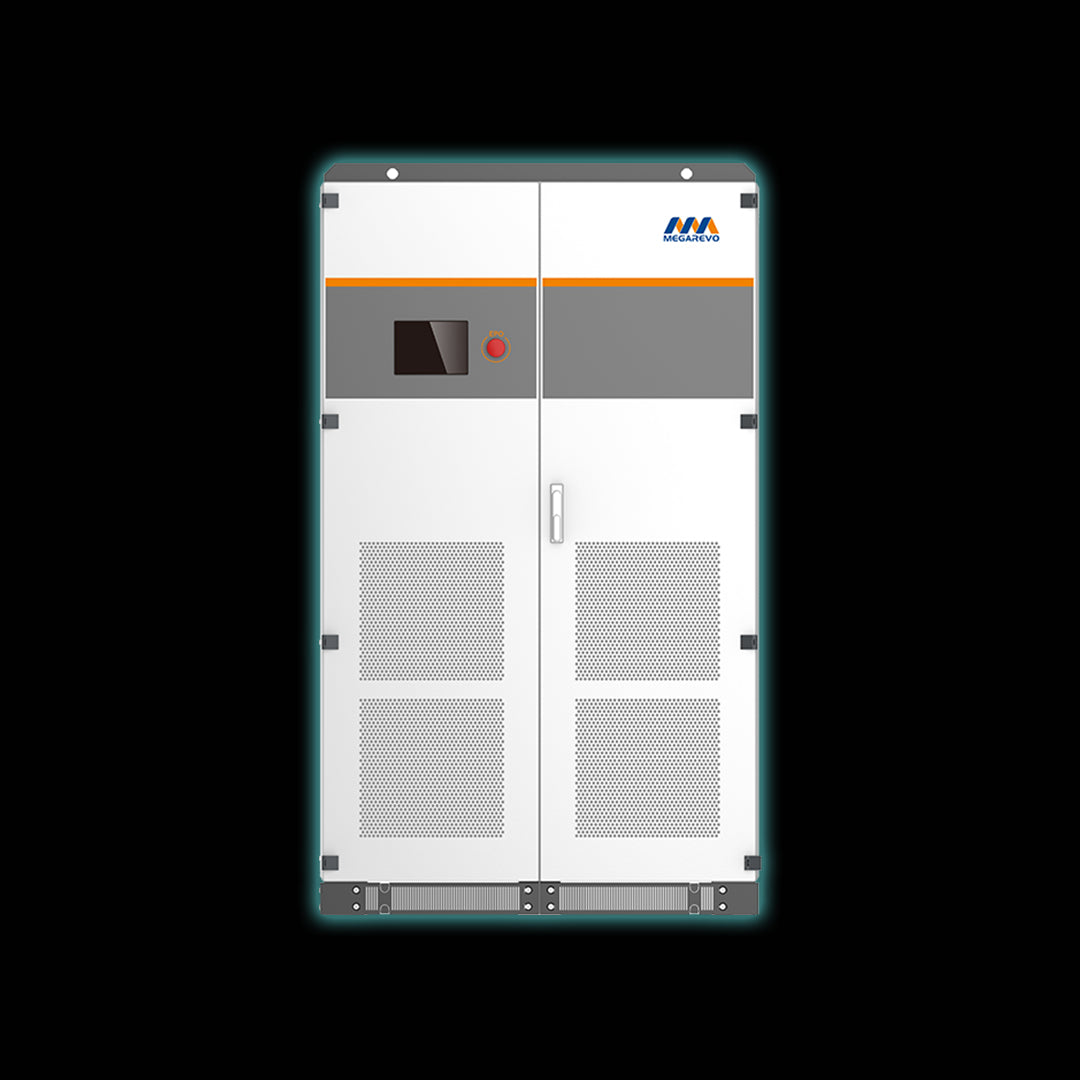

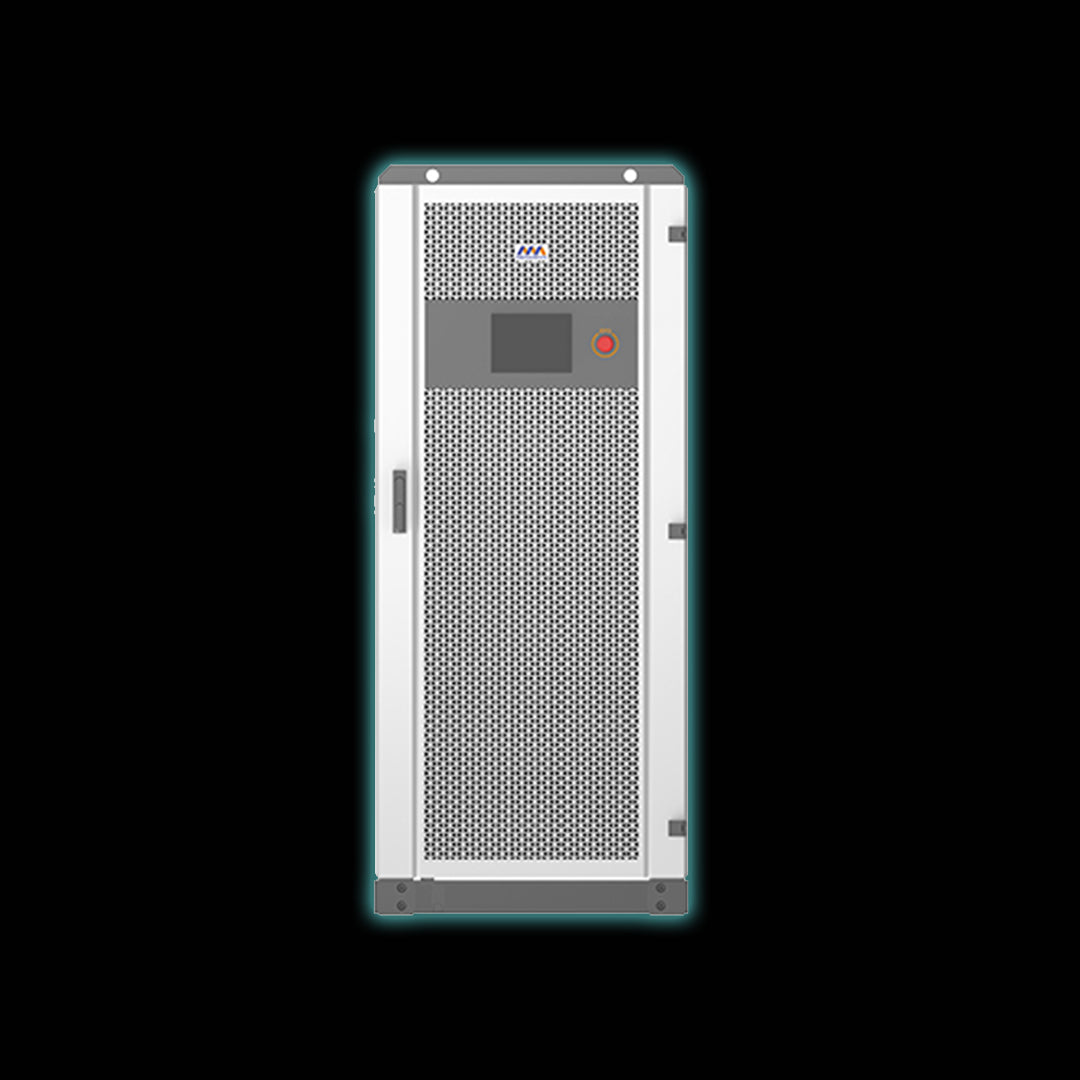

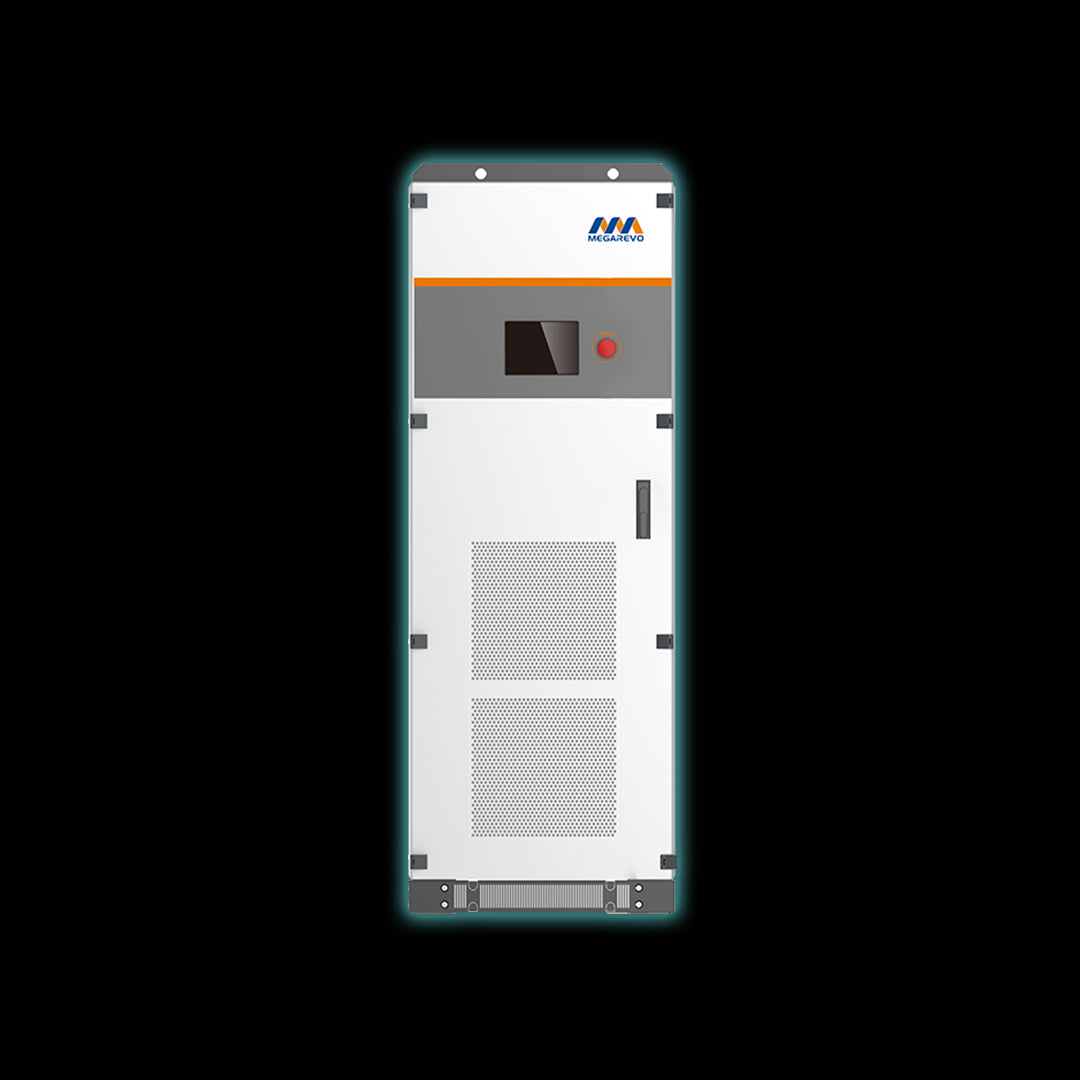

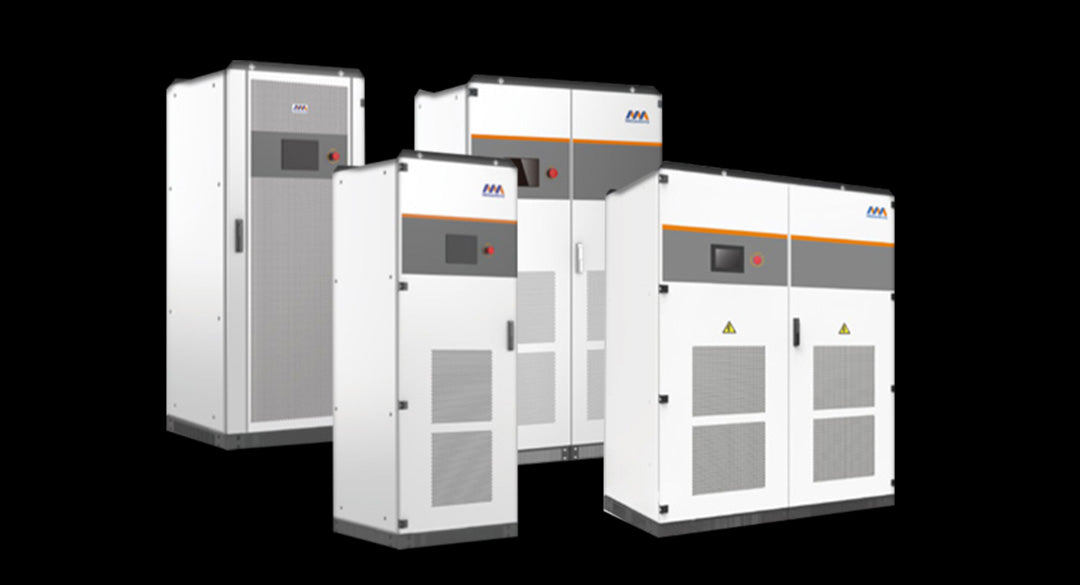

Megarevo Power Conversion System (With Isolation Transformer & STS)

High-Performance Energy Conversion for Commercial & Industrial Applications

The Megarevo Power Conversion System (PCS) is designed for large-scale Commercial & Industrial (C&I) energy storage and PV charging stations, delivering exceptional efficiency and reliability. Featuring a built-in isolation transformer and Static Transfer Switch (STS), this system ensures safe, stable, and flexible power management across diverse scenarios.

Key Features

• Built-in Isolation Transformer – Superior safety and adaptability to impact loads.
• Multiple Operating Modes – Configurable for on-grid and off-grid applications.
• Reactive & Active Power Control – Fully adjustable for optimized performance.
• High Efficiency – Achieves up to 97.5% maximum efficiency.
• Parallel Connection Support – Scale effortlessly with multiple units.
• Redundant Auxiliary Power Design – Ensures continuous operation and reliability.

Technical Specifications

Other Highlights:

• DC Voltage Range: 250V – 850V
• AC Rated Voltage: 400V, 50/60Hz
• Ingress Protection: IP21
• Operating Temperature: -30°C to +55°C
• Certifications: IEC/EN 62109, EN 62477, EN 50549, NRS 097, GB/T standards

Applications

• C&I Energy Storage Systems
• PV Charging Stations
• Microgrid Solutions

Why Choose Megarevo PCS?

With highest power density, automatic on/off-grid switching, and advanced communication interfaces (RS485, CAN, TCP/IP), the Megarevo PCS is the ideal solution for businesses seeking efficient, scalable, and secure energy conversion.

Megarevo PCS Specifications Document
