PowerCo 6mm² TCCAA PV Cable

The PowerCo 6mm² TCCAA PV Cable is a high-performance photovoltaic cable designed for reliable and efficient power transmission in modern solar energy systems. Engineered for durability and long service life, this cable is ideal for connecting solar panels to inverters in residential, commercial, and utility-scale solar installations.

Key Features

• High Conductivity Performance: Manufactured with tinned copper clad aluminum alloy (TCCAA) conductors, offering an optimal balance of conductivity, strength, and cost-efficiency.
• 1500V DC Rated Voltage: Suitable for advanced solar PV systems requiring up to 1500V DC, ensuring compatibility with modern high-voltage installations.
• XLPE Insulation and Sheath: Dual-layer cross-linked polyethylene (XLPE) insulation and outer sheath provide excellent thermal stability, electrical insulation, and environmental resistance.
• Weather and UV Resistant: Designed for long-term outdoor use, with strong resistance to sunlight, moisture, acid, and alkali exposure.
• Flame Retardant and Low Smoke: Meets IEC flame and smoke density standards, making it a safer choice for solar installations.
• Flexible and Durable: Engineered for easy installation and high resistance to mechanical stress, cold bending, and harsh environmental conditions.

Technical Specifications

• Cable Size: 6mm²

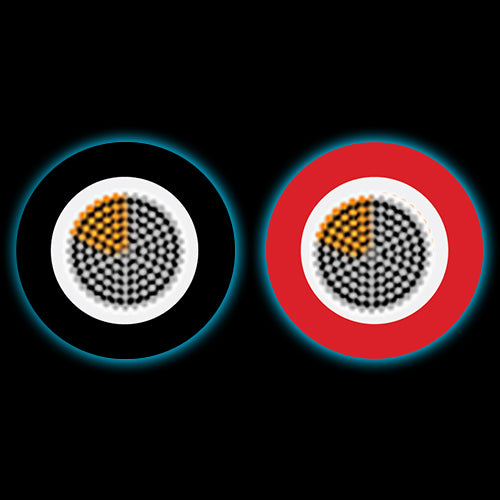

• Conductor Material: Tinned Copper Clad Aluminum Alloy (TCCAA)
• Rated Voltage: 1500V DC
• Rated Temperature: 90°C
• Insulation Material: XLPE (0.70 mm thickness)
• Sheath Material: XLPE (0.80 mm thickness)
• Outer Diameter: 6.3 ± 0.3 mm
• Max Conductor Resistance: 4.69 Ω/km
• Dielectric Withstand: AC 6.5kV for 5 minutes

Compliance and Standards

The PowerCo 6mm² PV cable is manufactured in accordance with internationally recognized standards, ensuring safety, performance, and reliability:

• IEC 62930 photovoltaic cable standards
• IEC 60332-1-2 flame propagation test
• IEC 61034-2 low smoke emission
• IEC 62821-1 halogen-free requirements

Applications

• Solar panel to inverter connections
• Rooftop and ground-mounted photovoltaic systems
• Residential and commercial solar installations
• Utility-scale solar farms

Why Choose PowerCo PV Cable

The PowerCo 6mm² TCCAA PV Cable delivers a dependable solution for solar installations where efficiency, safety, and long-term performance are critical. Its robust construction, high voltage rating, and compliance with global standards make it a trusted choice for professional installers and solar developers.
