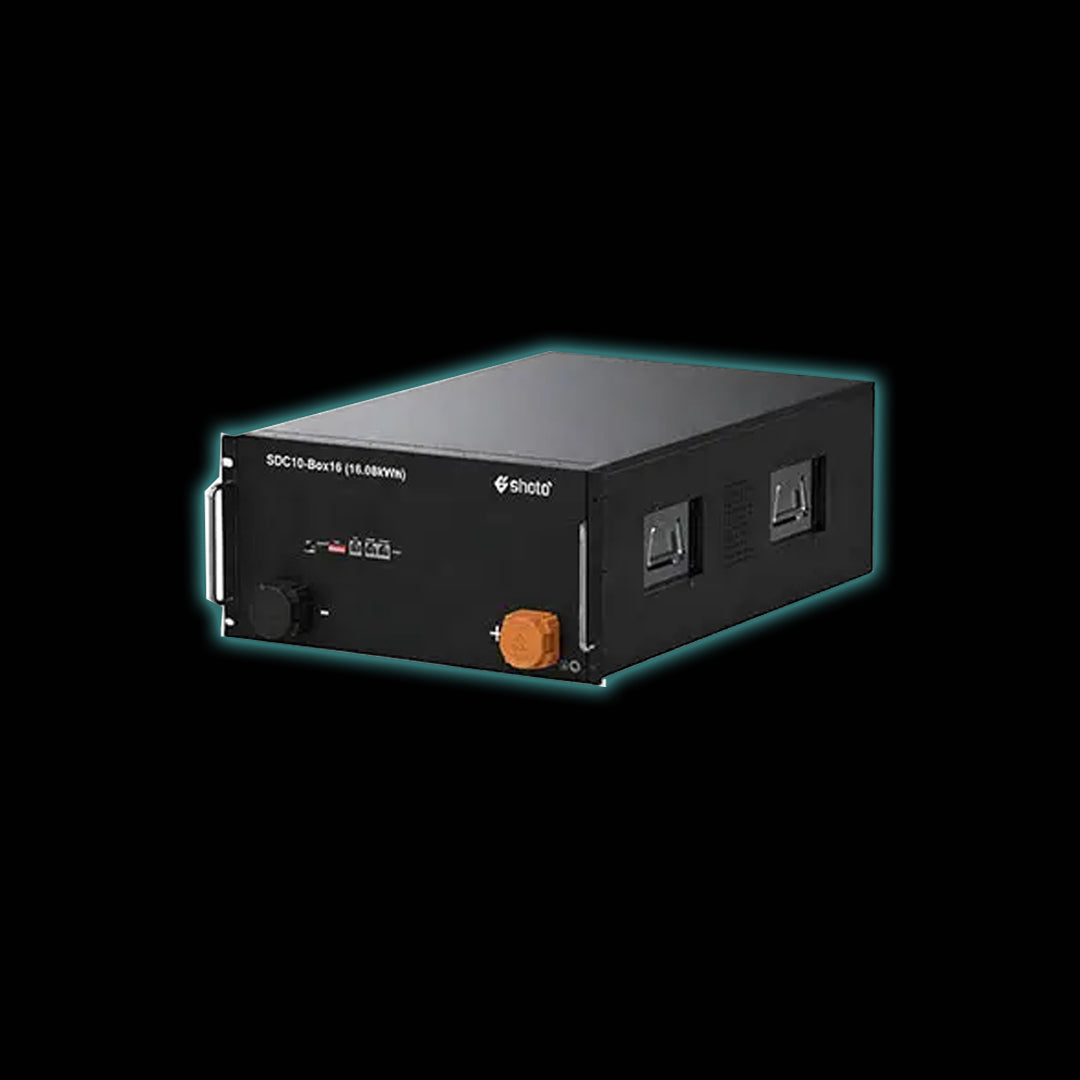

Shoto 16kWh LV Lithium Battery SDC10 Box 16

The Shoto SDC10 Box 16 is a high‑performance 16kWh low‑voltage lithium battery designed for reliable residential and light commercial energy storage applications. Built with advanced LiFePO4 (LFP) cell technology, this battery delivers exceptional safety, long cycle life, and stable performance for solar self‑consumption, backup power, and hybrid energy systems.

With a 51.2V low‑voltage architecture, the SDC10 Box 16 is widely compatible with leading inverter brands, making it an ideal solution for residential solar installations and off‑grid or hybrid systems requiring dependable energy storage.

Key Features and Benefits

High Energy Capacity

• Nominal energy capacity of 16.08kWh
• Usable energy up to 14.47kWh for efficient daily cycling

Advanced Lithium Iron Phosphate Technology

• LiFePO4 chemistry for superior thermal stability and safety
• Long lifespan with up to 6,000+ cycles
• Consistent output and minimal degradation over time

Low Voltage System Compatibility

• Nominal voltage: 51.2V
• Operating voltage range: 45V – 56.4V
• Designed for low‑voltage (LV) energy storage systems

High Power Output

• Maximum output power up to 7.2kW
• Continuous discharge current: 100A
• Peak discharge current: 157A

Scalable and Expandable

• Supports parallel connection of up to 20 units
• Ideal for expanding storage capacity as energy needs grow

Smart Battery Management System (BMS)

• Integrated BMS with protection against over‑charge, over‑discharge, over‑current, and temperature extremes
• Communication interfaces: CAN, RS485
• Accurate state‑of‑charge monitoring and system protection

Safe and Robust Design

• Natural cooling with non‑condensing operation
• Certified for global standards including UN38.3
• Designed for stable operation in demanding environments

Compact Floor‑Mounted Design

• Dimensions: 484 × 700 × 233 mm
• Weight: 113.5 kg
• Clean, minimalist enclosure suitable for indoor installations

Ideal Applications

• Residential solar energy storage
• Hybrid and off‑grid solar systems
• Backup power for homes and small businesses
• Load shifting and energy cost optimisation
• Battery expansion for existing LV inverter systems

Technical Specifications

• Model: SDC10 Box 16
• Nominal Energy: 16.08 kWh
• Usable Energy: 14.47 kWh
• Nominal Voltage: 51.2 V
• Operating Voltage Range: 45 – 56.4 V
• Maximum Output Power: 7.2 kW
• Continuous Discharge Current: 100 A
• Peak Discharge Current: 157 A
• Cycle Life: 6,000+ cycles
• Cooling: Natural cooling
• Installation: Floor‑mounted
• Communication: CAN, RS485
• Maximum Parallel Units: 20
• Certifications: UN38.3

Why Choose the Shoto SDC10 Box 16

The Shoto SDC10 Box 16 delivers a dependable combination of high capacity, long lifespan, inverter compatibility, and proven safety. It is designed for users who want a future‑proof energy storage solution that integrates seamlessly into modern solar systems while maintaining reliability and scalability.

This battery is a strong choice for homeowners and installers seeking a trusted low‑voltage lithium battery with enterprise‑grade performance.
