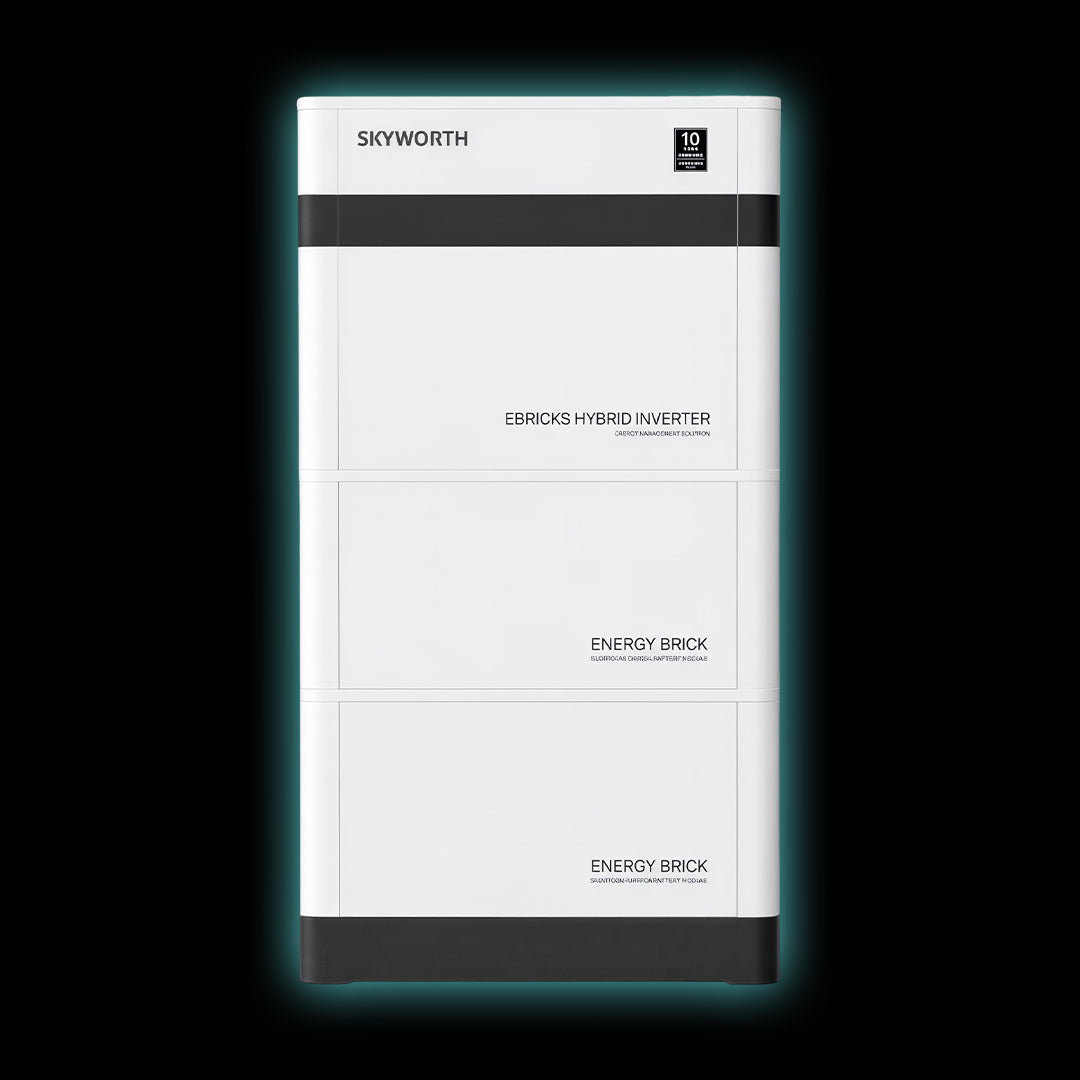

Skyworth EBricks 5kW Hybrid 1P All in One System

The Skyworth EBricks 5kW Hybrid 1P All-in-One System is a premium residential energy storage solution designed to maximize solar self-consumption, provide reliable backup power, and reduce dependence on the electricity grid. Combining a high-performance 5kW single-phase hybrid inverter with an integrated 5.12kWh lithium iron phosphate (LiFePO4/LFP) battery, this sleek all-in-one system delivers efficient energy management for homes and small businesses.

Engineered for modern solar installations, the EBricks system supports up to 9,000Wp of PV input, features dual MPPT trackers, and achieves up to 97.3% inverter efficiency for optimal energy harvest. The intelligent hybrid design automatically manages solar production, battery charging, grid interaction, and backup power supply to ensure uninterrupted operation during load shedding or grid outages. With a seamless transfer time of less than 10ms, critical appliances remain powered without interruption.

The integrated 5.12kWh LFP battery delivers exceptional safety, stability, and longevity, offering over 6,000 charge cycles at 90% depth of discharge. The modular architecture allows future expansion of storage capacity from 5.12kWh up to 15.36kWh, providing flexibility as energy demands grow.

Using the Skyworth EnerConsole App, users can monitor energy production, battery status, load consumption, and grid import/export in real time from anywhere. Multiple operating modes including Self-Use, Feed-In Priority, Backup Mode, Time-Based Control, and Off-Grid Mode enable tailored energy management to suit different household requirements.

Designed with a modern ultra-slim aesthetic, the EBricks All-in-One system offers simplified installation, quiet operation, comprehensive electrical protection, and an IP53-rated enclosure suitable for indoor installations. Certified to international standards and backed by a 10-year warranty, it provides a dependable long-term solar energy storage solution.

Key Features

• 5kW single-phase hybrid inverter
• Integrated 5.12kWh LiFePO4 battery
• Expandable battery storage up to 15.36kWh
• Supports up to 9,000Wp solar PV input
• Dual MPPT solar trackers
• Maximum inverter efficiency of 97.3%
• Less than 10ms UPS-grade backup switching
• Over 6,000 battery life cycles
• Smart monitoring via EnerConsole App
• Self-use, backup, feed-in, off-grid and time-based control modes
• IP53 indoor-rated enclosure
• Comprehensive electrical protection systems
• 10-year manufacturer warranty

Ideal Applications

• Residential solar backup systems
• Load shedding protection
• Self-consumption solar installations
• Energy cost reduction
• Small business backup power
• Hybrid solar and battery storage systems
