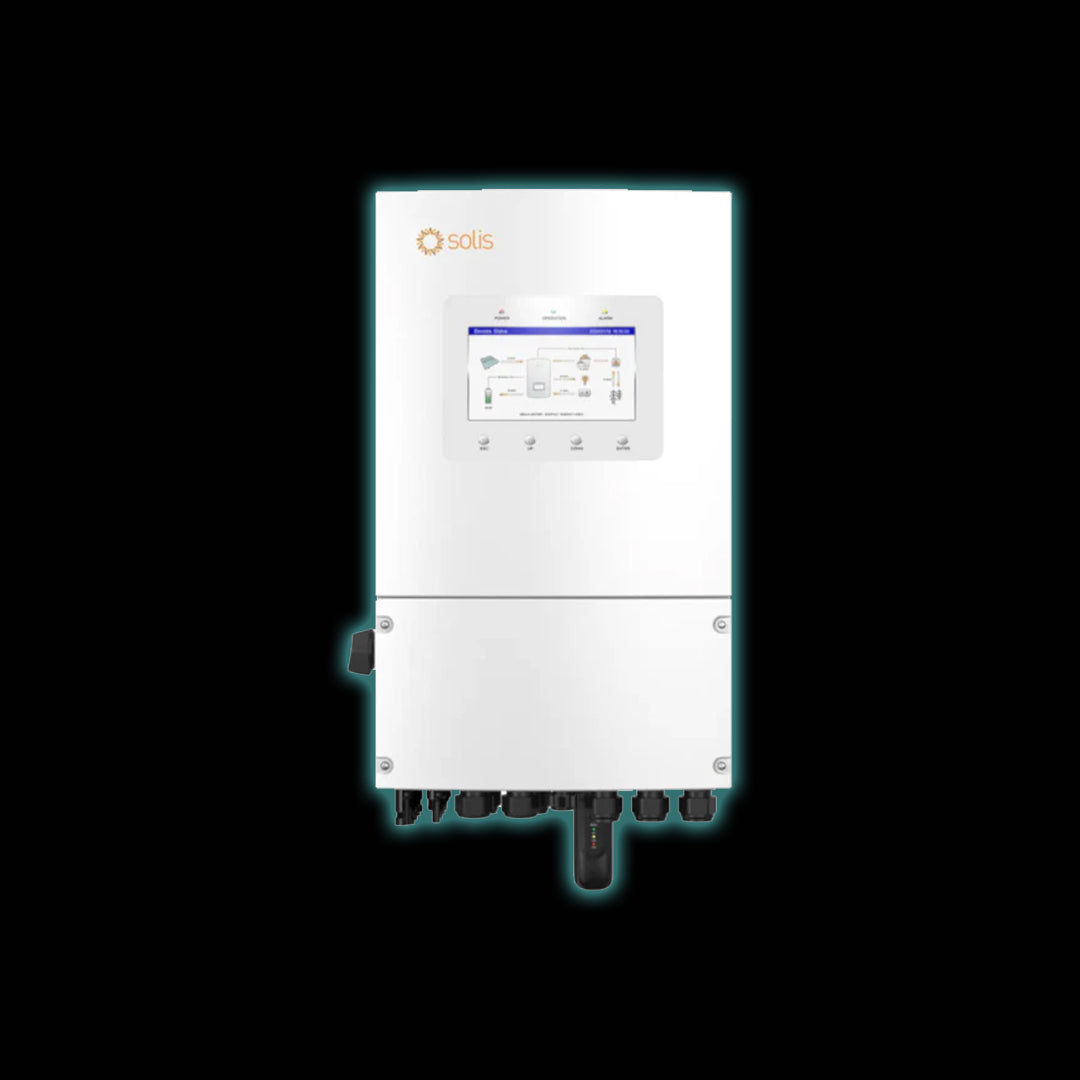

Solis S6 Plus 6kW Inverter

The Solis S6 is a high‑performance 6kW single‑phase low‑voltage hybrid inverter designed for residential and light commercial solar energy storage systems. Manufactured by Ginlong Technologies, it integrates solar PV, battery storage, grid supply, and generator input into one intelligent, future‑ready solution.

With advanced energy management features, robust backup power capability, and high conversion efficiency, the Solis S6 is ideal for modern homes seeking energy independence and reliable power continuity.

Powerful Hybrid Performance

The Solis S6 supports fast battery charge and discharge currents up to 190A, making it suitable for high‑demand applications such as peak shaving and backup power. It is available in 5 kW, 6 kW, and 8 kW models to suit a wide range of system sizes.

Its intelligent hybrid design allows seamless interaction between solar, battery, grid, and generator power sources, optimising energy usage while reducing grid dependence.

Integrated Backup Power with UPS Function

The inverter features a built‑in backup port with automatic UPS switching in less than 4 milliseconds, ensuring uninterrupted power to essential loads during outages. It also supports 200% surge power for up to 10 seconds, enabling stable operation of appliances with high start‑up currents.

Battery and Generator Ready

The Solis S6 is compatible with lithium‑ion and lead‑acid batteries operating within a 40–60 V range and includes advanced battery protection features. Generator connectivity is supported with automatic generator on/off control, making it suitable for hybrid systems in areas with unstable or limited grid supply.

Intelligent Energy Management

With six customisable charge and discharge time settings, the inverter allows flexible scheduling to maximise self‑consumption and minimise electricity costs. It supports:

• Self‑use mode
• Peak shaving
• Generator‑assisted operation
• Intelligent AC coupling for retrofitting existing grid‑tied solar systems

The Solis S6 also supports parallel operation in both single‑phase and three‑phase configurations, allowing system expansion up to 48 kW total capacity.

High Efficiency and Reliability

• Maximum efficiency up to 97.5%
• EU efficiency up to 96.5%
• Total harmonic distortion below 2%

The inverter is designed for long‑term reliability, with an IP66‑rated enclosure, wide operating temperature range from ‑40°C to +60°C, and advanced protection features including AFCI and ground fault monitoring.

Monitoring and Communication

An integrated LCD display with Bluetooth and mobile app support allows real‑time monitoring and system control. Communication interfaces include RS485 and CAN, with optional Wi‑Fi, GPRS, or LAN connectivity for remote access.

Physical Specifications

• Dimensions (W × H × D): 335 × 560 × 227 mm
• Weight:
  • 5 kW model: 21.6 kg
  • 6 kW model: 22.2 kg
  • 8 kW model: approximately 22 kg

Its compact and lightweight design makes installation easy for residential and commercial applications.

Key Features at a Glance

• Single‑phase hybrid solar inverter
• Built‑in UPS‑grade backup output
• Up to 190A battery charge/discharge current
• Lithium‑ion and lead‑acid battery compatible
• Generator input with automatic control
• Parallel operation up to 48 kW
• AC‑coupling support for system upgrades
• IP66 protection with natural convection cooling

Ideal Applications

• Residential solar and battery storage systems
• Homes requiring reliable backup power
• Hybrid solar systems with generator support
• Upgrading existing grid‑tied solar installations
