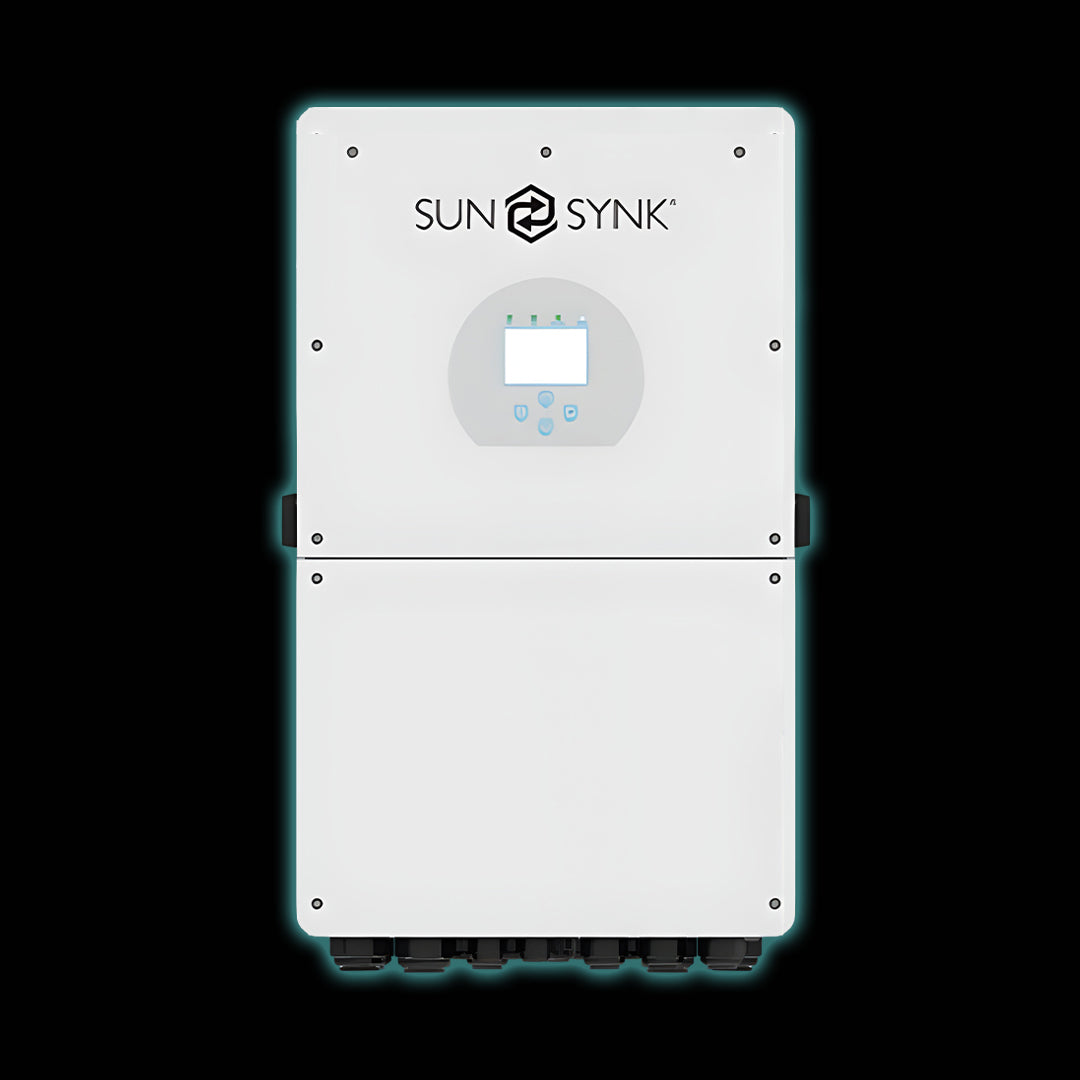

Sunsynk 16kW Max Single Phase Hybrid Inverter

The Sunsynk 16kW Single Phase Hybrid Inverter is a premium energy management solution designed for large residential, commercial, agricultural, and backup power applications. Combining solar generation, battery storage, grid connectivity, and generator support in a single intelligent platform, this powerful hybrid inverter helps maximize energy independence while reducing electricity costs. With an impressive 16kW output capacity and support for advanced energy storage systems, the Sunsynk MAX is ideal for users who require reliable, high-performance power management.

Built to handle demanding energy requirements, the Sunsynk 16kW Hybrid Inverter supports both lithium-ion and lead-acid batteries, with intelligent BMS communication for seamless integration and optimal battery performance. The inverter offers a maximum solar PV input of 20.8kW and features three independent MPPT trackers, allowing greater flexibility in solar panel design and improved energy harvesting across multiple roof orientations.

With a maximum efficiency of 97.6% and MPPT efficiency exceeding 99%, the Sunsynk 16kW ensures that more of your solar energy is converted into usable power. Its robust design supports grid-tied, hybrid, off-grid, and backup power applications, making it a versatile solution for a wide range of installations.

Advanced safety features include PV arc fault detection, surge protection, anti-islanding protection, reverse polarity protection, insulation monitoring, overcurrent protection, and short-circuit protection. The IP65-rated enclosure allows for indoor or outdoor installation, while CAN and RS485 communication interfaces ensure compatibility with leading battery storage systems.

Key Features

• 16kW single-phase hybrid inverter.
• Supports lithium-ion and lead-acid batteries.
• Maximum PV input power: 20,800W.
• Three MPPT trackers for maximum solar yield.
• Maximum PV input voltage: 500V.
• 290A maximum charge and discharge current.
• Up to 97.6% efficiency.
• 100A continuous AC passthrough capability.
• Grid-tied, hybrid and off-grid operation.
• IP65-rated weather-resistant design.
• CAN and RS485 battery communication.
• Comprehensive built-in protection systems.
• 5-year manufacturer warranty.

Technical Specifications

• Rated Output Power: 16,000W.
• Battery Voltage Range: 40V to 60V.
• Maximum PV Input Power: 20,800W.
• Maximum PV Input Voltage: 500V.
• MPPT Voltage Range: 150V to 425V.
• Number of MPPTs: 3.
• Maximum Charge Current: 290A.
• Maximum Discharge Current: 290A.
• Maximum Efficiency: 97.6%.
• Dimensions: 464 × 763 × 282 mm (W × H × D, excluding connectors and brackets).
• Net Weight: 52 kg.
• Gross Weight: 60 kg.
• Protection Rating: IP65.
• Communication Ports: CAN, RS485.
• Installation: Wall-mounted.
• Warranty: 5 Years.

The Sunsynk 16kW Single Phase Hybrid Inverter is one of the most powerful hybrid inverters in its class, delivering exceptional solar performance, advanced battery integration, intelligent energy management, and dependable backup power for modern energy systems. Its flexibility, efficiency, and scalability make it an excellent choice for large homes, businesses, farms, and energy storage projects.
