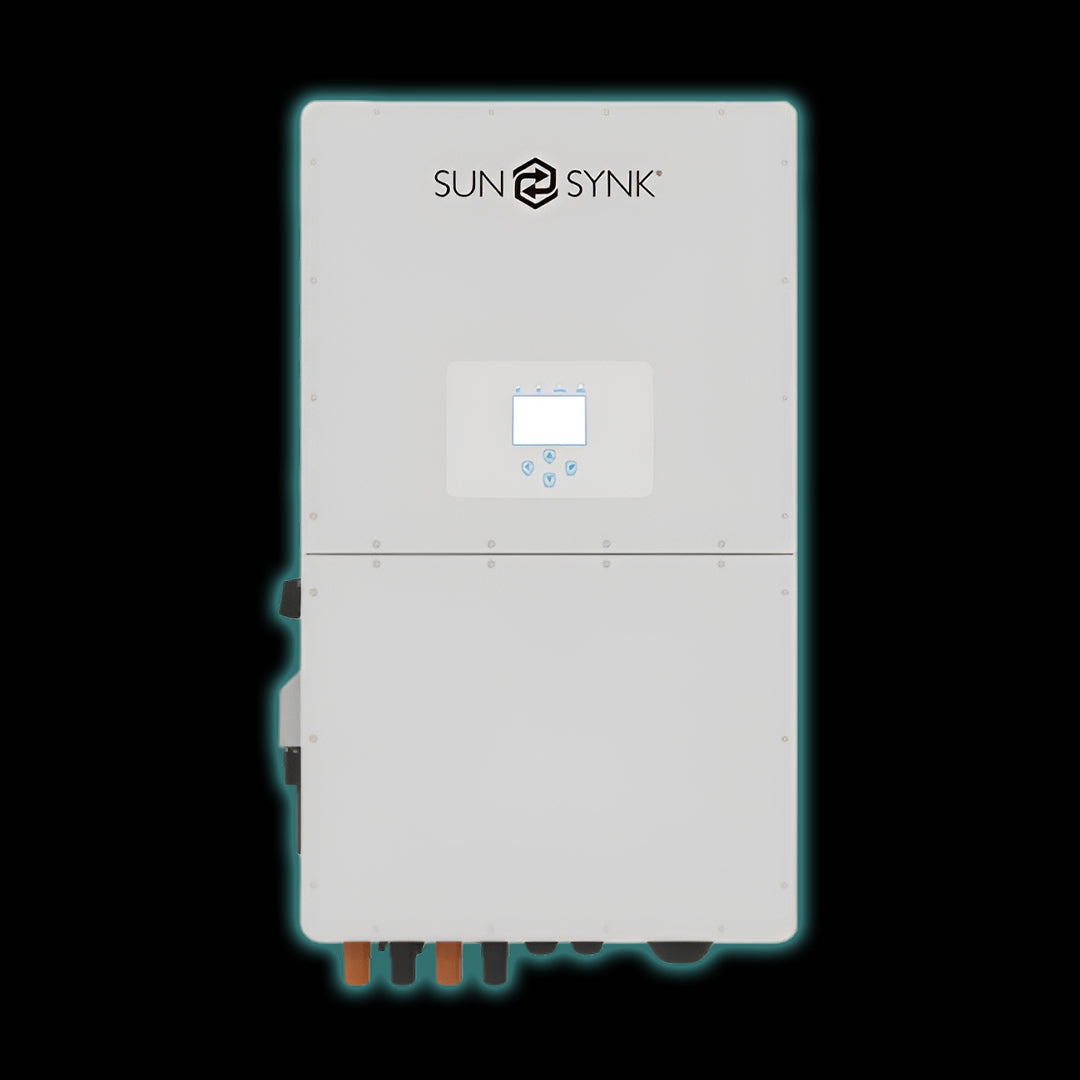

Sunsynk 50kW Three Phase Hybrid Inverter

The Sunsynk 50kW Three Phase Hybrid Inverter is a high-capacity commercial and industrial solar inverter designed to deliver exceptional energy efficiency, intelligent power management, and reliable backup power. Engineered for large-scale solar PV and battery storage systems, this advanced hybrid inverter seamlessly integrates solar panels, high-voltage lithium batteries, generators, and the utility grid into one intelligent energy platform.

Designed for factories, warehouses, office parks, agricultural operations, shopping centres, hotels, schools, and large commercial facilities, the Sunsynk 50kW Hybrid Inverter maximises solar self-consumption while reducing electricity costs and ensuring energy security during grid interruptions.

Key Features

• 50kW three-phase hybrid inverter for commercial and industrial applications.
• Supports high-voltage lithium-ion battery systems from 160V to 800V.
• Maximum PV input power of 65,000W for large-scale solar installations.
• Four MPPT trackers for maximum solar energy harvesting.
• Maximum DC input voltage of 1000V.
• Grid-tied, off-grid, and backup power functionality.
• Peak off-grid output capability of 1.5 times rated power for 10 seconds.
• Up to 97.6% maximum efficiency and over 99% MPPT efficiency.
• IP65-rated enclosure for indoor and outdoor installations.
• Advanced protection against surges, reverse polarity, short circuits, and grid disturbances.
• CAN and RS485 communication for seamless battery integration and monitoring.

Technical Specifications

• Model: SUNSYNK-50K-SG01HP3-EU-BM4
• Rated Output Power: 50,000W (50kW)
• Maximum AC Output Power: 55,000W
• Maximum PV Input Power: 65,000W
• Battery Voltage Range: 160V to 800V
• Maximum Charging Current: 50A + 50A
• MPPT Voltage Range: 150V to 850V
• Maximum DC Input Voltage: 1000V
• Maximum Efficiency: 97.6%
• MPPT Efficiency: Greater than 99%
• Maximum Continuous AC Pass-Through: 200A
• Protection Rating: IP65
• Communication: CAN, RS485
• Installation Type: Wall Mounted
• Operating Temperature: -40°C to +60°C
• Warranty: 5 Years

Dimensions and Weight

• Dimensions (W × H × D): 527 × 894 × 294 mm
• Net Weight: 84.9 kg
• Gross Weight: 100.5 kg

Why Choose the Sunsynk 50kW Three Phase Hybrid Inverter?

The Sunsynk 50kW Three Phase Hybrid Inverter provides businesses with a future-ready energy solution that combines solar power generation, battery energy storage, and intelligent load management in a single device. Its high PV input capacity, advanced battery compatibility, and industry-leading efficiency make it an ideal choice for organisations seeking lower operating costs, improved energy resilience, and long-term sustainability.
