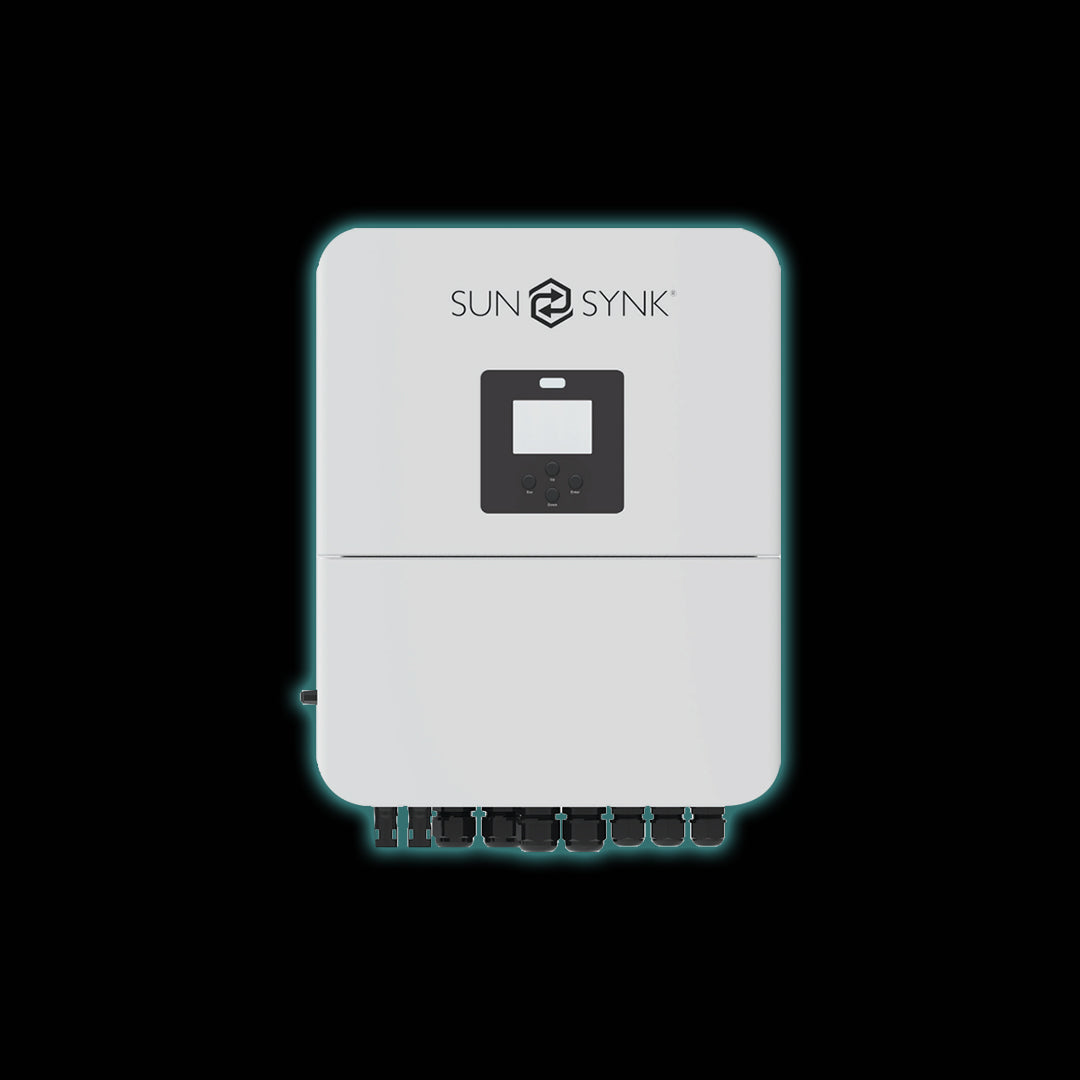

Sunsynk 5kW LV Hybrid Compact Inverter

The Sunsynk 5kW LV Hybrid Compact Inverter is a powerful and space-efficient energy solution designed for modern residential solar systems. Combining high performance with a compact design, this inverter delivers reliable hybrid functionality by intelligently managing solar generation, battery storage, and grid power.

Built for flexibility and durability, the 5kW LV Hybrid Compact inverter supports both lithium-ion and lead-acid batteries, making it ideal for new installations or upgrades. Its advanced hybrid capabilities ensure maximum solar utilisation, reduced electricity bills, and uninterrupted power during outages.

Key Features

• 5kW single phase hybrid inverter for residential solar systems
• 48V low voltage battery compatibility with lithium-ion and lead-acid batteries
• Compact design for easy installation and reduced space requirements
• Dual MPPT inputs for optimised solar energy harvesting
• High efficiency up to 97.6 percent for maximum energy conversion
• UPS functionality with seamless switchover during power outages
• Intelligent battery management with automatic BMS communication
• Advanced safety protections including overvoltage, short circuit, and thermal protection
• IP65 rated enclosure suitable for indoor and outdoor installation
• Quiet natural cooling design with low noise operation

Technical Specifications

• Rated Output Power: 5000W
• Maximum AC Power: 5500VA
• Battery Voltage Range: 40V to 60V
• Maximum Charge/Discharge Current: 120A
• Maximum PV Input Power: 8000W
• Maximum PV Access Power: 10000W
• MPPT Voltage Range: 150V to 425V
• Number of MPPT Trackers: 2
• Output Voltage: 220V / 230V single phase
• Frequency: 50Hz / 60Hz
• Peak Off-Grid Output: 2 times rated power (10 seconds)
• Maximum Efficiency: 97.6 percent
• MPPT Efficiency: greater than 99 percent
• Operating Temperature: -40°C to +60°C
• Protection Rating: IP65
• Warranty: 5 years

Ideal Applications

• Residential solar power systems
• Backup power and load shedding solutions
• Off-grid and hybrid solar installations
• Energy cost reduction and increased self-consumption
• Compact installations with limited space

Why Choose the Sunsynk 5kW LV Hybrid Compact

The Sunsynk 5kW Hybrid Compact inverter is designed to deliver reliable and efficient performance in a smaller footprint. Its dual MPPT system ensures optimal solar production, while intelligent hybrid functionality allows seamless integration between solar, battery, and grid power.

With robust protection features, high efficiency, and flexible battery compatibility, this inverter provides a dependable and scalable energy solution for homes and small businesses looking to maximise energy independence.
