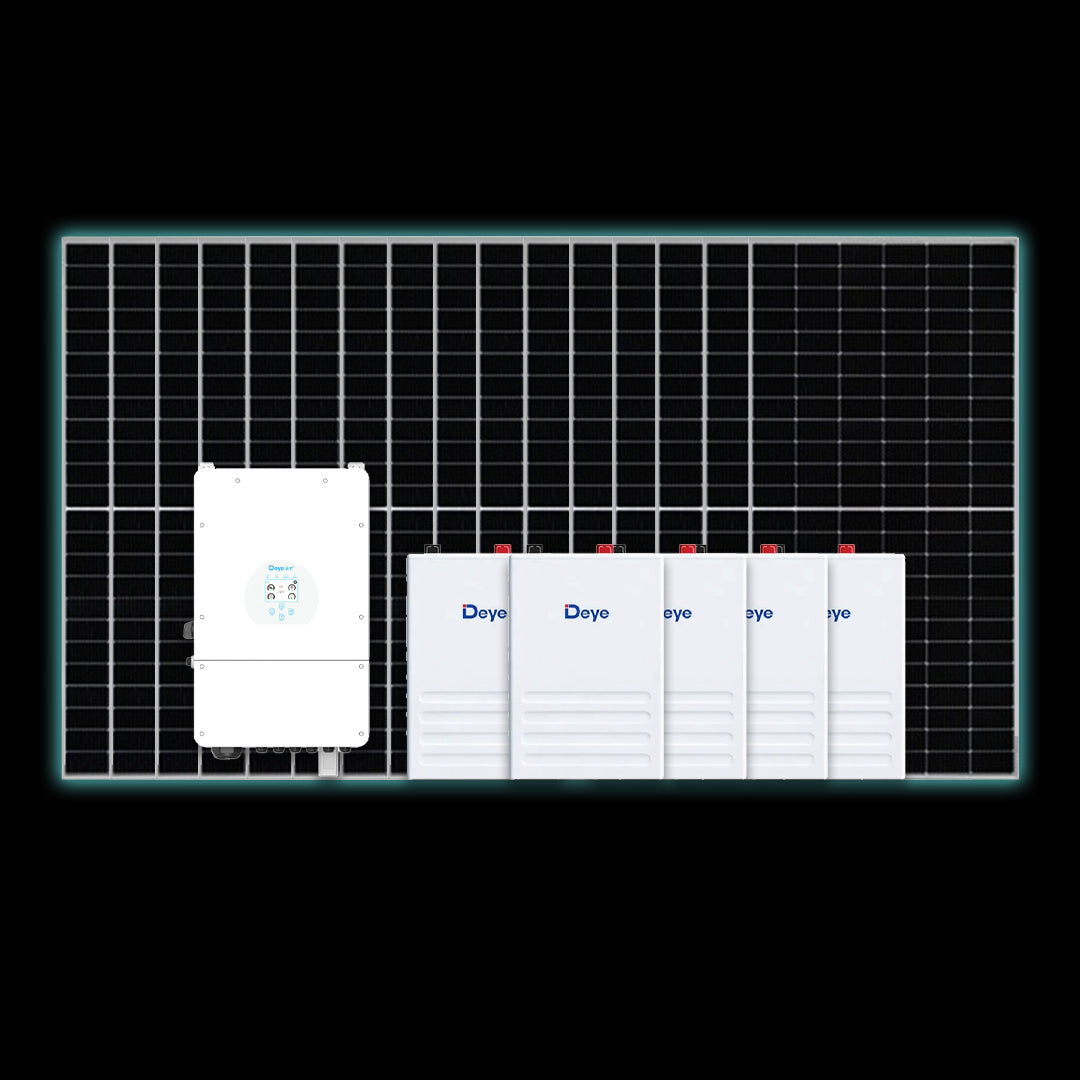

12kW Solar System – Deye 3-Phase Hybrid Inverter with Battery Storage and 605W JA Bifacial Panels

Power your home or business with a high-performance 12kW solar energy system designed for efficiency, scalability, and energy independence. This premium solution combines a Deye 12kW three-phase hybrid inverter, advanced lithium battery storage, and high-output JA Solar bifacial panels to deliver reliable on-grid and off-grid performance.

Ideal for residential, commercial, and industrial applications, this system ensures optimized energy production, intelligent load management, and long-term savings.

• Rated output power: 12kW with up to 13.2kW peak AC output
• Supports both grid-tied and off-grid operation with seamless switching
• Maximum efficiency up to 97.6%
• Dual MPPT trackers for optimal solar generation
• Parallel capability: up to 10 inverters for system expansion
• Intelligent battery management with RS485 and CAN communication
• 100% unbalanced output across all three phases
• Built-in protections including anti-islanding, surge protection, and overcurrent safety
• Wide operating temperature range from -40°C to 60°C

This inverter is engineered for reliability and flexibility, making it suitable for complex energy environments including backup power, hybrid systems, and load balancing.

• Each battery capacity: 5.12kWh (LiFePO4 chemistry)
• Total storage capacity: 25.6kWh usable energy
• Long cycle life exceeding 6000 cycles
• High efficiency with up to 90% depth of discharge
• Scalable design supporting multiple units in parallel
• Advanced Battery Management System (BMS) with active protection
• Operating temperature range: -20°C to 55°C
• Wall-mounted or stackable installation options

These batteries provide reliable backup power and energy storage, ensuring uninterrupted electricity during outages and maximum self-consumption of solar power.

• Panel power output: 605W per module
• Total solar array capacity: 9.68kW DC
• Module efficiency up to 22.4%
• Bifacial double-glass design for increased energy yield
• Enhanced performance in low-light conditions
• Reduced degradation: approximately 1% first year, 0.4% annually thereafter
• Long-term performance warranty of up to 30 years

Bifacial technology captures sunlight from both sides, boosting overall system generation and improving return on investment.

System Benefits

• Complete hybrid solar solution with battery backup
• Reduce electricity costs and dependence on the grid
• Maintain power during load shedding or outages
• Smart energy management with real-time monitoring
• Expandable design for future energy needs
• Compatible with generator integration and existing solar systems
• High-quality components
