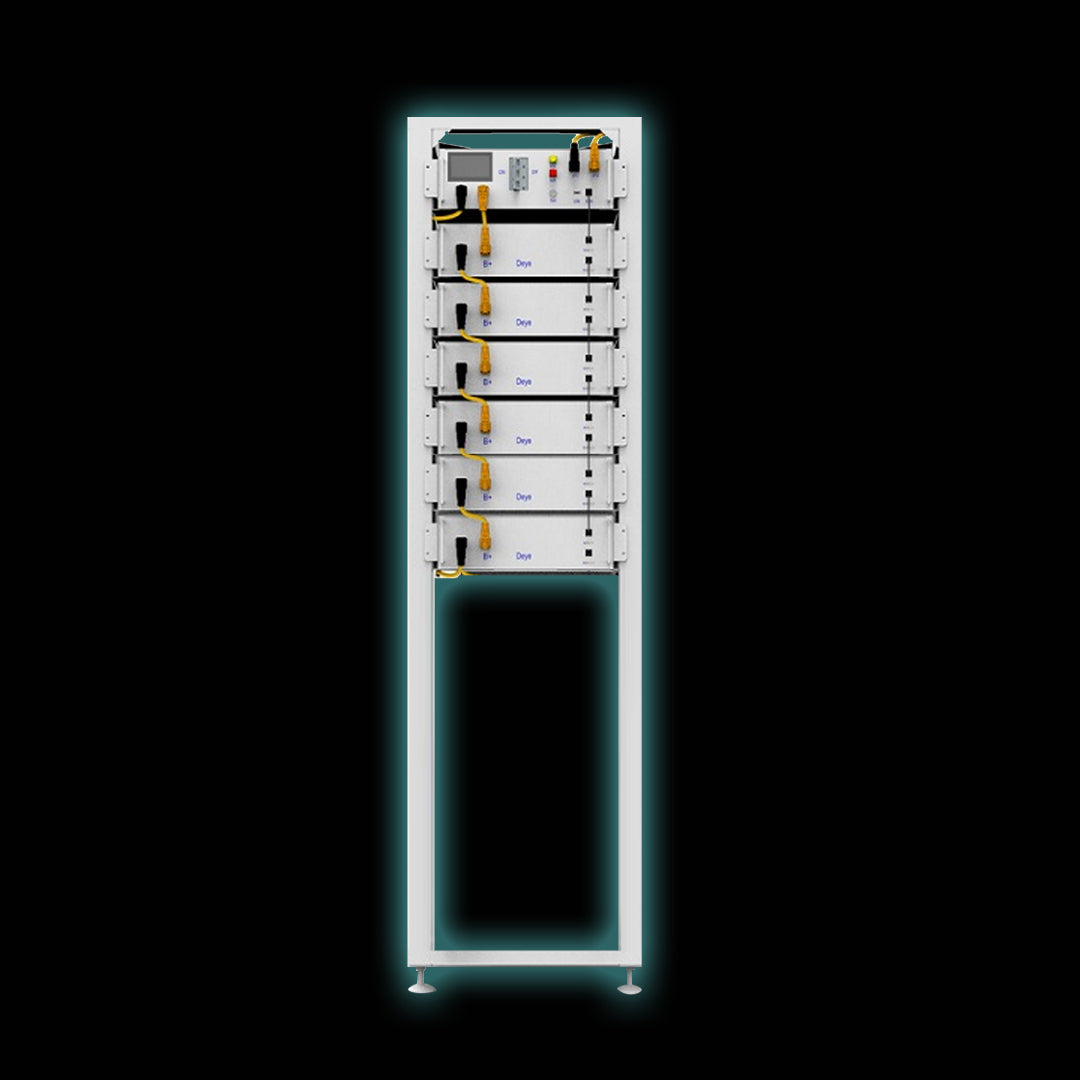

• Deye Battery Rack with 6 Batteries and Deye BMU

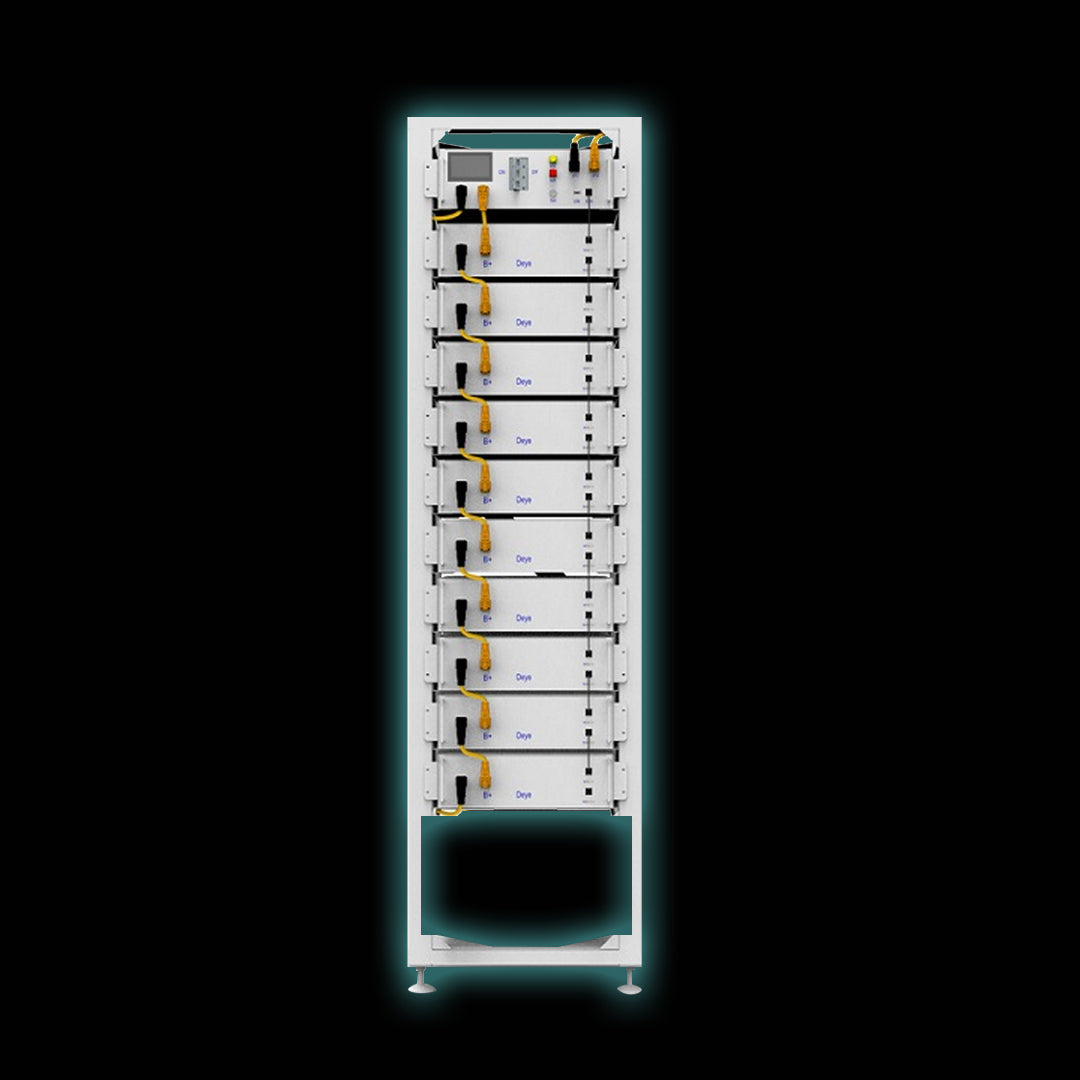

  • Deye Battery Rack with 10 Batteries and Deye BMU
  • Deye High Voltage Batteries with Rack and BMU - 5.12kW BOS-G - Haultron | Only Good Energy
  • Deye Battery Rack with 10 Batteries and Deye BMU
1 1

Deye

Deye High Voltage Batteries with Rack and BMU - 5.12kW BOS-G

Deye High Voltage Batteries with Rack and BMU - 5.12kW BOS-G

R 124,030.00 ZAR
R 124,030.00 ZAR
Sale Sold out
Tax included.

Capacity

CONTACT US FOR RESELLER PRICING

Deye High Voltage Batteries with Rack and BMU - 5.12kW BOS-G

Upgrade your energy storage system with the Deye BOS-G 5.12kWh High Voltage Battery, engineered for performance, safety, and scalability. Designed with LiFePO4 (LFP) chemistry, this battery module offers long cycle life, minimal self-discharge, and exceptional reliability—ideal for residential, commercial, and industrial energy solutions.

Key Features:

  • High Capacity & Voltage: Each module delivers 5.12kWh at 51.2V, with scalable configurations up to 61.44kWh and 614.4V.
  • Intelligent Battery Management System (BMS): Built-in protection against overcharge, over-discharge, overcurrent, and extreme temperatures. Automatically balances cell voltage and current for optimal performance.
  • Eco-Friendly & Safe: Non-toxic, non-polluting, and certified to CE, UL1973, UL9540A, IEC62619, VDE2510-50, and UN38.3 standards.
  • Modular & Flexible Design: Rack-mounted system supports up to 12 modules with optional 19-inch racks (3U-HRACK or 3U-LRACK) and compatible BMU (Battery Management Unit).
  • Wide Operating Range: Performs reliably in temperatures from -20°C to 55°C.
  • Smart Connectivity: Supports CAN2.0/RS485 communication, USB and Wi-Fi upgrades, and remote monitoring (compatible with Deye inverters).
  • Easy Installation: Standard 19-inch embedded rack design ensures quick setup and maintenance.

Technical Specifications:

  • Battery Type: LiFePO4 (LFP)
  • Nominal Voltage: 51.2Vdc
  • Rated Capacity: 100Ah
  • Rated Energy: 5.12kWh
  • Peak Discharge Current: 125A
  • Cycle Life: ≥6000 cycles at 25°C, 0.5C/0.5C
  • Ingress Protection: IP20
  • Dimensions: 440×570×133mm (module), 589×590×2240mm (rack)
  • Weight: Approx. 44kg (module), 85kg (rack)
  • Warranty: Up to 10 years

Ideal For:

  • Solar energy storage systems
  • Off-grid and hybrid setups
  • Commercial backup power
  • Industrial energy management

Why Choose Deye? Deye is a trusted global brand in energy storage, known for innovation, quality, and sustainability. The BOS-G series is a future-proof solution for high-performance energy storage.



Deye - 5.12kW BOS-G High Voltage Batteries with Rack and BMU Specification Document

View full details
