• Deye BMU High Voltage Control Box
1 1

Deye

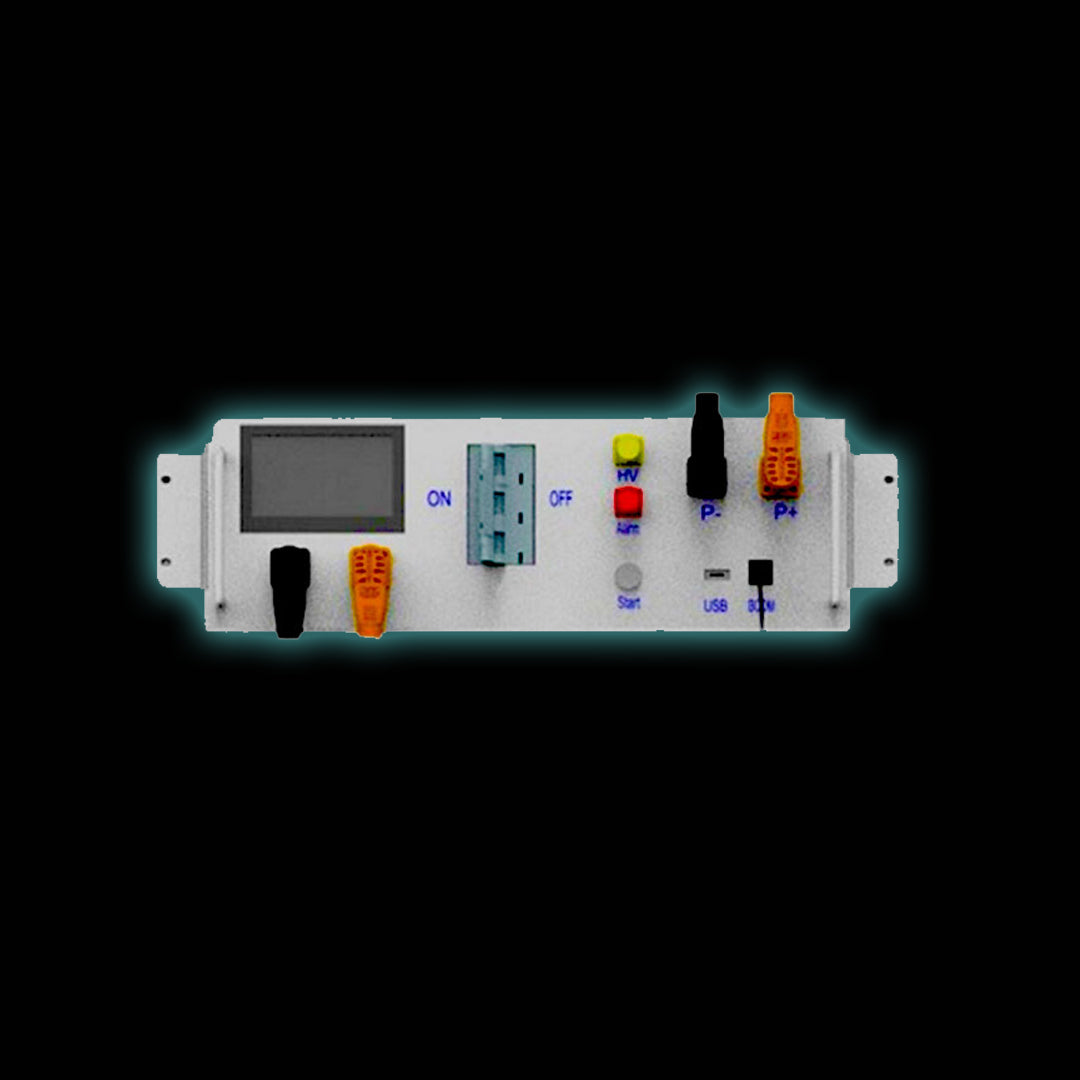

Deye BMU - High Voltage Control Box for BOS-G Pro

Deye BMU - High Voltage Control Box for BOS-G Pro

R 13,318.00 ZAR
R 13,318.00 ZAR
Sale Sold out
Tax included.

Capacity

CONTACT US FOR RESELLER PRICING

The Deye BOS G Pro Battery Management Unit (BMU) is a high‑voltage battery cluster control box designed to manage, protect, and optimise the performance of Deye BOS G Pro lithium battery systems. Engineered for commercial and industrial energy storage applications, the BMU ensures safe operation, intelligent monitoring, and seamless communication between battery clusters and compatible Deye high‑voltage inverters.

The BMU plays a critical role in maintaining system stability by supervising voltage, current, temperature, and communication across the entire battery rack. It enables scalable multi‑rack battery configurations while ensuring compliance with safety and operational limits.


Key Functions and Benefits

High‑Voltage Battery Cluster Control
Designed to manage high‑voltage lithium battery systems, supporting large‑capacity energy storage installations with multiple battery racks connected in series and parallel.

Comprehensive System Protection
Provides protection against over‑charge, over‑discharge, over‑current, short circuit, and abnormal temperature conditions, ensuring long battery life and operational safety.

Real‑Time Monitoring and Control
Continuously monitors battery voltage, current, temperature, and system status, enabling stable and efficient charge and discharge management.

Inverter Communication and Integration
Supports industry‑standard CAN 2.0 and RS485 communication protocols for seamless integration with Deye high‑voltage hybrid and commercial inverters.

Expandable and Scalable Design
Allows multiple battery racks and clusters to be combined, making it suitable for modular energy storage systems that grow over time.

Professional Installation Format
Compact enclosure designed for rack‑based commercial installations, with clearly defined power and communication ports for fast commissioning and maintenance.


Technical Specifications

Model
BOS‑G‑PDU‑2

Electrical Specifications

  • Operating Voltage Range: 200–1000 V DC
  • Nominal Charge / Discharge Current: 100 A
  • Maximum Charge / Discharge Current: 120 A
  • DC Input Rating: 12 ±2% V / 4.15 A

Communication Interfaces

  • CAN 2.0
  • RS485

Environmental Specifications

  • Operating Temperature Range: –20°C to +65°C
  • Ingress Protection Rating: IP20
  • Installation Location: Indoor, protected environment

Physical Specifications

  • Dimensions (W × D × H): 440 × 570 × 150 mm
  • Weight: 19 kg

Typical Applications

  • High‑voltage solar energy storage systems
  • Commercial and industrial battery installations
  • Multi‑rack lithium battery systems
  • Hybrid and grid‑tied energy storage solutions
  • Peak shaving, load shifting, and backup power systems

Compatibility

The BOS G Pro BMU is designed specifically for use with Deye BOS G Pro LiFePO₄ battery modules and racks, ensuring optimal performance and full system compatibility with supported Deye inverters.


Why Choose the Deye BOS G Pro BMU

The Deye BOS G Pro Battery Management Unit delivers intelligent control, robust protection, and reliable communication essential for high‑voltage energy storage systems. Its scalable design, professional build quality, and seamless inverter integration make it a core component for safe, long‑term commercial battery deployments.

Deye BMU - High Voltage Control Box for BOS-G Pro Specification Document


View full details
