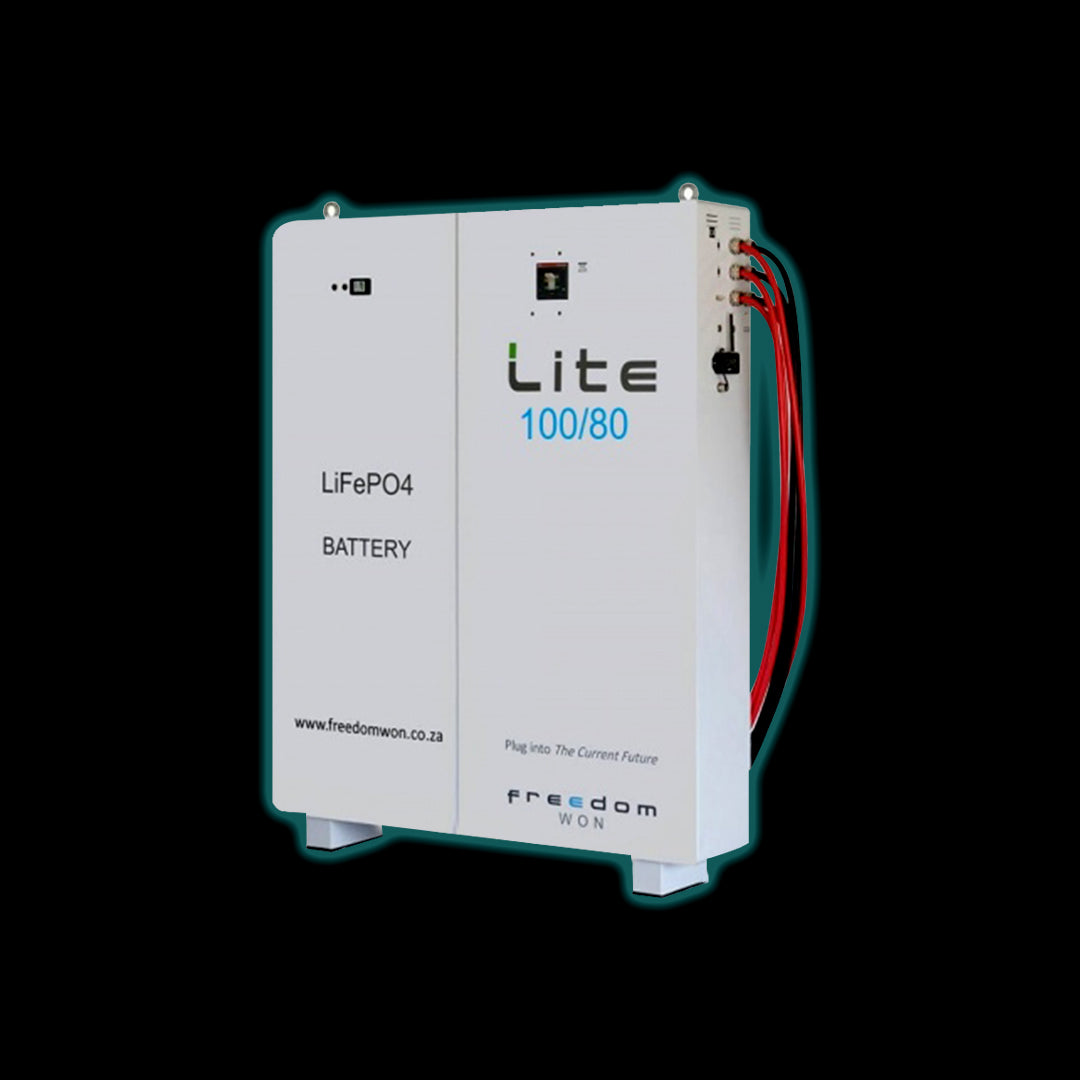

Freedom Won Lite Home 100/80kW HV 512v

The Freedom Won Lite Home 100/80kW HV is a premium high-voltage lithium iron phosphate (LiFePO₄) battery system engineered for large residential, commercial, and industrial energy storage applications. With a total energy capacity of 100kWh and 512V nominal voltage, this system delivers exceptional performance, safety, and longevity.

Key Features:

• High Capacity: 100kWh total energy with 80kWh usable at 80% DoD and 90kWh at 90% DoD.
• High Voltage System: 512V nominal voltage, compatible with ATESS HPS hybrid inverters.
• Powerful Output: Continuous charge and discharge power of 112kW with 200A current capacity.
• Advanced Battery Chemistry: Utilizes large-format prismatic LiFePO₄ cells for superior thermal stability and cycle life.
• Integrated Battery Management System (BMS): Provides real-time monitoring, fault protection, and system optimization.
• Durable Enclosure: 3mm powder-coated aluminium housing, tamper-proof, rated for indoor use (IP20).
• Efficient Operation: Round-trip efficiency of 96–97% with natural convection cooling.
• Long Service Life: Over 16 years expected at 80% DoD (5,500+ cycles), and over 20 years at 50% DoD (7,500+ cycles).
• Certified Safety: Includes shunt trip circuit breaker, overcurrent, voltage, and temperature protections.

Specifications:

• Nominal Voltage: 512V
• Max/Min Operating Voltage: 568V / 456V
• Max Inverter Power: 120kVA
• Short Circuit Current: 5kA
• Battery Dimensions: 1405mm (H) x 1636mm (W) x 365mm (D)
• Weight: 800kg (914kg crated)
• DC Connection: 1x 95mm² Permopower fly leads per electrode
• Ambient Operating Temperature: 0°C to +35°C (recommended), -20°C to +60°C (extreme)
• Warranty: 10 years or 6,000 cycles at 80% DoD

Interface and Controls:

• CAN Bus communication for inverter integration and diagnostics
• State of Charge LED display (0–100%)
• On/Off buttons, error indicator, reset button, and USB port for programming
• Main breaker and internal trip protection

Applications:

Ideal for large-scale solar energy storage, backup power systems, and off-grid or hybrid installations requiring high voltage and high capacity with long-term reliability.
