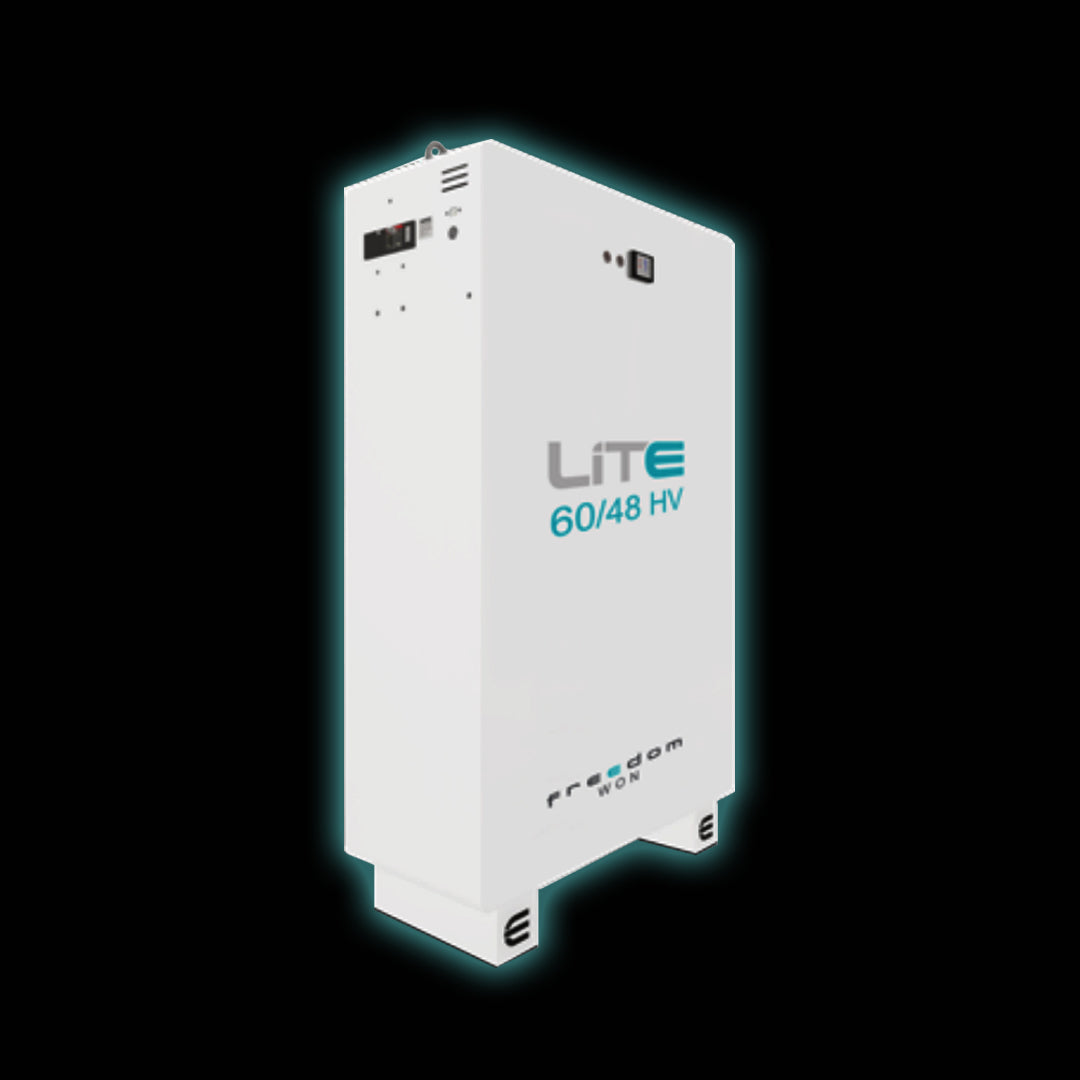

Freedom Won Lite Home 60/48kW HV 614

The Freedom Won Lite Home 60/48 HV is a high-performance lithium iron phosphate (LiFePO?) battery system engineered for residential and commercial energy storage applications requiring high voltage and reliable power delivery. With a total energy capacity of 60kWh and a nominal voltage of 614V, this system is ideal for integration with compatible high-voltage inverters.

Key Features:

• Energy Capacity: 60kWh total, with 48kWh usable at 80% DoD and 54kWh at 90% DoD.
• High Voltage Output: 614V nominal, operating range from 547V to 682V.
• Power Delivery: Up to 92kW peak discharge and 60kW continuous discharge.
• Charge Capability: 100A continuous charge current.
• Durable Build: Powder-coated aluminium enclosure rated IP20 for indoor or protected environments.
• Integrated Safety: Shunt trip circuit breaker with BMS-controlled fault protection including overcurrent, voltage, temperature, and SoC safeguards.
• Smart Interface: CAN Bus and RJ45 ports for diagnostics and inverter communication, plus LED State of Charge display and USB programming port.
• Long-Term Reliability: 10-year warranty or 4,000 cycles at 80% DoD, with expected service life of 13–15 years at 70% DoD and up to 20 years at 50% DoD.

Technical Specifications:

• Nominal Voltage: 614V
• Max/Min Operating Voltage: 682V / 547V
• Battery Dimensions: 1350mm (H) x 1040mm (W) x 290mm (D)
• Weight: 485kg
• DC Connection: 1 x 25mm² Permopower fly lead per electrode
• Cooling: Natural convection
• Operating Temperature: 0°C to +35°C (recommended), -20°C to +60°C (extreme)

Applications:

Ideal for high-voltage solar energy systems, hybrid installations, and backup power solutions requiring scalable, safe, and efficient energy storage.

Freedom Won Lite Home 60/48kW HV 614 Specification Document
