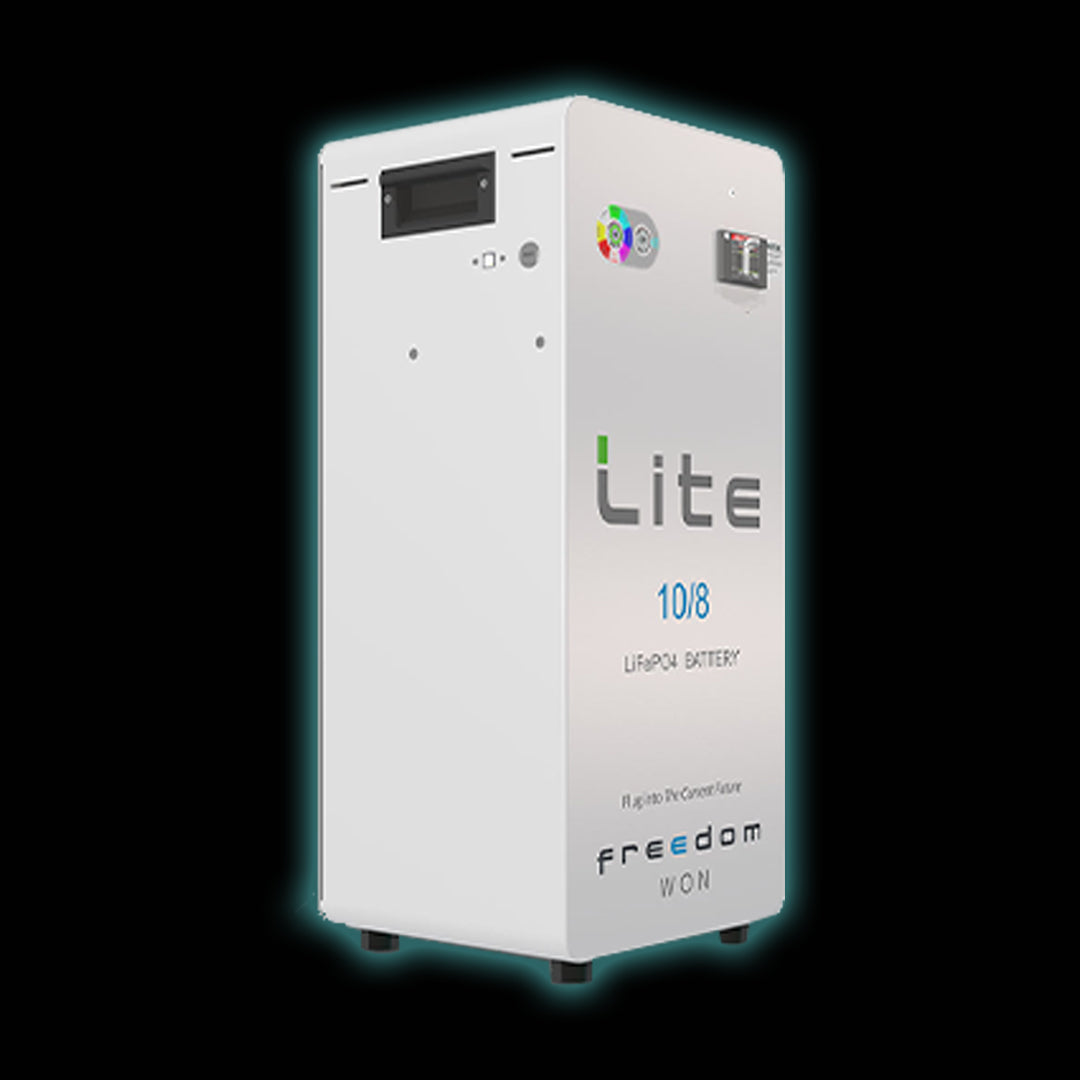

Freedom Won Lite Home 10/8kW 52v

The Freedom Won Lite Home 10/8 is a compact and efficient lithium iron phosphate (LiFePO?) battery system designed for residential energy storage. With a total energy capacity of 10kWh and a nominal voltage of 52V, this unit is ideal for use with 48V inverter systems, offering reliable performance, advanced safety features, and long-term durability.

Key Features:

• Energy Capacity: 10kWh total, with 8kWh usable at 80% DoD and 9kWh at 90% DoD.
• Voltage Compatibility: 52V nominal (range: 47V to 56V), suitable for 48V inverters.
• Current Capacity: 200Ah with 200A continuous charge and up to 300A discharge.
• Power Output: Up to 15kW discharge and 10kW charge power.
• Durable Enclosure: Aluminium housing rated IP20 for indoor or protected environments.
• Integrated Safety: Shunt trip circuit breaker with BMS-controlled protection for overcurrent, voltage, temperature, and SoC.
• Smart Interface: USB and RJ45 ports for diagnostics and inverter communication, plus LED State of Charge display.
• Long-Term Reliability: 10-year warranty or 4,000 cycles at 80% DoD, with expected service life of over 16 years at 80% DoD and up to 20 years at 50% DoD.

Technical Specifications:

• Nominal Voltage: 52V
• Max Recommended Inverter Power: 10kVA
• Battery Dimensions: 745mm (H) x 340mm (W) x 290mm (D)
• Crated Dimensions: 848mm (H) x 405mm (W) x 509mm (D)
• Weight: 89kg (111kg crated)
• DC Connection: 1 x 50mm² Permopower fly lead per electrode
• Cooling: Natural convection
• Operating Temperature: 0°C to +35°C (recommended), -20°C to +60°C (extreme)

Included Accessories:

• USB “printer” cable for PC connection
• CAN Bus termination resistor (included)
• RJ45 CAN Bus cable (not included; inverter-specific versions may be required)

Applications:

Ideal for solar energy storage, hybrid systems, and backup power solutions in residential environments requiring compact, scalable, and efficient energy storage.

Freedom Won Lite Home 10/8kW 52v Specification Document
