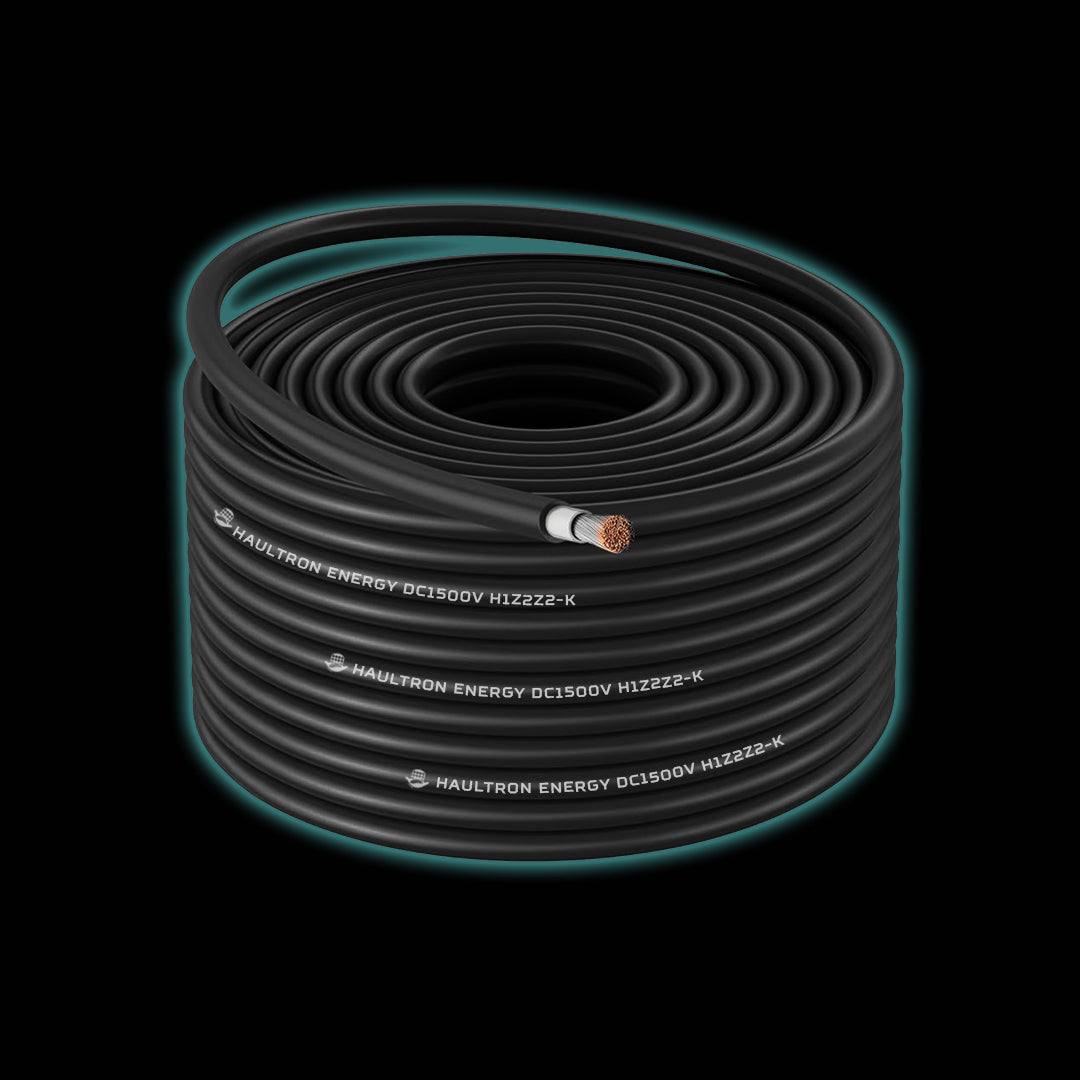

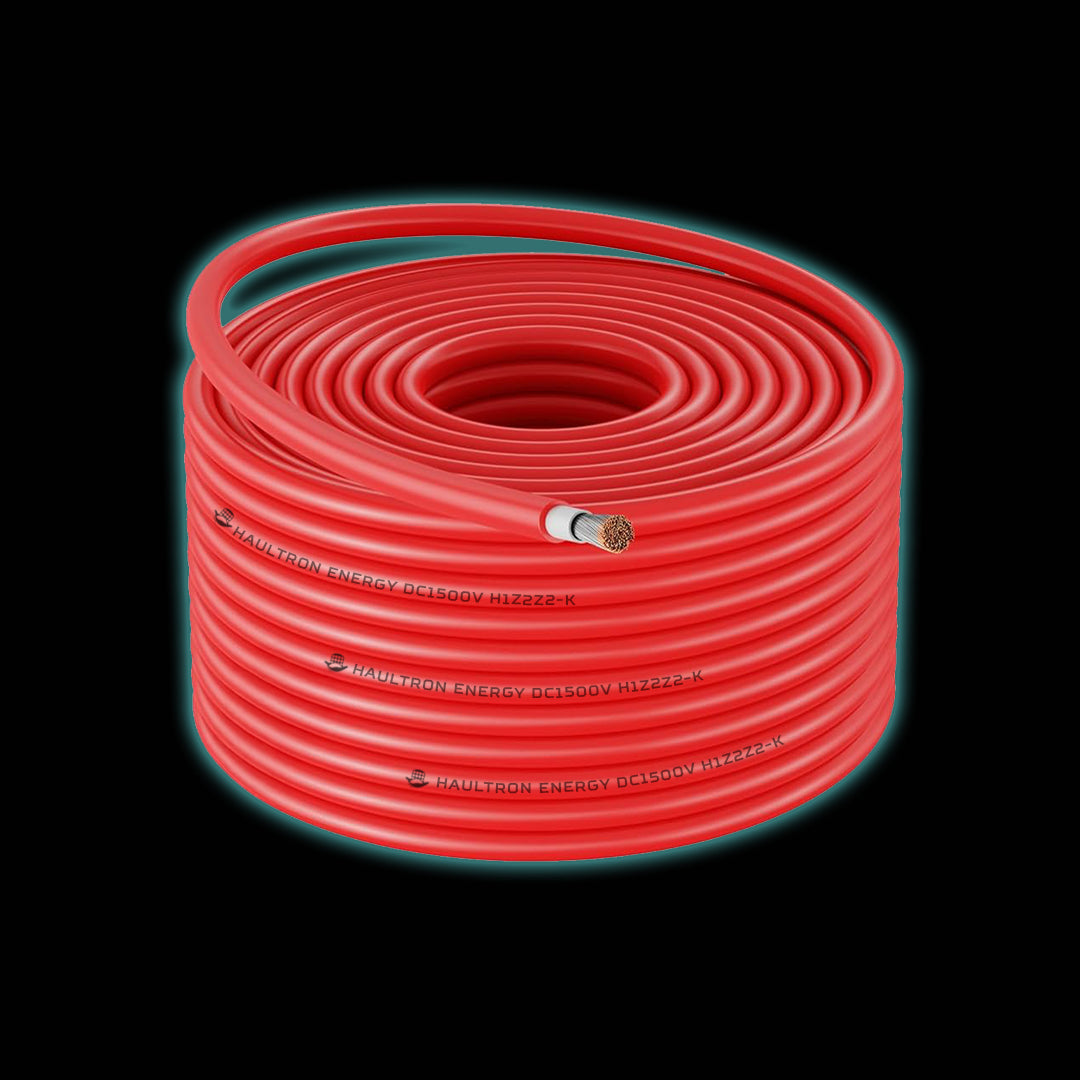

6mm Premium PV Copper Cables 1500V DC H1Z2Z2-K | by Haultron Energy

PRICED PER METER

Upgrade your solar installations with Haultron Energy's 6mm Premium PV Copper Cables DC1500V H1Z2Z2-K, engineered for maximum efficiency, durability, and compliance with international standards. Designed for high-voltage photovoltaic applications, these cables deliver exceptional performance in demanding environments.

Key Features:

• High Conductivity: Electrolytic annealed, tinned pure copper (Class 5) ensures minimal energy loss and superior electrical performance.
• Corrosion Resistance: Tinned copper conductors provide enhanced protection in coastal and humid conditions.
• Durable XLPO Insulation & Sheath: Halogen-free, electron-beam cross-linked XLPO offers excellent mechanical and thermal stability.
• Flame & UV Resistance: Certified to EN 60332-1-2 and EN 50289-4-17 standards for fire safety and weather resilience.
• Waterproof & Submersion-Ready: Compliant with EN 50525 AD8 for safe underground and submerged installations.
• Wide Temperature Range: Operates reliably from -40°C to +90°C, with short-term resistance up to 250°C.
• Long Service Life: Designed for up to 25 years of dependable operation.

Technical Specifications:

• Rated Voltage: 1500V DC / 1000V AC
• Conductor Sizes: Available in 6mm² and 10mm²
• Current Capacity: Up to 98A (free in air)
• Insulation Resistance: Up to 500 MΩ·km
• Bending Radius: ≥4×D (D<8mm), ≥6×D (D≥8mm)

Certifications & Compliance:

• IEC 60228 / EN 60228
• EN 50618 / IEC 62930
• CE Certified
• TÜV Rheinland Approved
• SAPVIA Compliant
• Halogen-Free & CPR: Cca Rated

Applications:

• Residential Rooftop Solar Installations
• Commercial Building Cable Trunking
• Industrial Solar Farms
• Direct Underground Burial
• Outdoor Solar Arrays

Ensure long-term reliability and safety with Haultron Energy’s trusted PV cable solution. Ideal for professionals seeking high-quality solar cabling that meets global standards.

Premium PV Copper Cables DC1500V H1Z2Z2-K Specifications Document
