CBI Multifunction Wi-Fi Meter - Intuitive Range

The CBI Intuitive Multifunction Wi-Fi Meter range is a smart energy monitoring solution designed for residential, commercial, and industrial applications. Available in Single Phase, Three Phase, and CT (Current Transformer) models, these advanced electricity meters provide accurate real-time monitoring of energy consumption, voltage, current, power, frequency, and demand values through the CBI Home App.

With built-in 2.4GHz Wi-Fi connectivity, the CBI Intuitive range enables users to monitor electricity usage remotely, identify energy-intensive equipment, and make informed decisions to reduce energy costs. Historical consumption data, live monitoring, and detailed energy analytics help improve energy efficiency while providing greater visibility into electrical systems.

Key Features

• Real-time electricity monitoring via Wi-Fi connectivity.
• Compatible with the CBI Home App and web portal for remote access.
• Available in Single Phase, Three Phase, and CT Meter configurations.
• Measures voltage, current, frequency, active power, reactive power, apparent power, and power factor.
• Four-quadrant multifunction energy metering.
• Class 1 measurement accuracy for dependable energy monitoring.
• Multi-tariff energy monitoring capability.
• Monthly, daily, and live energy consumption statistics.
• Maximum demand monitoring and reporting.
• High-definition LCD display with white backlight.
• Password-protected settings for improved security.
• Supports automation and IoT integration.

CT Meter Capabilities

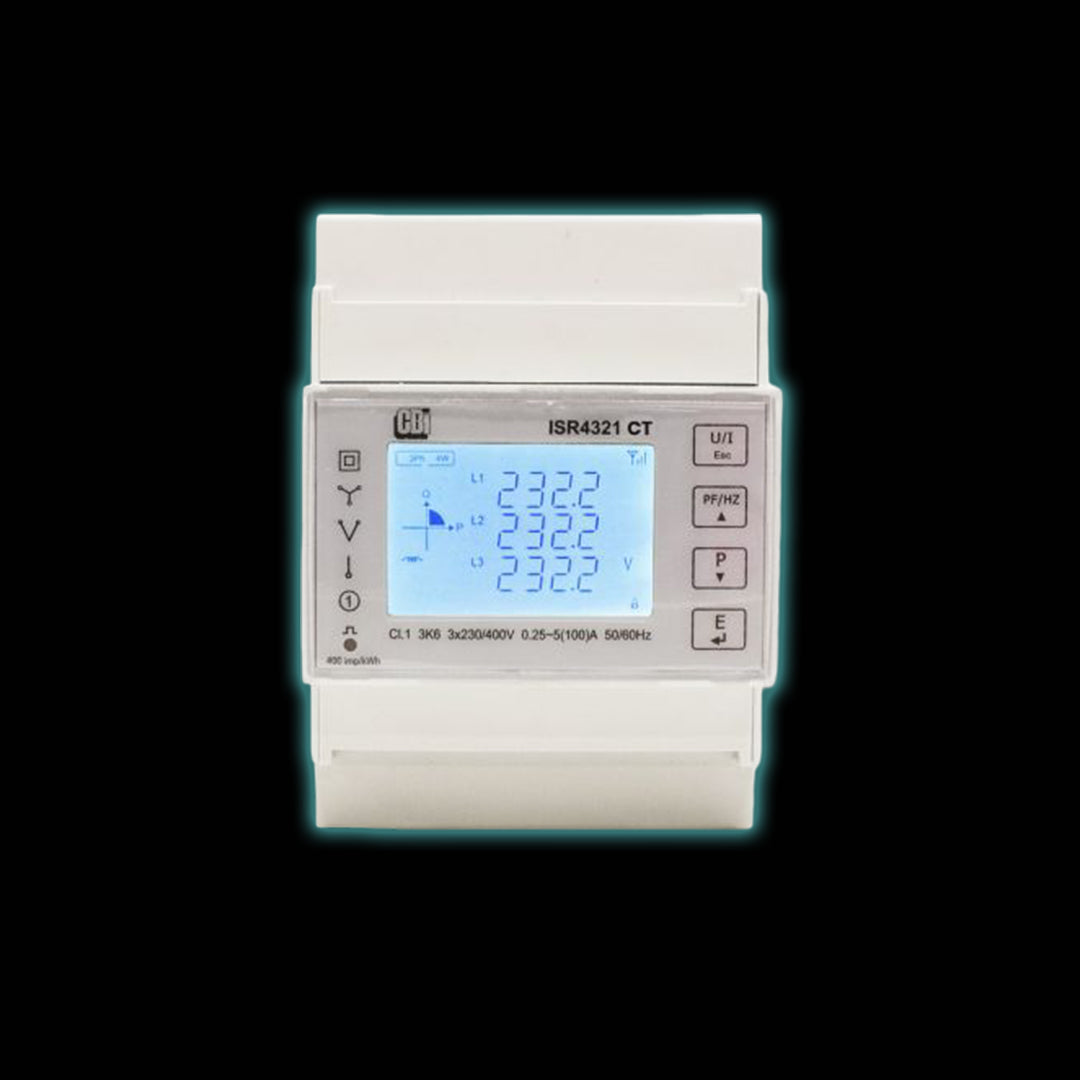

The CBI Intuitive CT Wi-Fi Meter is designed for larger commercial and industrial installations where external current transformers are required. The meter supports 1A and 5A CTs, configurable CT ratios, reverse CT correction, and voltage transformer compatibility. This flexibility allows accurate monitoring of high-current electrical systems while maintaining reliable energy measurement and reporting.

Applications

• Residential energy monitoring
• Commercial building energy management
• Industrial power monitoring
• Property management and tenant billing
• Solar and renewable energy systems
• Smart building automation
• Energy efficiency and cost-saving projects

Technical Specifications

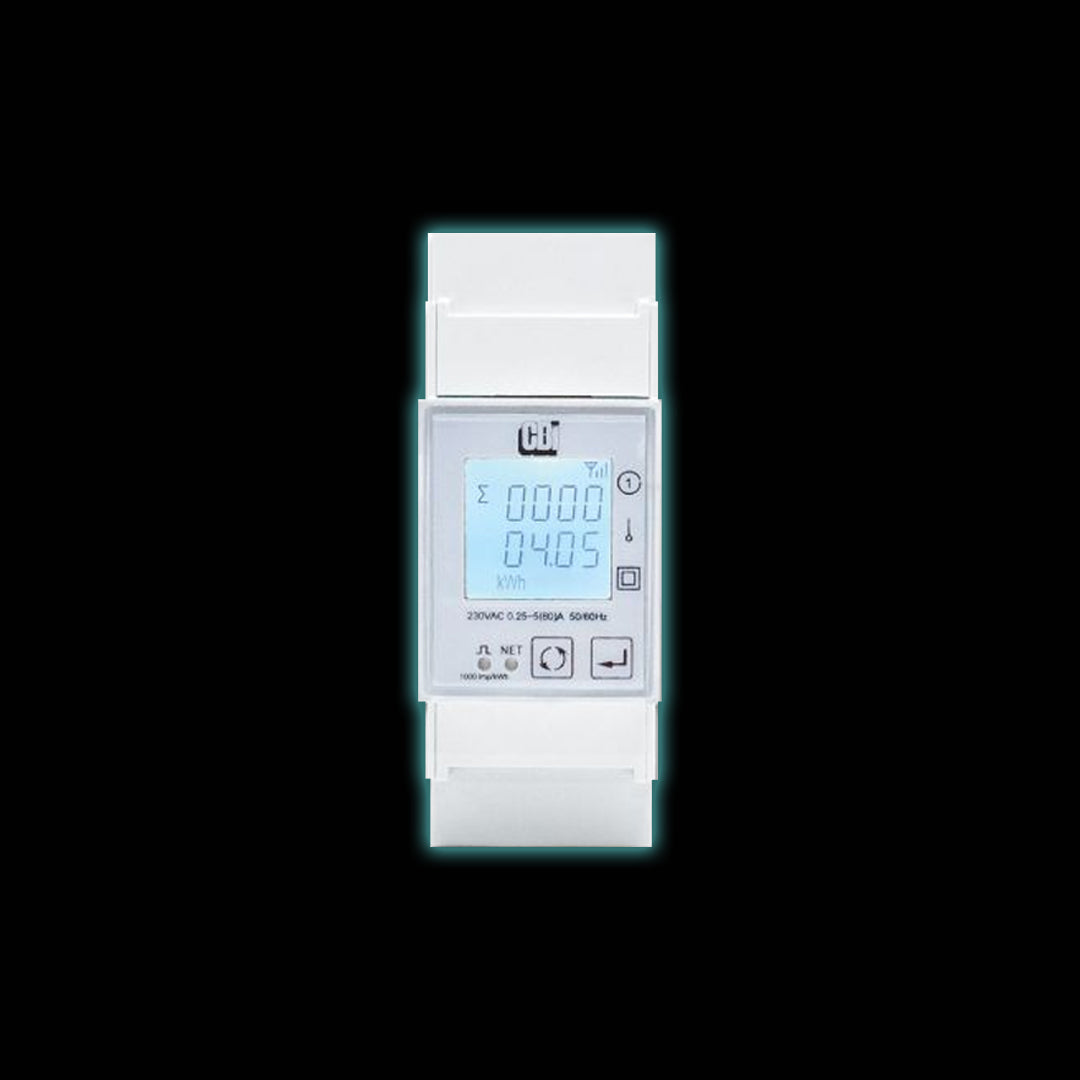

• Single Phase Meter: 230V, 80A Rated.

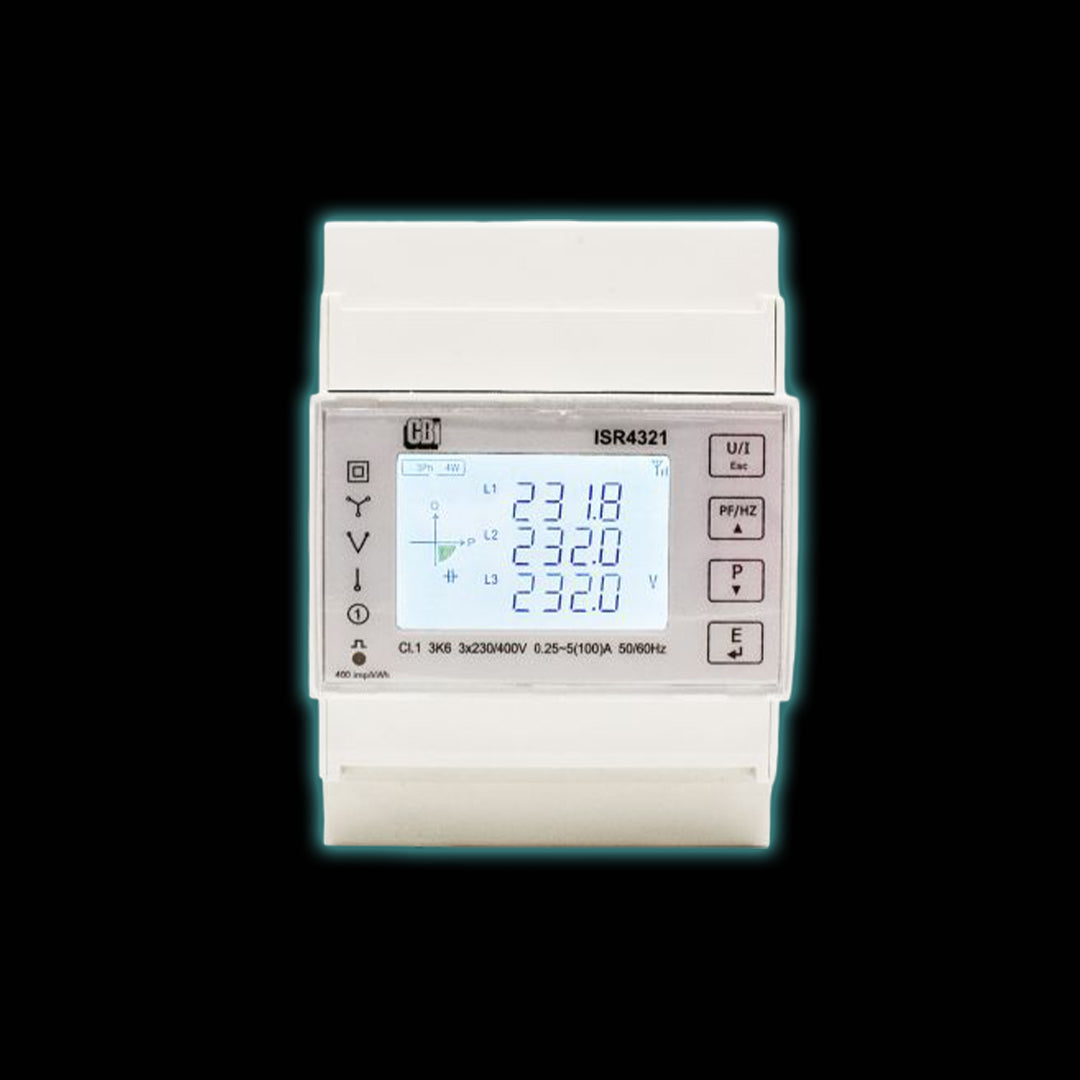

• Three Phase Meter: 230V/400V, 100A Rated.
• Three Phase CT Meter: 230V/400V with CT input support.
• Wi-Fi Connectivity: 2.4GHz.
• Operating Temperature: -25°C to +55°C.
• Certification: IEC 61010-1.

Why Buy the CBI Intuitive Wi-Fi Meter?

The CBI Intuitive Multifunction Wi-Fi Meter gives homeowners, businesses, and facility managers complete visibility of their electricity consumption. By providing live monitoring, historical reporting, demand analysis, and smart connectivity, it helps reduce energy costs, improve operational efficiency, and support smarter energy management decisions.
