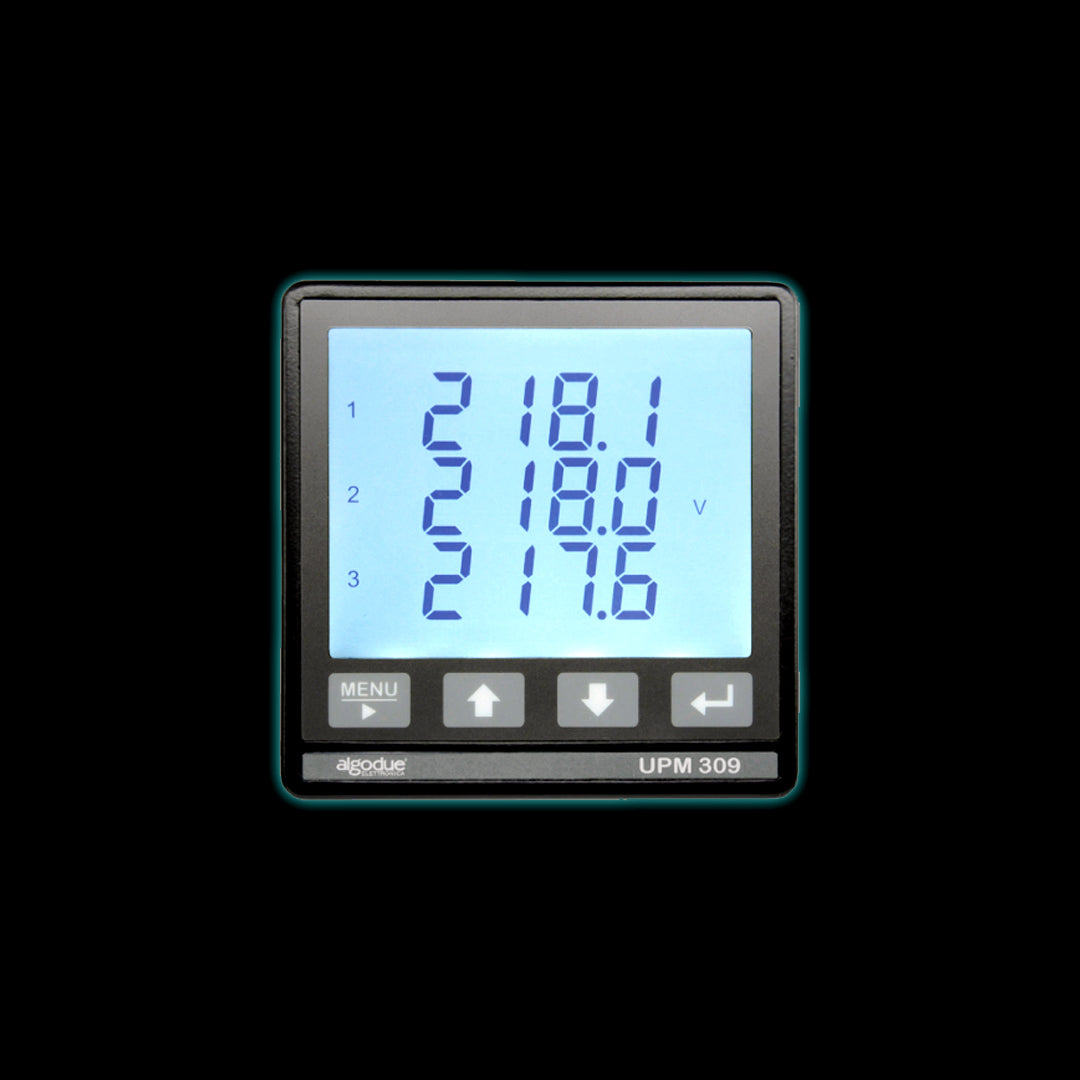

Energy Data Logger - UPM309 Power Analyzer

Energy Data Logger - UPM309 Power Analyzer

Regular price R 17,500.00 ZAR
Regular price Sale price R 17,500.00 ZAR
Sale Sold out
Tax included.

CONTACT US FOR RESELLER PRICING



The UPM309 Smart Kit is an advanced network analyzer designed for monitoring and recording electrical parameters. Ideal for consumption analysis and control providing comprehensive data to design energy systems suitable for any site. This innovative device offers an exceptional quality-to-price ratio.

The UPM309 power meter is the perfect solution for establishing measurement points throughout your facility, and it can be fully managed remotely. Data accessed via a PC enables the generation of detailed consumption profiles, trend analysis of recorded values, alarm/event reporting, cost calculations, and the identification of critical values.

What's Included

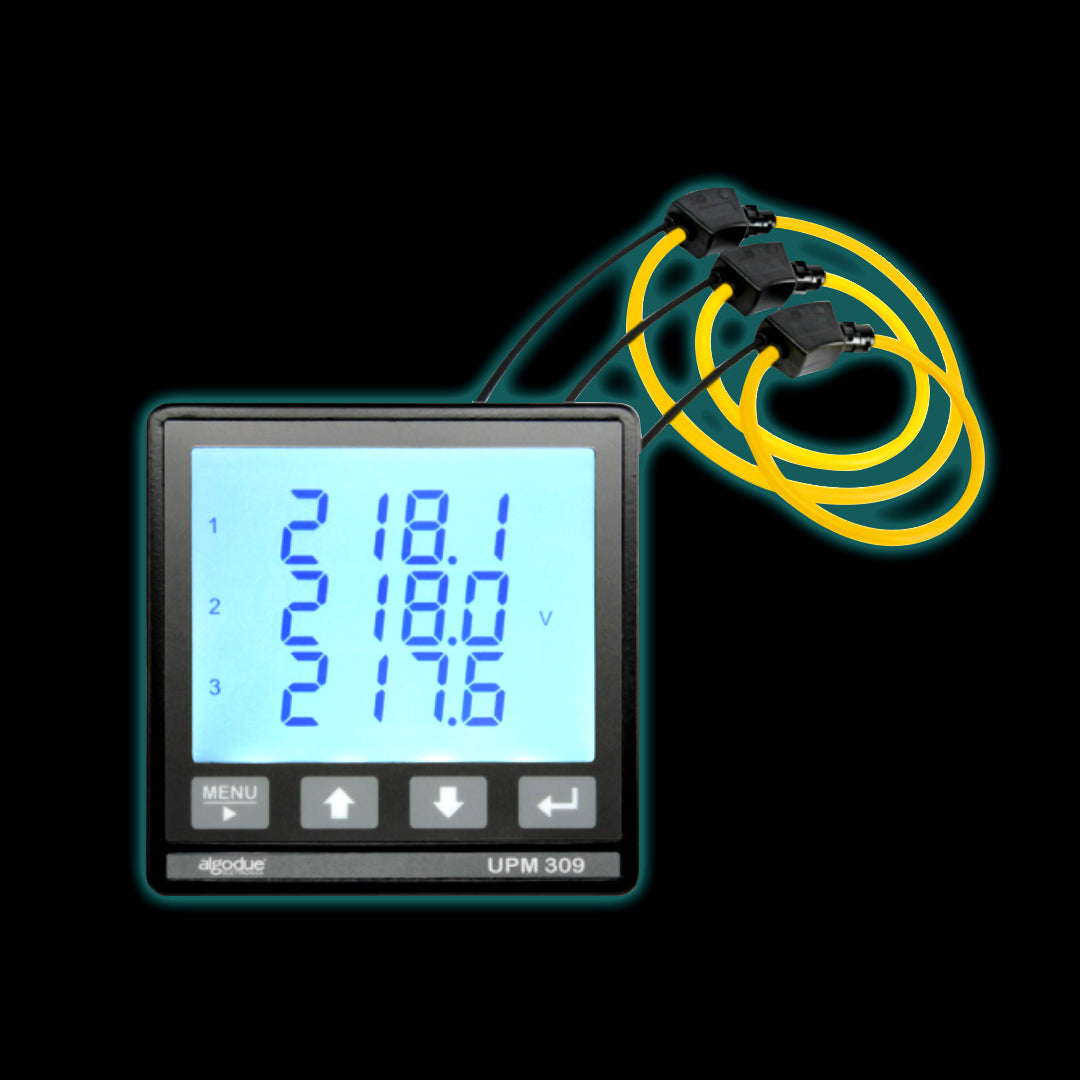

UPM309RGW Smart Kit: This comprehensive package includes the network analyzer along with three Rogowski coils for current measurement. The Rogowski coils allow for quick and easy installation, especially in existing setups. Should there be any changes in the plant, the instrument can be easily adjusted for current consumption without the need to replace the transducer.

Experience efficient energy management and insightful analysis with the UPM309 Smart Kit, a reliable choice for modern monitoring needs.

TECHNICAL SPECIFICATIONS

Power supply

Voltage range (according to the model):

RS485 port: 230 VAC ±15%

Ethernet port: 85…265 VAC / 110 VDC ±15%

Safety: 300 V CAT III

Frequency: 50/60 Hz

Voltage Inputs

Maximum measurable voltage: 600 VAC L-LSafety: 300 V CAT III

Current inputs

Maximum value: 3 selectable scales, 500/4000/20000 A

Typical accuracy / performance class (device only)

Active power/energy: Class 0.5 according to IEC/EN 61557-12

Communication Port

Type: RS485 optoisolated or Ethernet (RJ45)

Protocols: MODBUS RTU/ASCII in case of RS485 port

HTTP, NTP, DHCP, MODBUS TCP in case of Ethernet port

Input and Outputs

2 digital outputs (DO), digital input (DI)

Size & Weight

LxHxW:  96x96x39 mm

Weight: 310 g

UPM309 Power Analyzer Specifications Document

MFC150 Rogowski coil Specifications Document

Smart Kit Document

Rogowski Catalogue
