Deye 125kW PCS Module | High-Efficiency Power Conversion for Commercial Industrial ESS

Deye 125kW PCS Module | High-Efficiency Power Conversion for Commercial & Industrial ESS

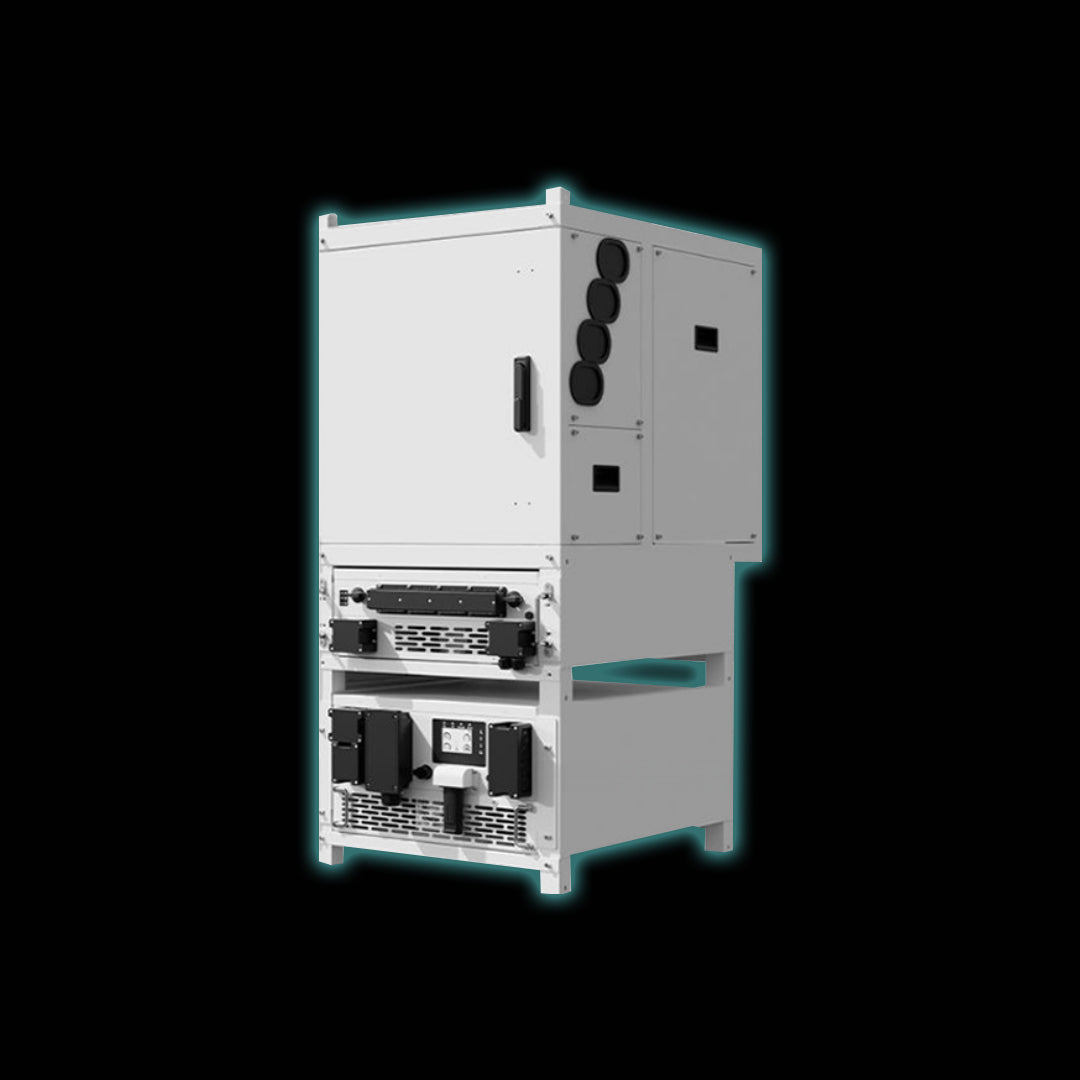

The Deye 125kW Power Conversion System (PCS) Module is a high-performance bidirectional inverter designed for commercial and industrial energy storage systems. Engineered for flexibility, scalability, and intelligent control, this PCS module is a core component of Deye’s C&I ESS solutions, enabling seamless integration between battery storage and the grid or renewable energy sources.

Key Features:

• Rated Power Output: 125kW bidirectional AC/DC conversion for charging and discharging operations.
• High Efficiency: Achieves up to 98.2% maximum efficiency, ensuring minimal energy loss during conversion.
• Peak Power Support: Capable of delivering up to 150% of rated power for short durations to handle load spikes.
• Zero-Export & Time-of-Use Control: Built-in EMS functions eliminate the need for external energy management systems.
• Seamless Switching: Supports rapid transition between on-grid, off-grid, and diesel generator modes in under 10ms.
• Smart Monitoring: Integrated LCD/LED display with support for RS485, CAN, and Wi-Fi communication.
• Robust Protection: Includes surge protection, overcurrent, overvoltage, short-circuit, thermal, and anti-islanding safeguards.
• Scalable Architecture: Supports parallel operation with multiple PCS units, enabling system expansion up to 2.5MW.

Technical Specifications:

• Rated AC Power: 125kW
• Max Apparent Power: 137.5kVA
• Rated AC Voltage: 400V (three-phase)
• Rated AC Current: 180A
• Max AC Current: 198A
• Grid Frequency: 50/60Hz
• Power Factor Adjustment: ±0.9
• THDi: <3%
• DC Voltage Range: 600V – 1000V
• Max DC Current: 250A
• Efficiency: Max 98.2%, Euro Efficiency 97.5%
• Cooling Method: Intelligent Air Cooling
• Enclosure Rating: IP20
• Dimensions (W×H×D): Approx. 1000 × 1800 × 800 mm
• Weight: ~250kg
• Communication Interfaces: RS485 / CAN / Wi-Fi / Meter
• Certifications: IEC 62477, IEC 61000, CEI 0-21, EN 50549, NRS 097, VDE-AR-N 4105
• Warranty: 5–10 Years (site-dependent)

Applications:

• Commercial and industrial energy storage systems
• Renewable energy integration (solar PV, wind)
• Microgrids and hybrid power systems
• Peak shaving and load shifting
• Backup power and grid support

Why Choose Deye PCS 125kW?

The Deye 125kW PCS Module is a future-ready solution for businesses seeking reliable, efficient, and intelligent energy conversion. Its advanced control features, high scalability, and robust protection make it ideal for demanding energy environments.
