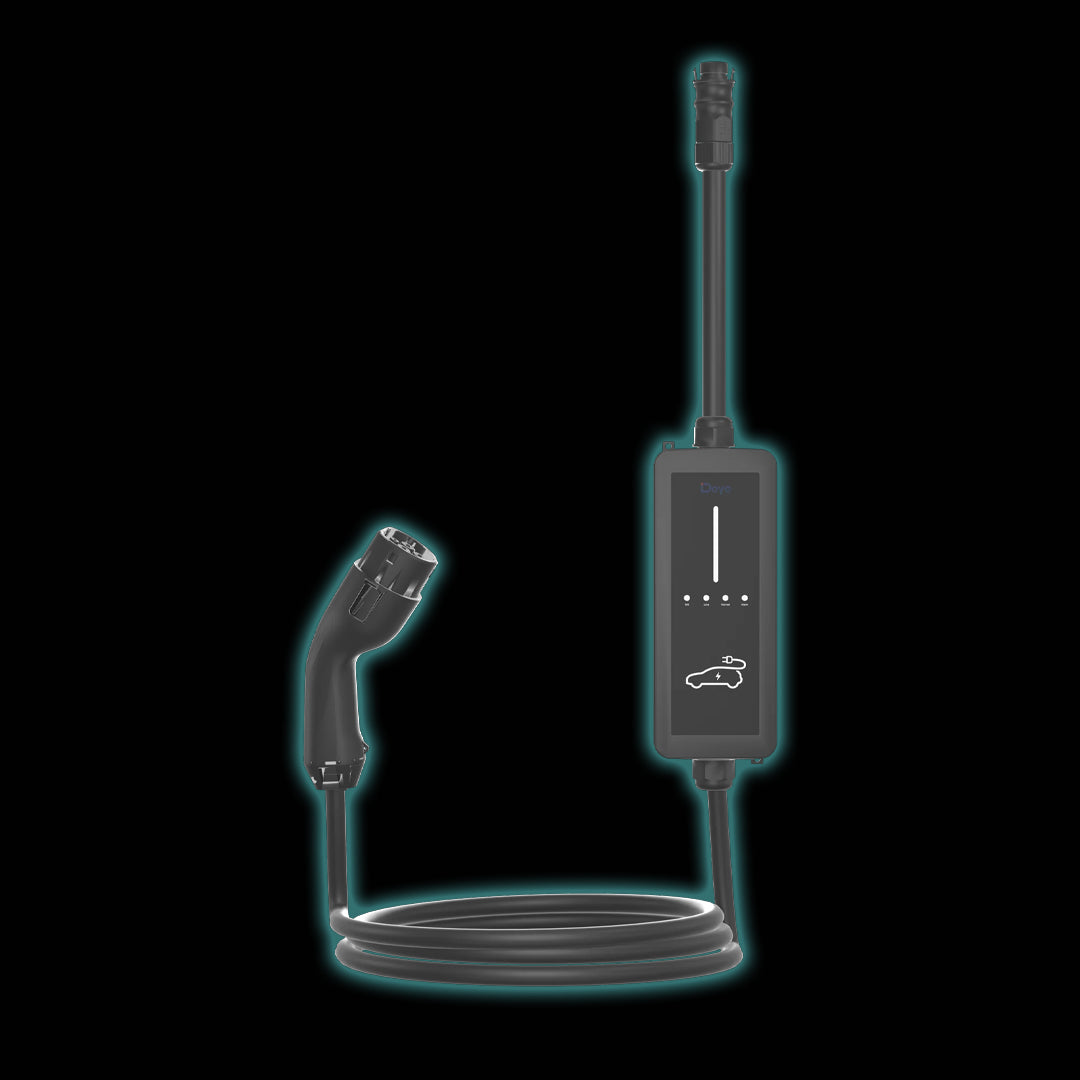

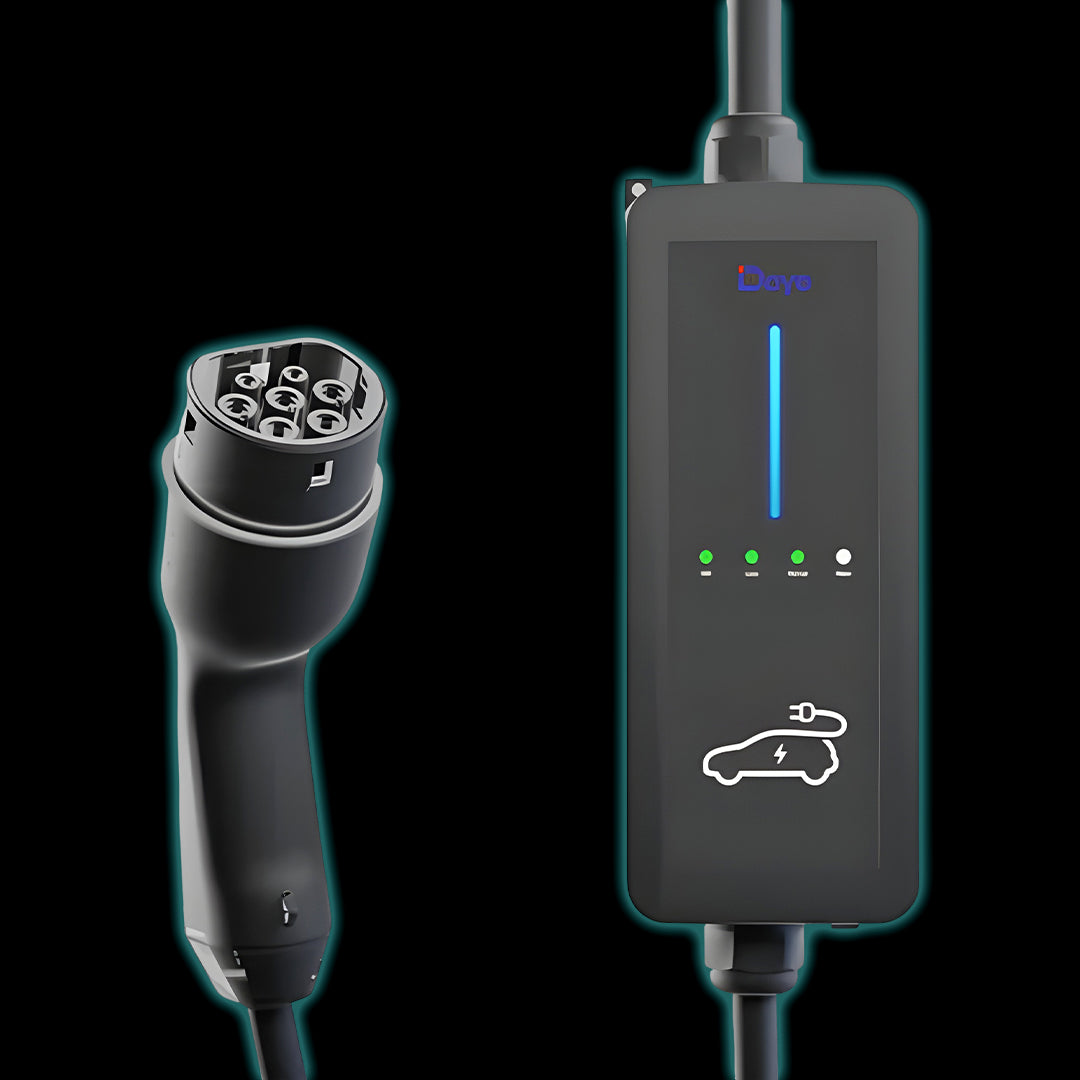

The DEYE EV Charger is a high performance AC electric vehicle charging station designed for seamless integration with Deye hybrid inverter systems. Engineered with LoRa, WiFi, and Bluetooth communication options, it enables smart, automated, and energy efficient EV charging that maximizes solar power usage and minimizes grid dependency.

Built for both residential and commercial applications, the DEYE EV Charger provides fast, reliable, and safe charging with advanced protection features and flexible operating modes.

Key Features

• Solar Optimized EV Charging
  When connected to a Deye hybrid inverter, the charger can operate in Solar Only Mode, Time Based Mode, or Plug and Charge Mode, ensuring maximum use of available solar energy.
• Flexible Single Phase and Three Phase Options
  7 kW, 11 kW, and 22 kW configurations to suit different EV charging and grid phase requirements or electrical setups.

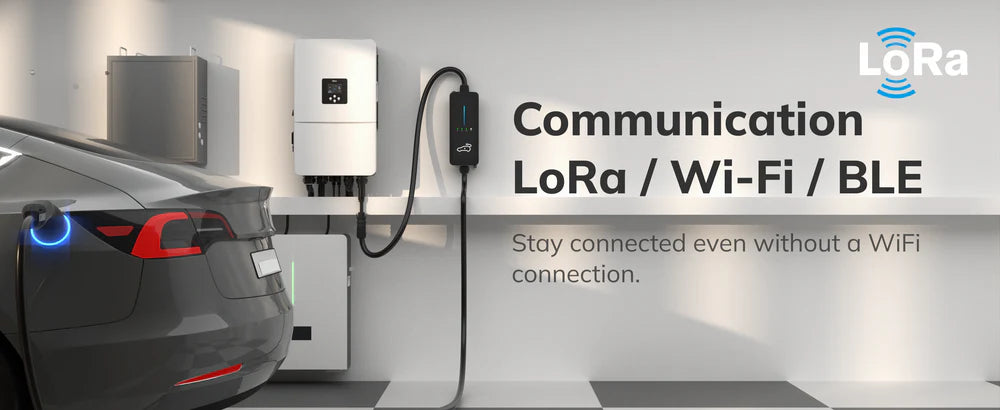

• Multiple Communication Methods
  Supports LoRa, WiFi, and BLE for stable, long range and intelligent communication with Deye inverters and apps.
• Advanced Protection Systems
  Includes over temperature, overload, overvoltage, under voltage, short circuit, earth fault, and leakage current protection (DC 6 mA).
• Durable Outdoor Design
  Weather resistant IP66 enclosure ensures reliable performance in harsh and outdoor environments.
• Quiet and Efficient Operation
  Low operating noise and high MTBF (100,000 hours) allow for continuous, dependable use.

Technical Specifications

Electrical Parameters:

• Input Voltage Range: 230 V (single phase) or 230/400 V (three phase)
• Input Current: Up to 32 A
• Frequency: 50 Hz (45–55 Hz) / 60 Hz (55–65 Hz)
• Maximum Output Power: 7kW or 22kW
• Starting Methods: Plug and Charge, Scan to Start, Scheduled Charging

Protection Features:

• Overload, Over temperature, Over voltage, Under voltage
• Short circuit and Earth Fault Protection
• Leakage Current Protection: DC 6 mA
• Surge Protection: Type II
•


Environmental and Mechanical:

• Operating Temperature: –40°C to +55°C
• Humidity: 5%–95% (non condensing)
• Ingress Protection: IP66
• Noise Level: <25 dB
• Size: 104 × 264 × 57.5 mm
• Weight: 3.7 kg
• Cable Length: 4.2 m
• MTBF: 100,000 hours
• Compliance: EN IEC 618511:2019, EN 300 2202, EN 300 328, EN IEC 6100061, EN IEC 6100063

Ideal Applications

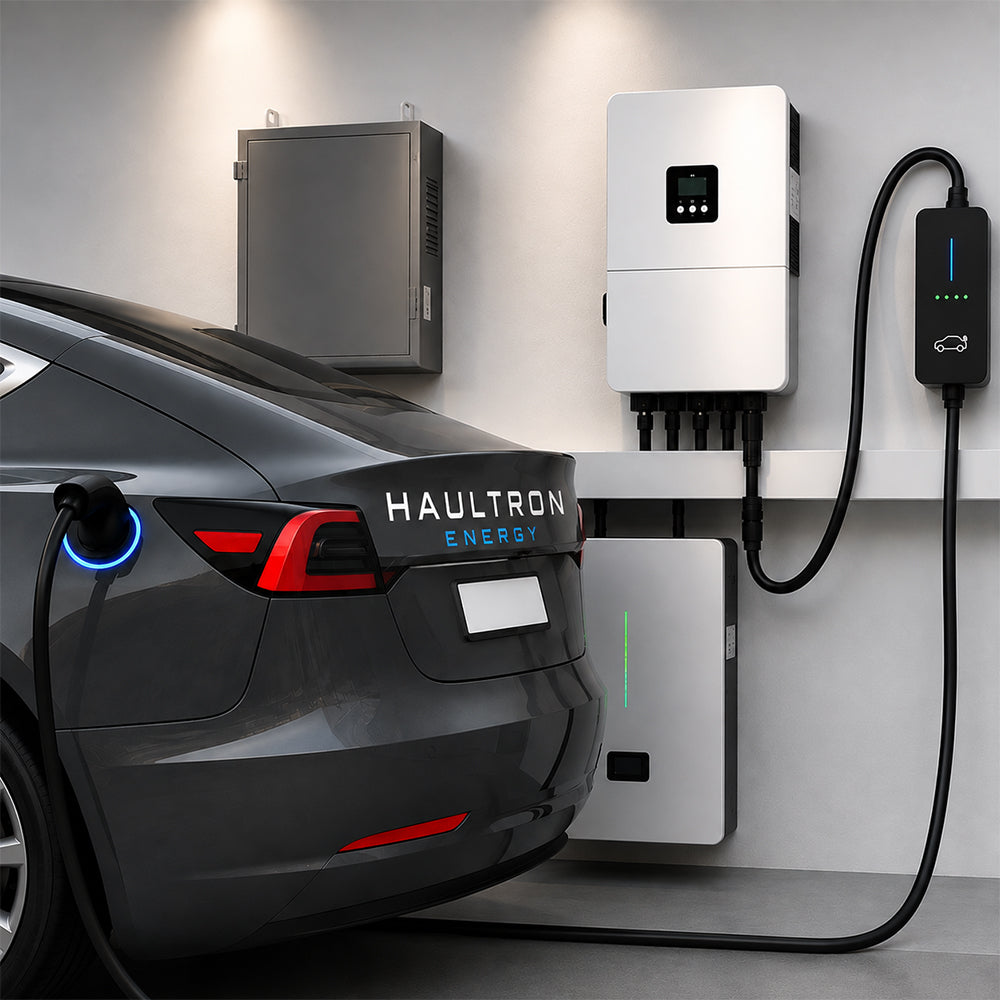

• Residential EV charging powered by solar or hybrid inverter systems
• Commercial and fleet charging installations
• Off grid and hybrid solar energy systems
• Smart home automation and energy efficient vehicle charging

Important Note:

The latest Deye EV charger supports flexible installation, allowing it to be connected either on the grid side or directly on the inverter side, with normal charging operation available in both configurations. A SmartTX device is no longer required for basic connection to the inverter.
However, SmartTX remains necessary when load-side smart energy management functions are desired, including advanced energy flow monitoring and coordinated control between PV, battery, and the charger via WiFi or LoRa communication.
In summary, the system operates with standard charging functionality without SmartTX (whether grid- or inverter-connected), while the addition of SmartTX enables enhanced smart energy management and communication-based control. This distinction is important, as the current manual does not clearly differentiate between basic operation and advanced smart energy management features.

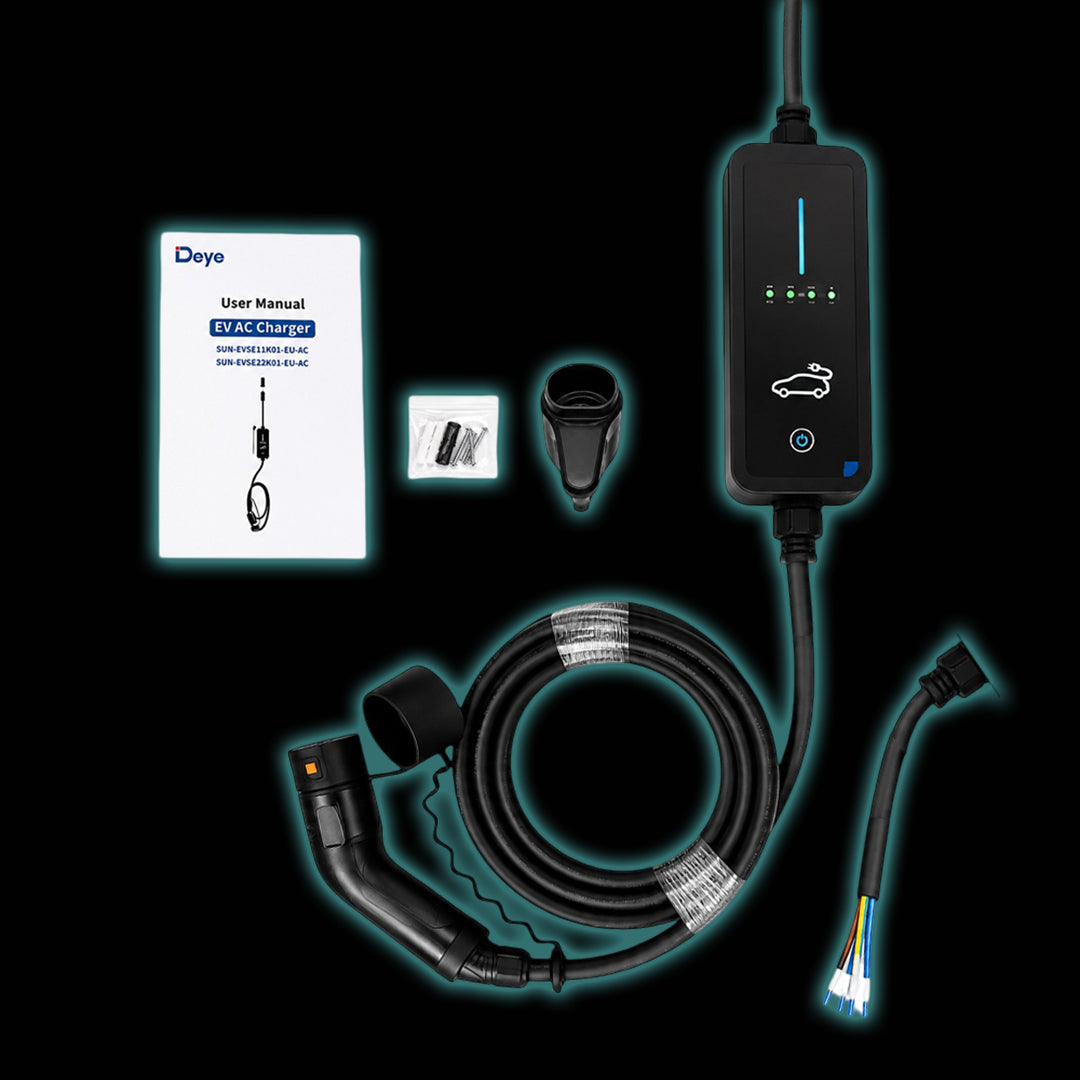

Whats in the Box?

• Deye Smart Wallbox (SUN- EVSE22KO1-EU-AC)

• Type 2 Charging Cable (4.2m)
• Wall Mounting Bracket & Screws
• Quick Start Guide
• Installation Manual

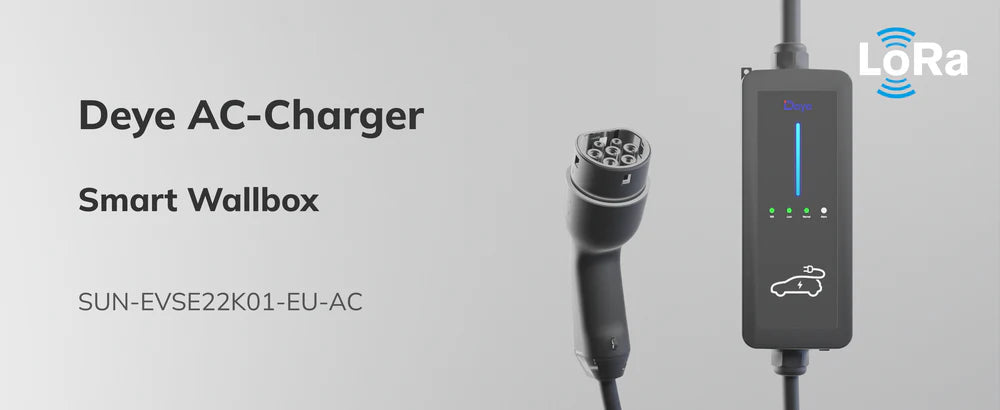

What is the Deye Smart Wallbox?

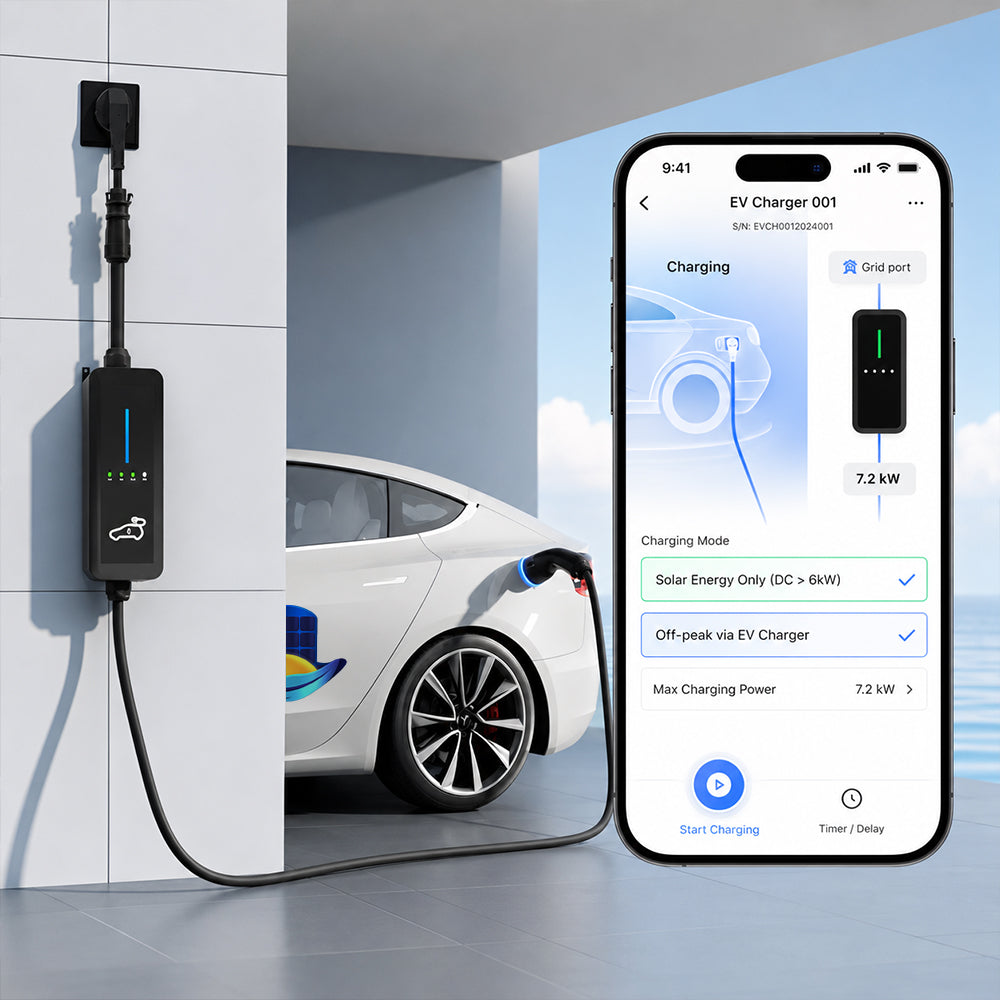

The Deye Smart Wallbox (SUN- EVSE22KO1-EU-AC) is an intelligent EV AC charging station delivering up to 22kW of three-phase power (or 7kW single-phase). It works in two modes: standalone via WiFi (no inverter needed) or integrated with a Deye hybrid inverter via LoRa for solar-powered charging. Features smart scheduling via the Deye Cloud App and comprehensive 7- layer safety protections.

Why Choose the DEYE EV Charger?

The DEYE EV Charger delivers an intelligent, efficient, and solar ready charging experience, especially when paired with Deye hybrid inverters. Its advanced protection features, long range communication capabilities, and robust outdoor rated design make it a dependable and future ready charging solution. Whether you are maximizing self consumption, lowering energy costs, or enabling fully automated EV charging, this charger offers the performance and reliability needed for modern electric mobility.
