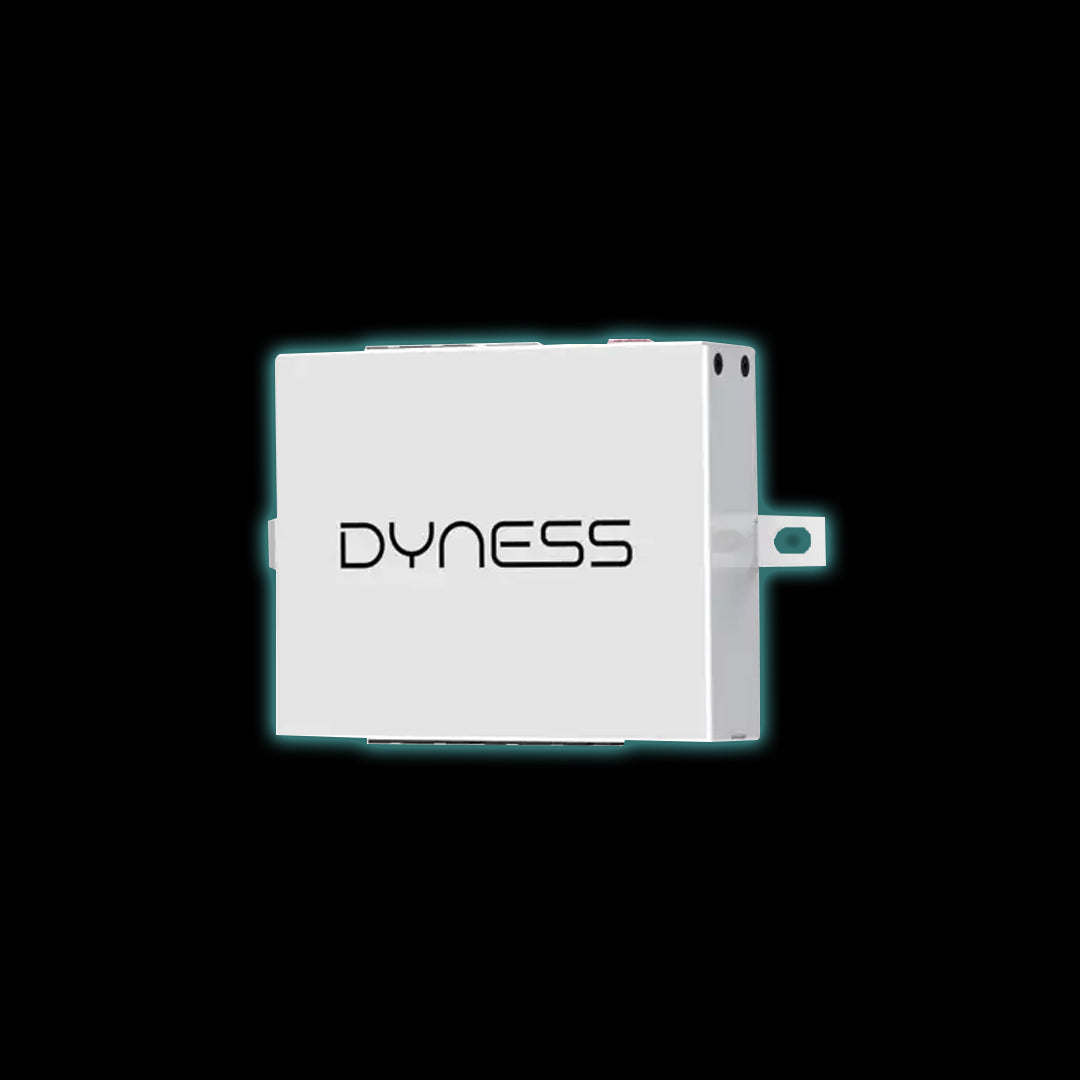

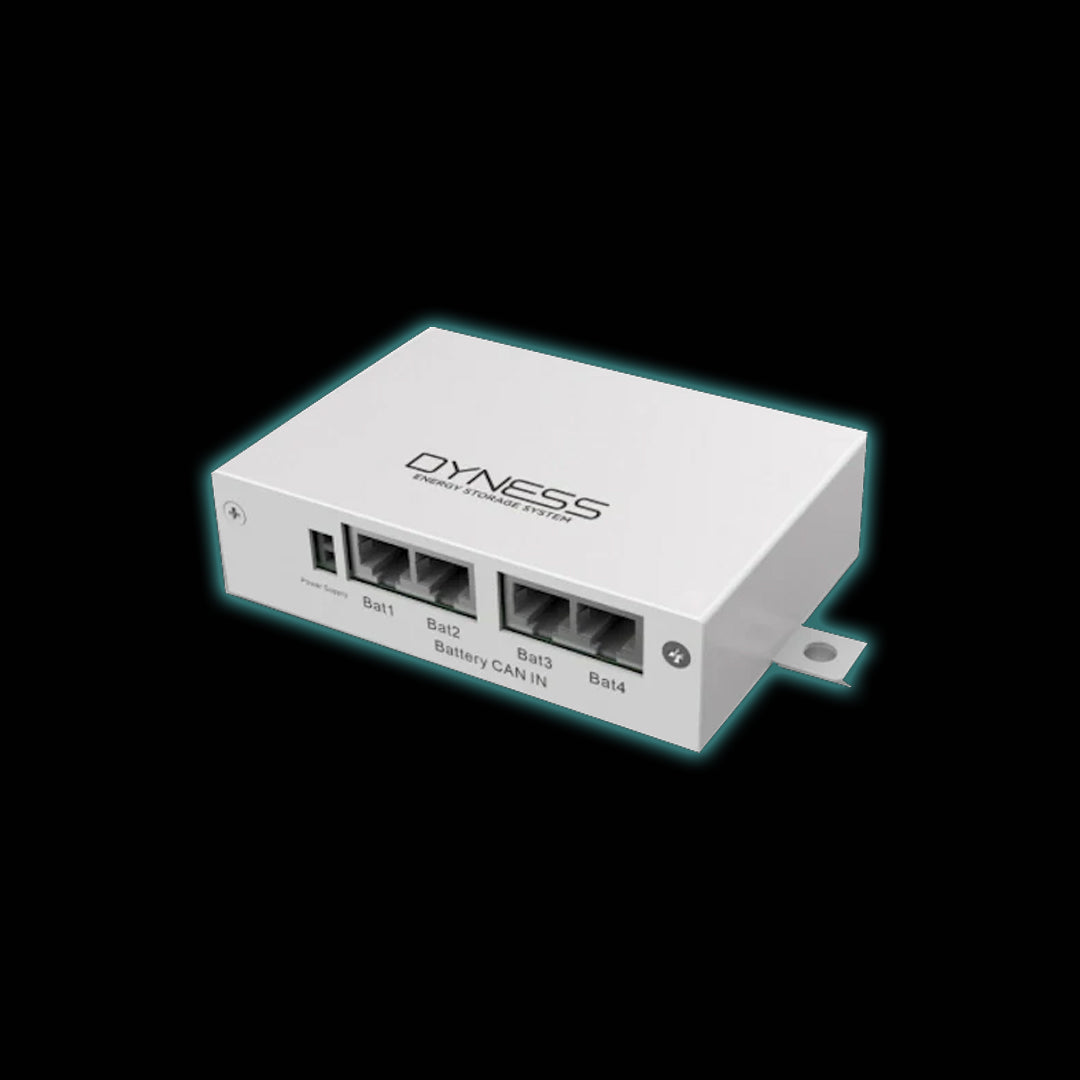

Dyness LV Link-A Communication Box

The Dyness LV Link-A Communication Box is a compact and reliable energy system communication hub designed to enable seamless integration and parallel connection of lithium battery systems. Built for flexibility and scalability, it allows different Dyness battery models within the same voltage platform to operate together efficiently, making it an ideal solution for both residential and commercial energy storage applications.

Key Features

• Flexible Battery Integration
  Connect multiple compatible Dyness battery systems in parallel, even across different models, to expand your total storage capacity as your energy needs grow.

• Supports Up to Four Battery Clusters
  The LV Link-A enables communication between up to four separate battery clusters, simplifying system expansion and management.

• Multi-Protocol Communication
  Equipped with CAN and RS485 communication protocols, ensuring compatibility with a wide range of energy storage systems and inverters.

• Compact and Wall-Mounted Design
  Space-saving construction with easy wall installation, ideal for clean and organized energy system setups.

• Wide Operating Range
  Designed to operate reliably in a variety of environmental conditions, making it suitable for diverse installation environments.

Technical Specifications

• Model: LV Link-A
• Operating Voltage: 42V – 60V
• Communication Interfaces: CAN, RS485
• Maximum Supported Systems: 4 battery clusters
• Dimensions: 135 mm × 112 mm × 36 mm
• Weight: 0.46 kg
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -10°C to 35°C
• Humidity Range: 5% to 85% RH
• Protection Rating: IP20
• Installation: Wall-mounted
• Certification: CE-EMC

Compatibility

The Dyness LV Link-A Communication Box is designed to work with a variety of Dyness battery systems, including:

• B51100
• BX51100
• DL5.0 / DL5.0C / DL5.0e
• Powerbox Pro
• PowerDepot H5B
• Powerbox G2
• PowerBrick

Ideal Applications

• Residential solar energy storage systems
• Commercial and industrial battery installations
• Hybrid and off-grid energy systems
• Scalable power storage solutions

Why Choose the Dyness LV Link-A?

The Dyness LV Link-A Communication Box provides a future-ready solution for energy storage expansion. Whether you are upgrading an existing system or building a new installation, this communication hub ensures stable, efficient, and scalable battery integration. Its compact design, robust communication capabilities, and broad compatibility make it a critical component for modern energy storage systems.
