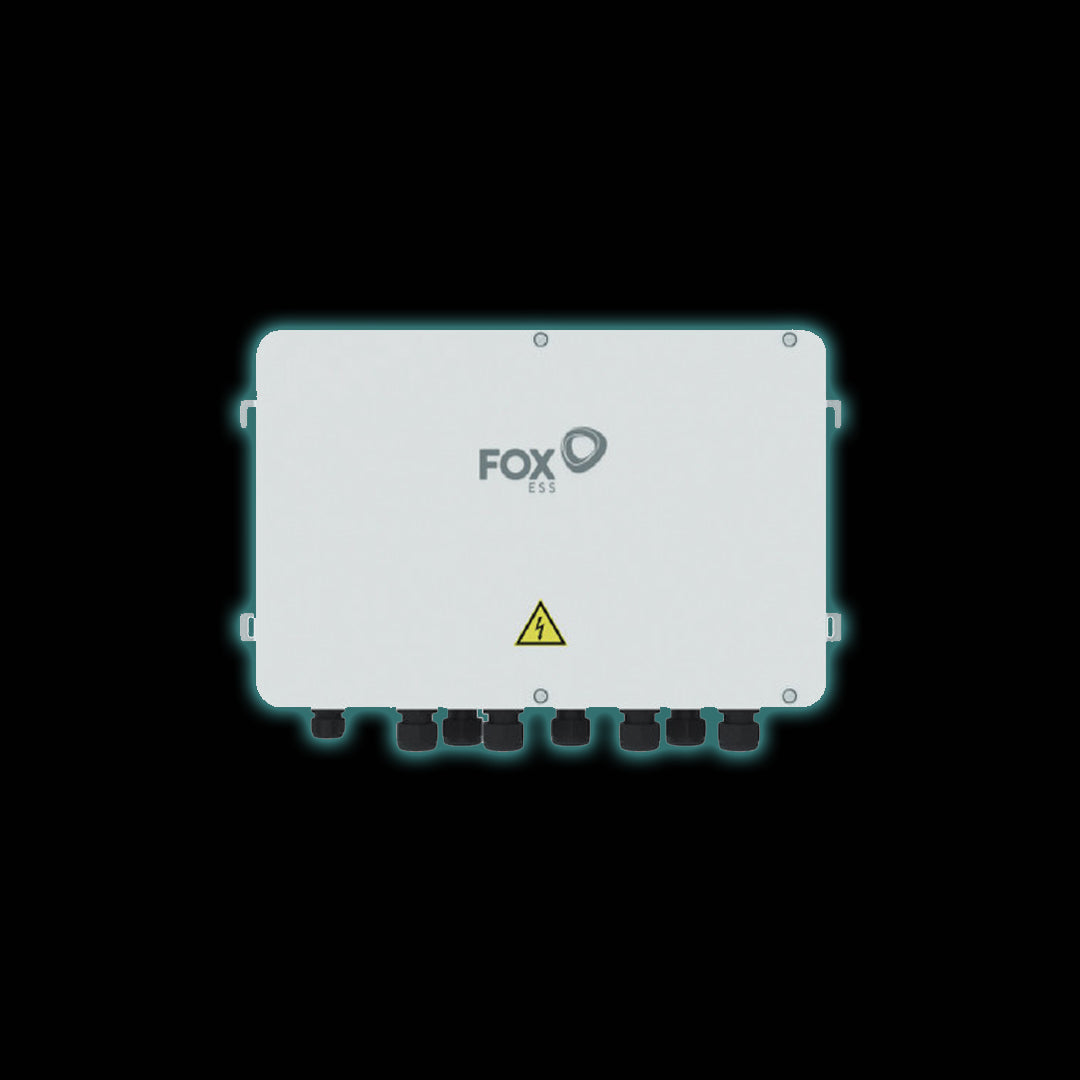

FoxESS Smart Logger

The FoxESS Smart Logger is a high-performance communication and monitoring solution designed to optimize the management of solar energy systems. Built for reliability, flexibility, and seamless integration, this smart data logger enables real-time monitoring, control, and diagnostics for multiple inverters, making it ideal for residential, commercial, and industrial solar installations.

Key Features

• Centralized Monitoring for Multiple Inverters
  Supports connection of up to 30 inverters, allowing efficient system-wide data collection and performance tracking.

• Flexible Communication Options
  Equipped with CAN, RS485, Ethernet, and WiFi connectivity, ensuring compatibility with various system configurations and network environments.

• Plug-and-Play Installation
  Designed for easy setup with a user-friendly configuration process, reducing installation time and simplifying deployment.

• Remote Monitoring and Data Management
  Enables continuous system monitoring with real-time data access for improved operational visibility and faster troubleshooting.

• Industrial-Grade Durability
  IP66-rated enclosure ensures protection against dust, water, and harsh environmental conditions, making it suitable for both indoor and outdoor installations.

• Wide Operating Range
  Functions reliably in extreme temperatures from -30°C to 60°C, ensuring stable performance in diverse climates.

Technical Specifications

• Maximum Inverters Supported: 30
• Communication Interfaces: CAN, RS485, Ethernet (RJ45), WiFi (2.4GHz)
• Digital Inputs: 8 channels (0–24Vdc)
• Digital Outputs: 4 relay outputs (normally open)
• Analog Inputs: 4 channels (0–20mA or 0–10Vdc)
• Power Supply: 85–300Vac, 50/60Hz
• Power Consumption: Typical 20W, Max 30W
• Protection Rating: IP66
• Operating Temperature: -30°C to 60°C
• Dimensions: 450 × 300 × 115 mm
• Mounting: Wall-mounted, suitable for indoor or outdoor use

Why Choose the FoxESS Smart Logger?

The FoxESS Smart Logger is engineered to deliver reliable, scalable energy monitoring with advanced communication capabilities. Whether you are managing a small solar array or a larger distributed energy system, this device ensures efficient data collection, system optimization, and long-term performance stability.

Ideal Applications

• Solar PV system monitoring
• Commercial and industrial energy management
• Multi-inverter installations
• Remote diagnostics and performance tracking
