Ground Mount PV Structure - Imported

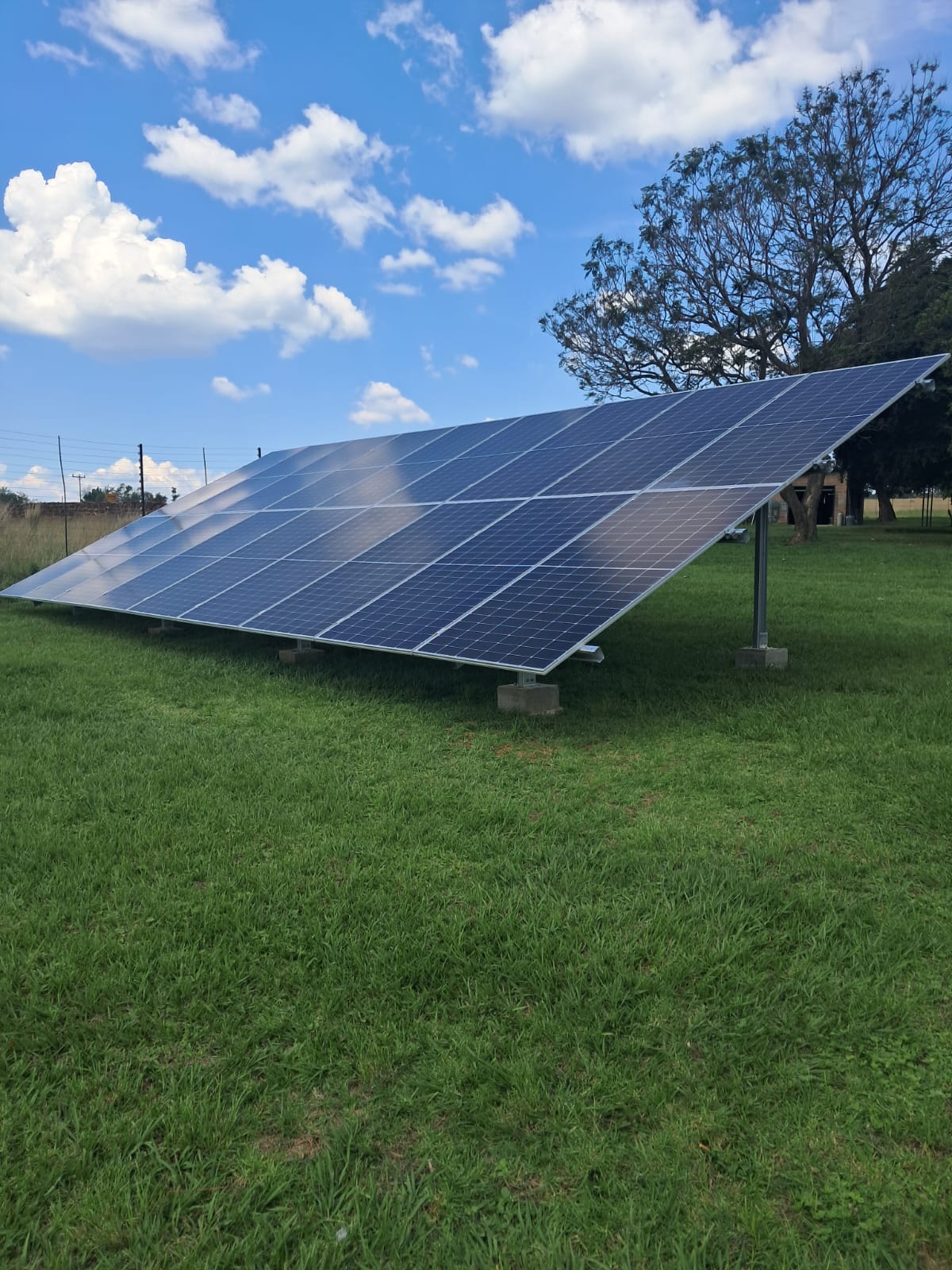

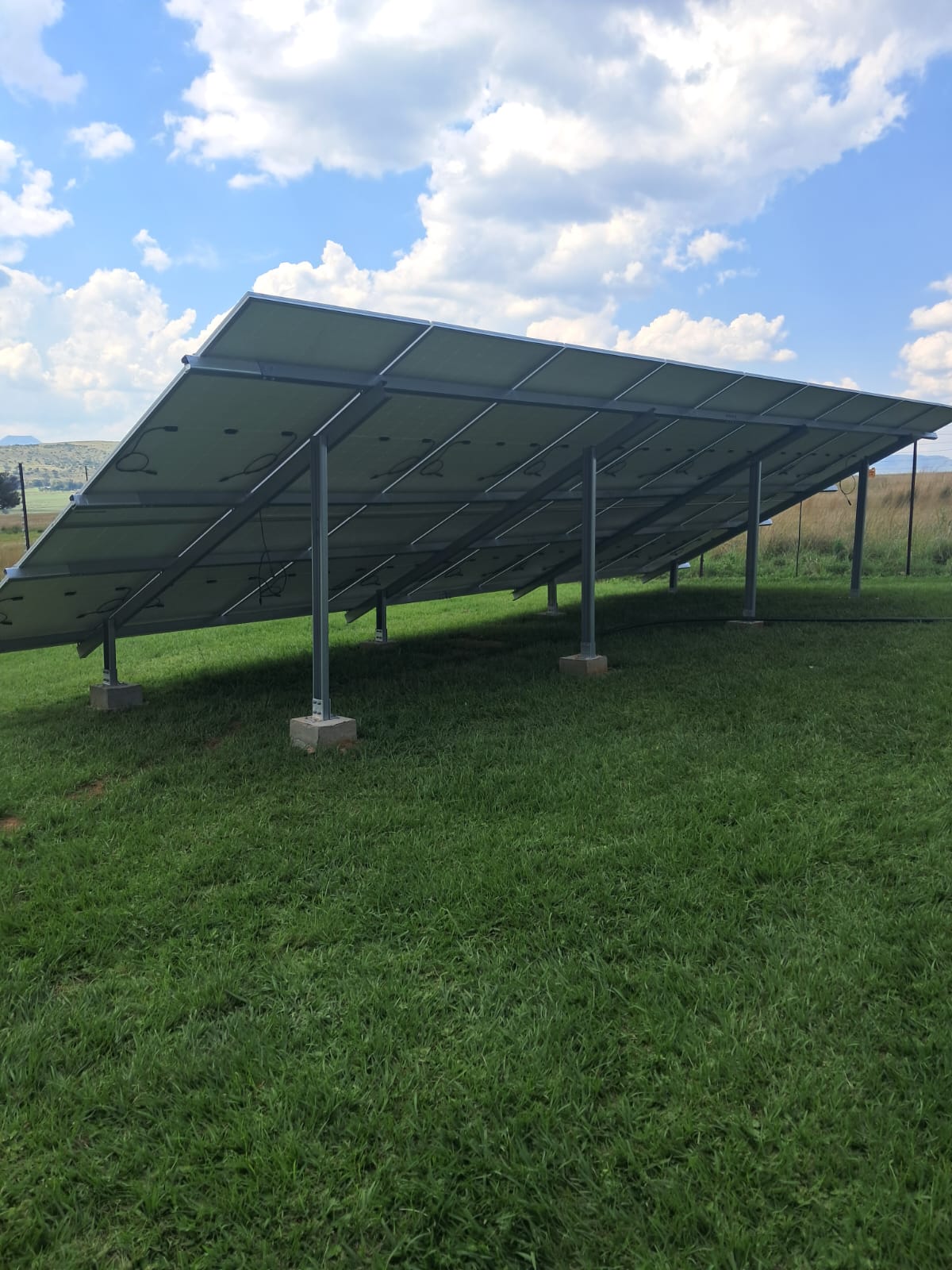

The Ground Mount PV Structure is a pre-engineered solar mounting system designed for fast installation, long-term durability, and reliable structural performance. Built for ground-mounted photovoltaic installations, this system combines modular steel components with precision-punched design to significantly reduce installation time and on-site labor while maintaining strength and stability across a wide range of environments.

This ground mount structure is suitable for commercial, utility-scale, agricultural, and off-grid solar projects. Its flexible modular architecture supports multiple array layouts, including common 2×8 and 2×12 panel configurations, making it adaptable to site-specific requirements and phased installations.

Key Features

• Pre-engineered ground mount PV structure for rapid installation
• Modular design using standardized steel components
• Precision-punched rails, beams, and columns for accurate alignment
• Reduced on-site labor and simplified assembly
• Compatible with multiple module layouts and array sizes
• Designed for long-term outdoor exposure
• Galvanized steel construction for corrosion resistance

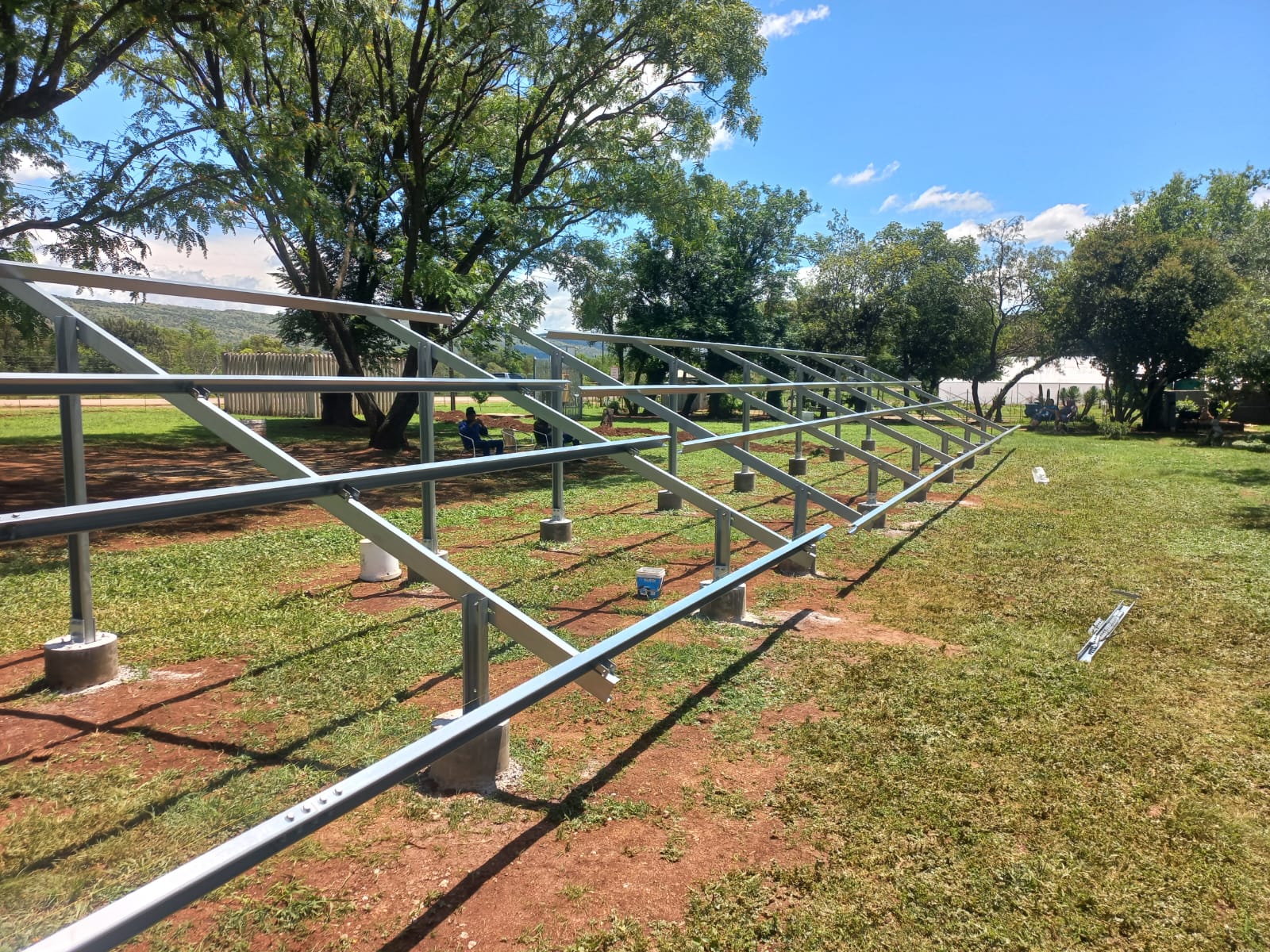

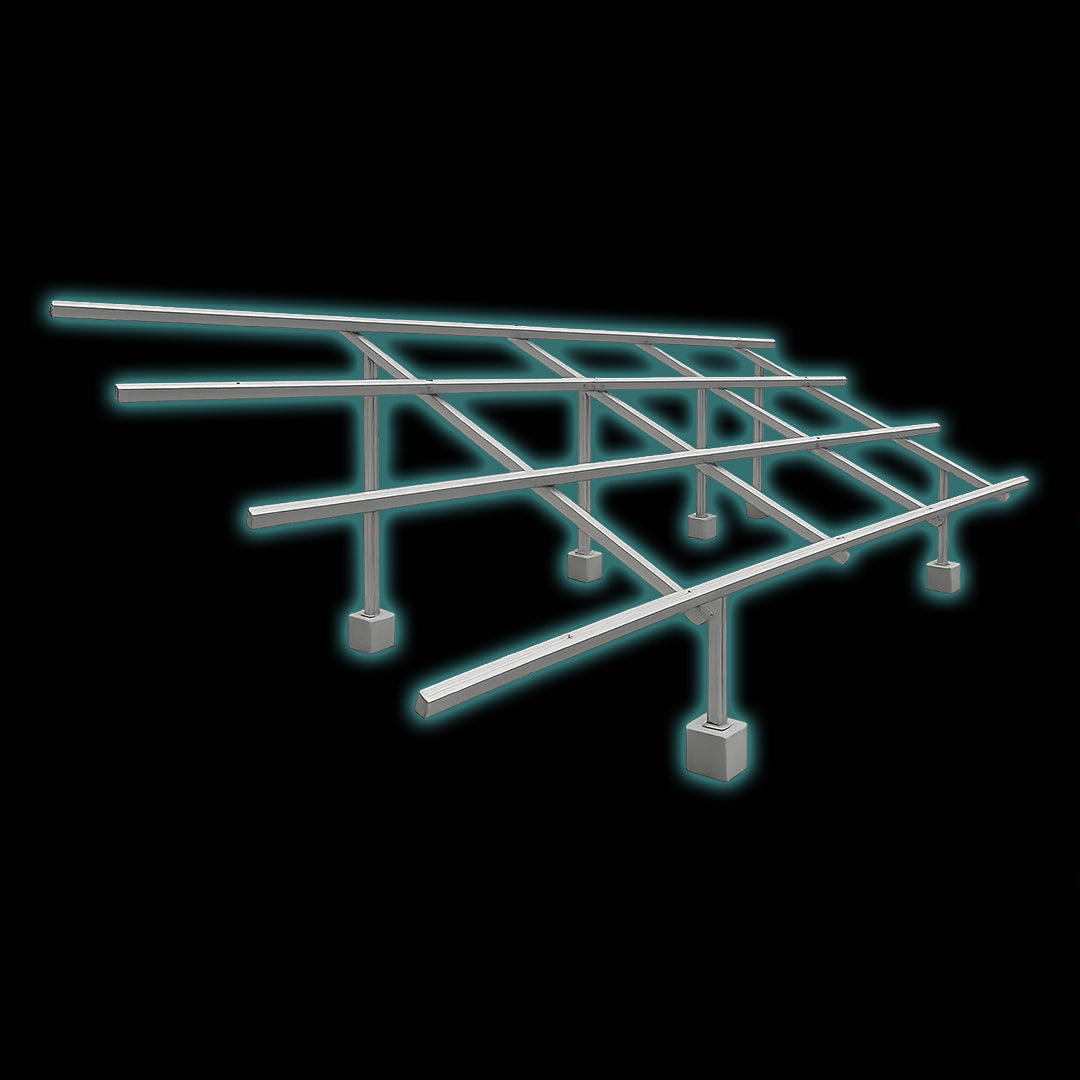

System Components

The Ground Mount PV Structure consists of high-quality structural and fastening elements, including:

• Mounting rails
• Beams and support columns
• Base plates
• Rail connectors and clamps
• End clamps and mid clamps (30 mm / 35 mm module frames)
• High-strength hexagon bolts and fasteners

All components are engineered to integrate seamlessly, ensuring consistent performance and structural integrity.

Structural Performance

• Designed wind speed: up to 40 m/s (3-second gust)
• Suitable for zero snow load regions or site-specific verification
• Designed in accordance with recognized structural principles for PV mounting systems
• Supports industry-standard solar module sizes

Final structural verification can be adapted to specific soil conditions, foundation methods, and local engineering requirements.

Applications

• Utility-scale ground-mounted solar power plants
• Commercial and industrial PV installations
• Agricultural and rural solar projects
• Off-grid and remote power systems
• Expansion-ready solar fields requiring phased deployment

Materials and Finish

• Structural steel extrusions
• Hot-dip galvanized finish for long-term corrosion protection
• Designed for durability in outdoor and demanding environments

Why Choose This Ground Mount PV Structure

This ground mount solution is engineered for reliability, speed, and scalability. Its modular steel design minimizes installation complexity while offering the strength required for long-term solar investments. Whether deployed in a small commercial project or a large solar field, it provides a dependable foundation for efficient photovoltaic energy generation.
