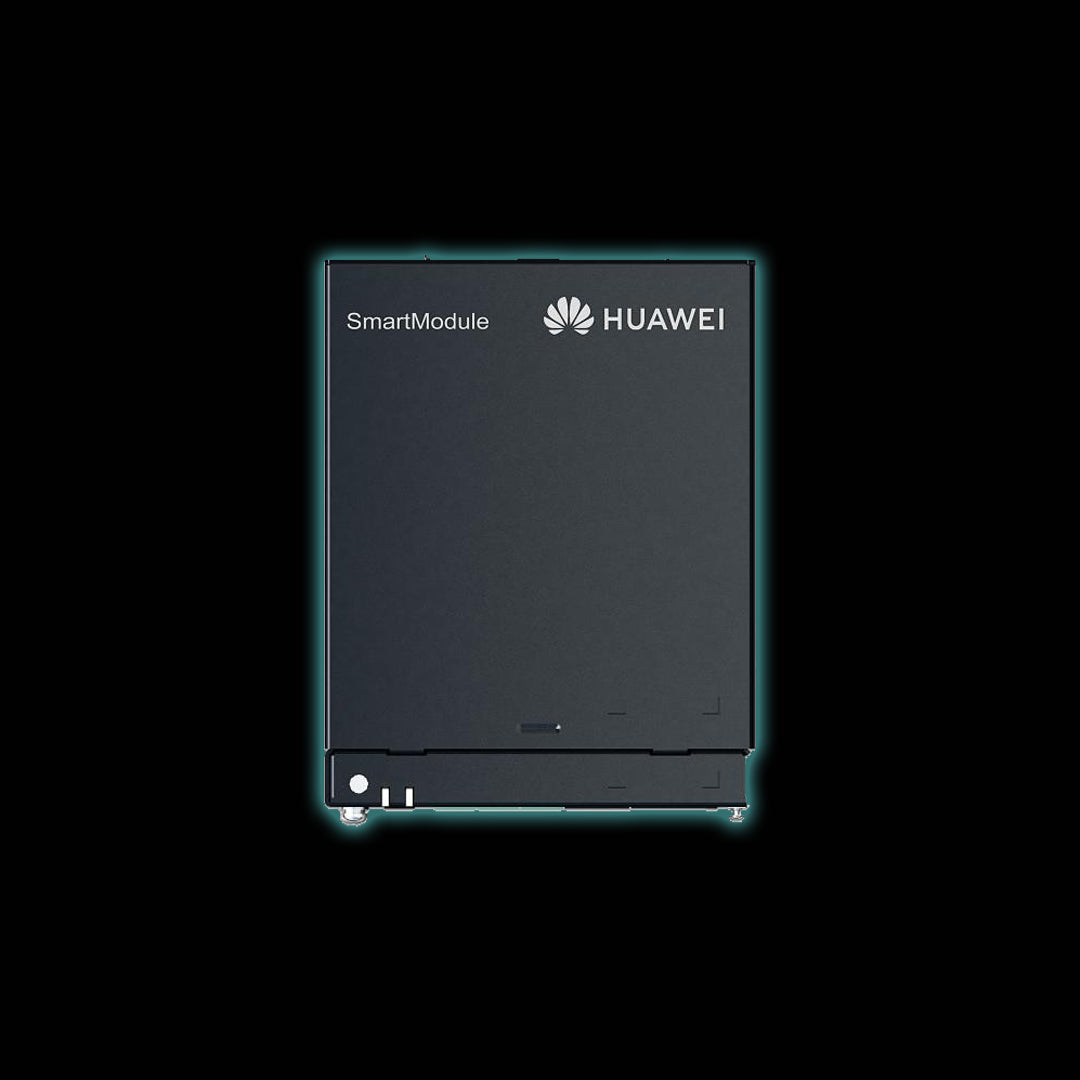

Huawei Smart Module 1000A01

The Huawei Smart Module 1000A01 is a high-performance expansion module designed to enhance the functionality and scalability of Huawei SmartLogger systems in commercial and utility-scale solar photovoltaic installations. Built for advanced plant monitoring and control, this smart module enables increased device connectivity, improved data acquisition, and seamless system integration.

Engineered for large-scale solar environments, the Smart Module 1000A01 supports extended communication capabilities and additional input and output channels, allowing businesses to efficiently manage complex PV systems while improving operational visibility and performance.

Key Features and Benefits

Enhanced System Scalability
Expands SmartLogger capabilities by increasing the number of supported devices and communication interfaces, making it ideal for growing solar installations and large PV plants.

Advanced Device Management
Supports monitoring and control of a wide range of devices including inverters, sensors, and meters, enabling centralized energy management across the entire system.

Extended Communication Interfaces
Equipped with multiple LAN, RS485, and fiber communication options, ensuring stable and flexible connectivity across large-scale solar networks.

Multiple Digital and Analog Inputs and Outputs
Includes expanded digital inputs (DI), digital outputs (DO), and analog inputs (AI), allowing integration with additional sensors and external control systems.

Industrial-Grade Reliability
Designed for continuous operation in harsh environments with a wide operating temperature range and high resistance to humidity and altitude conditions.

Seamless Integration with Huawei Ecosystem
Fully compatible with Huawei SmartLogger platforms and FusionSolar management systems, ensuring efficient deployment and simplified commissioning.

Improved Monitoring and Control
Provides enhanced real-time monitoring capabilities, enabling accurate performance tracking and faster fault detection for optimized system efficiency.

Technical Specifications Overview

• Compatible with Huawei SmartLogger systems
• Expanded LAN and RS485 communication ports
• Optical fiber connectivity via SFP for long-distance communication
• Digital inputs: up to 8 channels
• Digital outputs: 2 channels
• Analog inputs: up to 7 channels
• PT100/PT1000 sensor support
• Power consumption: Typical 10W, maximum 18W
• Dimensions: 350 x 160 x 43.6 mm
• Weight: 3 kg
• Operating temperature: -40°C to 60°C
• Protection rating: IP20

Ideal Applications

• Utility-scale solar PV plants
• Commercial and industrial photovoltaic systems
• Advanced energy monitoring and control systems
• Complex solar installations requiring extended connectivity

Why Choose the Huawei Smart Module 1000A01

Huawei is a global leader in solar and smart energy technology, and the Smart Module 1000A01 is designed to meet the demands of modern, large-scale PV systems. By enabling enhanced connectivity, greater control, and improved monitoring, this module helps maximize energy yield, reduce downtime, and support efficient plant operations.
