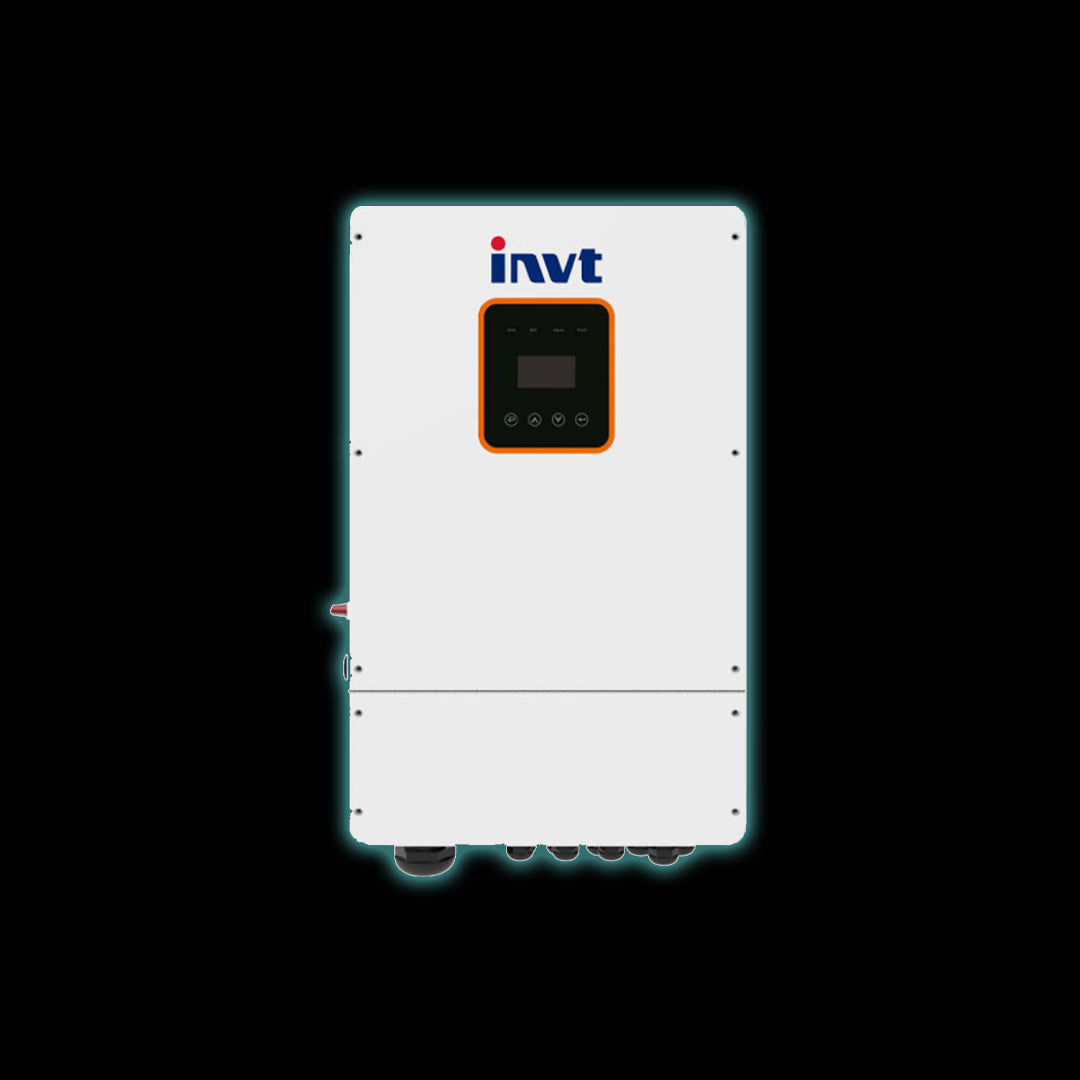

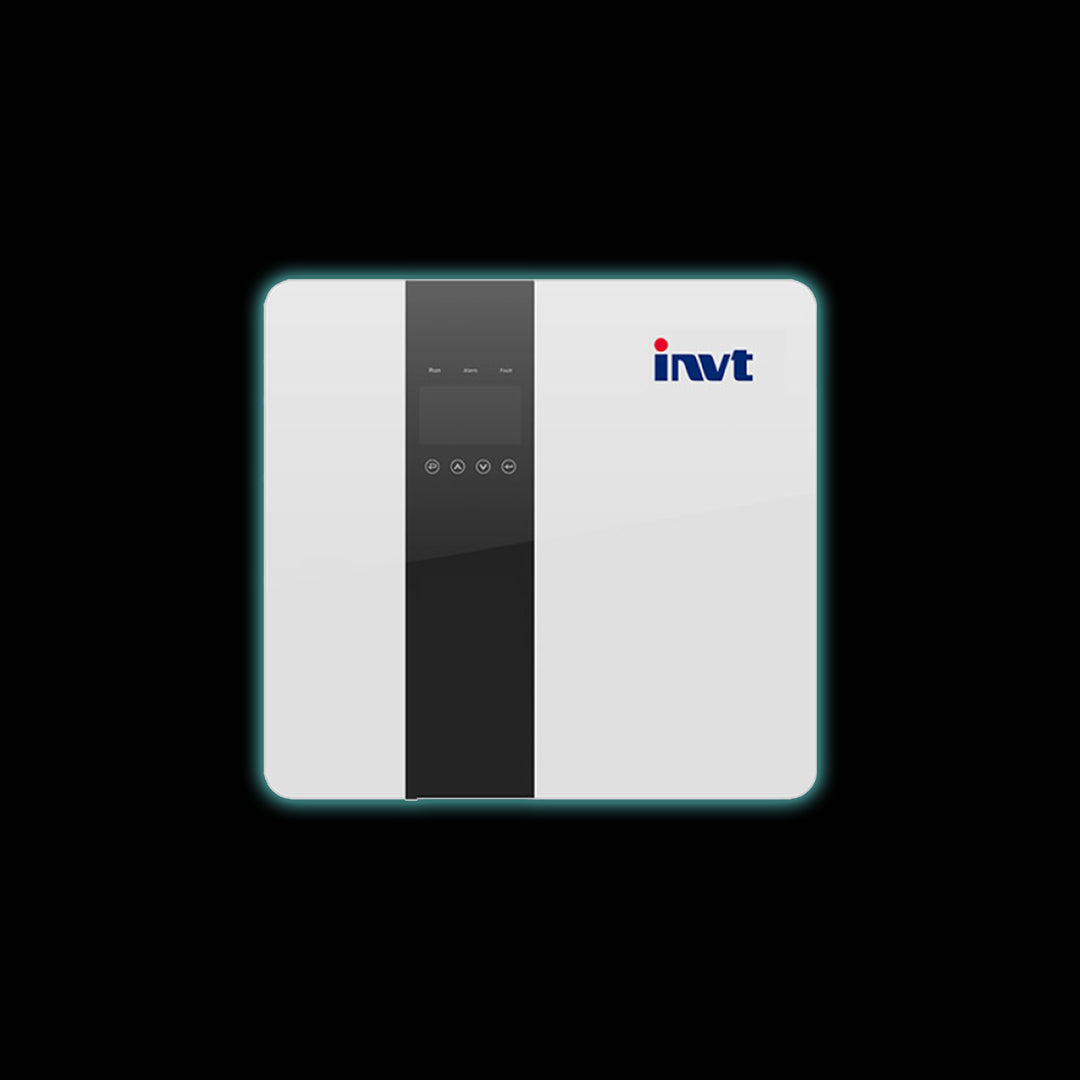

INVT 5kW & 8kW Single Phase Hybrid Inverter

Upgrade your solar energy system with the INVT 5kW & 8kW Single Phase Hybrid Inverter, designed for maximum efficiency, reliability, and smart energy management. Perfect for residential and small commercial applications, this hybrid inverter seamlessly integrates solar power, battery storage, and grid connectivity.

Key Features

• High PV Input Capacity: Supports up to 7kW (5kW model) and 12kW (8kW model) for optimal solar utilization.
• Wide MPPT Voltage Range: 125V – 500V for flexible system design.
• Battery Compatibility: Works with Lithium and Lead-Acid batteries, offering a voltage range of 40V – 58V.
• Fast Switching: Automatic EPS mode activation in <20ms for uninterrupted power during outages.
• High Efficiency:
  • Max DC Efficiency: Up to 98.2%
  • MPPT Efficiency: 99.9%
  • Battery Charge/Discharge Efficiency: Up to 96%
• Smart Communication: Built-in RS485/CAN, optional Wi-Fi/4G for remote monitoring.
• Durable Design: IP65 protection, natural cooling, and operating temperature range from -25°C to +60°C.
• Certified Safety: CE, TUV, and NRS compliant.

Technical Specifications

• Rated Power: 5kVA or 8kVA
• AC Output Voltage: 230V, L+N+PE
• Frequency: 50Hz / 60Hz
• Overload Capability: Up to 150% for short durations
• Dimensions:
  • 5kW: 550 × 515 × 200 mm (25kg)
  • 8kW: 460 × 225 × 760 mm (41kg)

Why Choose INVT Hybrid Inverter?

• Energy Independence: Store excess solar energy for night use or backup.
• Cost Savings: Reduce electricity bills and optimize self-consumption.
• Future-Ready: Compatible with smart grids and advanced battery technologies.

Ideal for homeowners and businesses seeking reliable solar solutions with backup power capability.
Order now and take control of your energy future!

INVT 5kW & 8kW Single Phase Hybrid Inverter Specification Document
