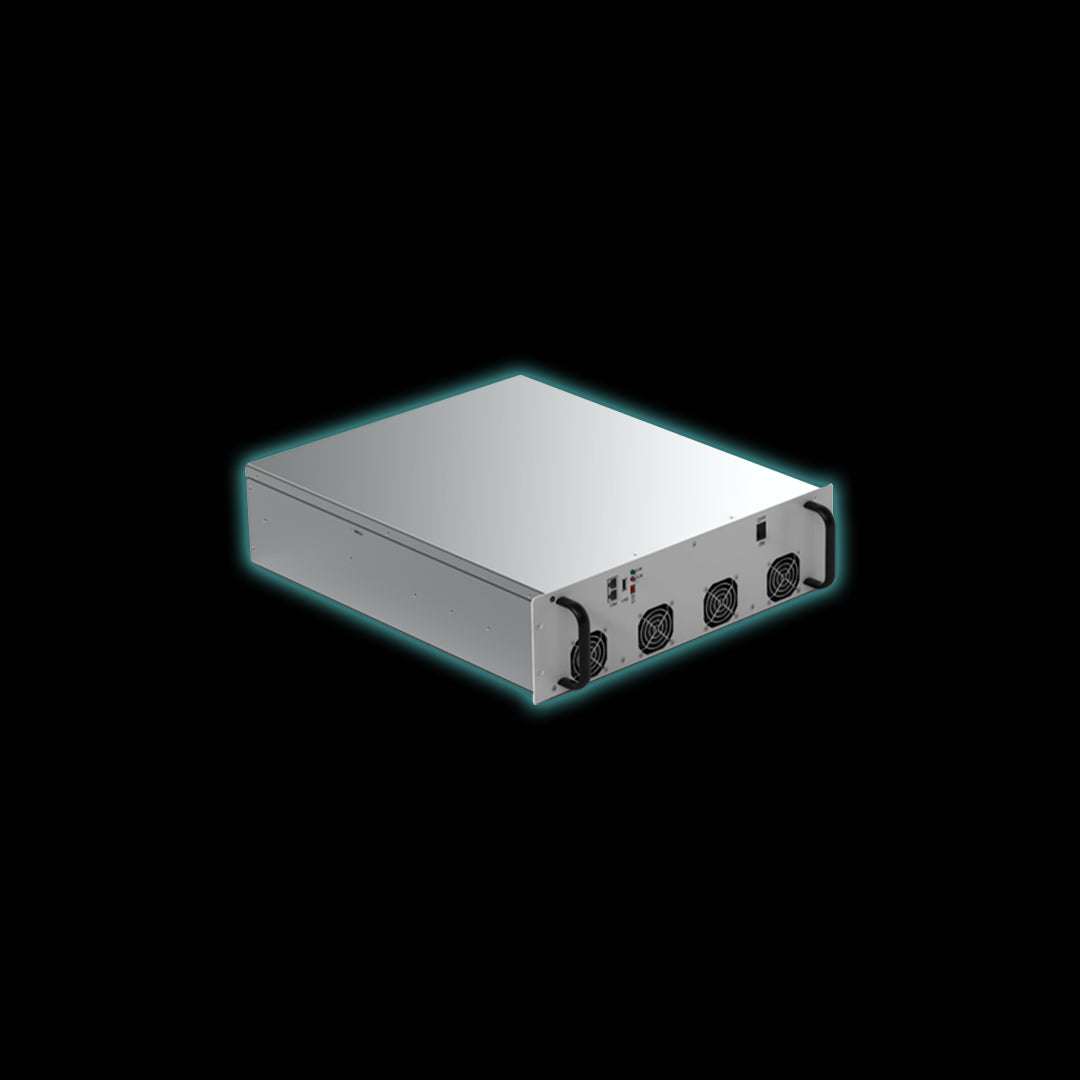

Megarevo PMD-75-G3 75KW MPPT Module

The Megarevo PMD-75-G3 75KW MPPT is a next-generation bi-directional DC/DC power conversion module designed for high-efficiency solar energy systems, battery storage applications, and industrial energy management solutions. Engineered with advanced MPPT technology and ultra-fast protection features, this module delivers exceptional performance, reliability, and flexibility for modern energy infrastructures.

Built for high-power applications, the PMD-75-G3 provides a centralized 75kW design with an industry-leading wide voltage range of 250V to 1000V DC on both input and output, making it ideal for demanding renewable energy and storage installations.

Key Features

• 75kW high-power DC/DC module with centralized design
• Bi-directional buck-boost capability for flexible energy flow
• Ultra-high MPPT efficiency up to 99.9 percent
• Wide operating voltage range from 250V to 1000V DC
• High power density for compact system integration
• Accurate current and voltage sampling with less than 1 percent error
• Ultra-fast protection response time of 3 milliseconds or less
• Smart forced air cooling system for stable operation
• Supports multiple protection mechanisms including overvoltage, overcurrent, and short circuit protection

Advanced MPPT Performance

The Megarevo PMD-75-G3 uses highly accurate Maximum Power Point Tracking to ensure maximum solar energy harvest under varying environmental conditions. With MPPT tracking accuracy exceeding 99 percent, it optimizes energy conversion efficiency and reduces system losses.

Technical Specifications

• Rated Power: 75kW
• Maximum Power: 82.5kW
• MPPT Channels: 1
• PV Voltage Range: 250V to 1000V DC
• Full-Load Voltage Range: 550V to 950V
• Maximum Operating Current: 135A
• Maximum Efficiency: Up to 99 percent
• Operating Temperature Range: -30°C to 60°C
• Protection Rating: IP20
• Noise Level: ≤65 dB
• Cooling Method: Intelligent forced air cooling
• Communication Interface: RS485 and CAN
• Dimensions: 550 x 444 x 133 mm
• Weight: 30 kg

Designed for Modern Energy Applications

This high-efficiency DC/DC module is ideal for:

• Solar power plants
• Battery energy storage systems (BESS)
• Commercial and industrial energy systems
• Hybrid renewable energy solutions
• Grid stabilization and energy management platforms

Reliability and Safety

The PMD-75-G3 is equipped with comprehensive protection features including:

• Over-voltage and under-voltage protection
• Overcurrent and short-circuit protection
• Overtemperature protection
• Lightning protection
• Insulation impedance monitoring

These features ensure long-term operational safety, system stability, and reduced downtime in critical applications.

Why Choose Megarevo PMD-75-G3

The Megarevo PMD-75-G3 stands out as a reliable, high-performance solution for energy professionals seeking efficient and scalable DC power conversion. Its combination of cutting-edge MPPT technology, robust protection features, and flexible voltage compatibility makes it an excellent choice for next-generation renewable energy systems.
