RCT Axpert 5K MK2 48V 5000VA/5000W Inverter - Pre-owned

RCT Axpert 5K MK2 48V 5000VA/5000W Inverter - Pre-owned

Regular price R 2,556.00 ZAR
Regular price Sale price R 2,556.00 ZAR
Sale Sold out
Tax included.

CONTACT US FOR RESELLER PRICING

Condition: Good, Used.

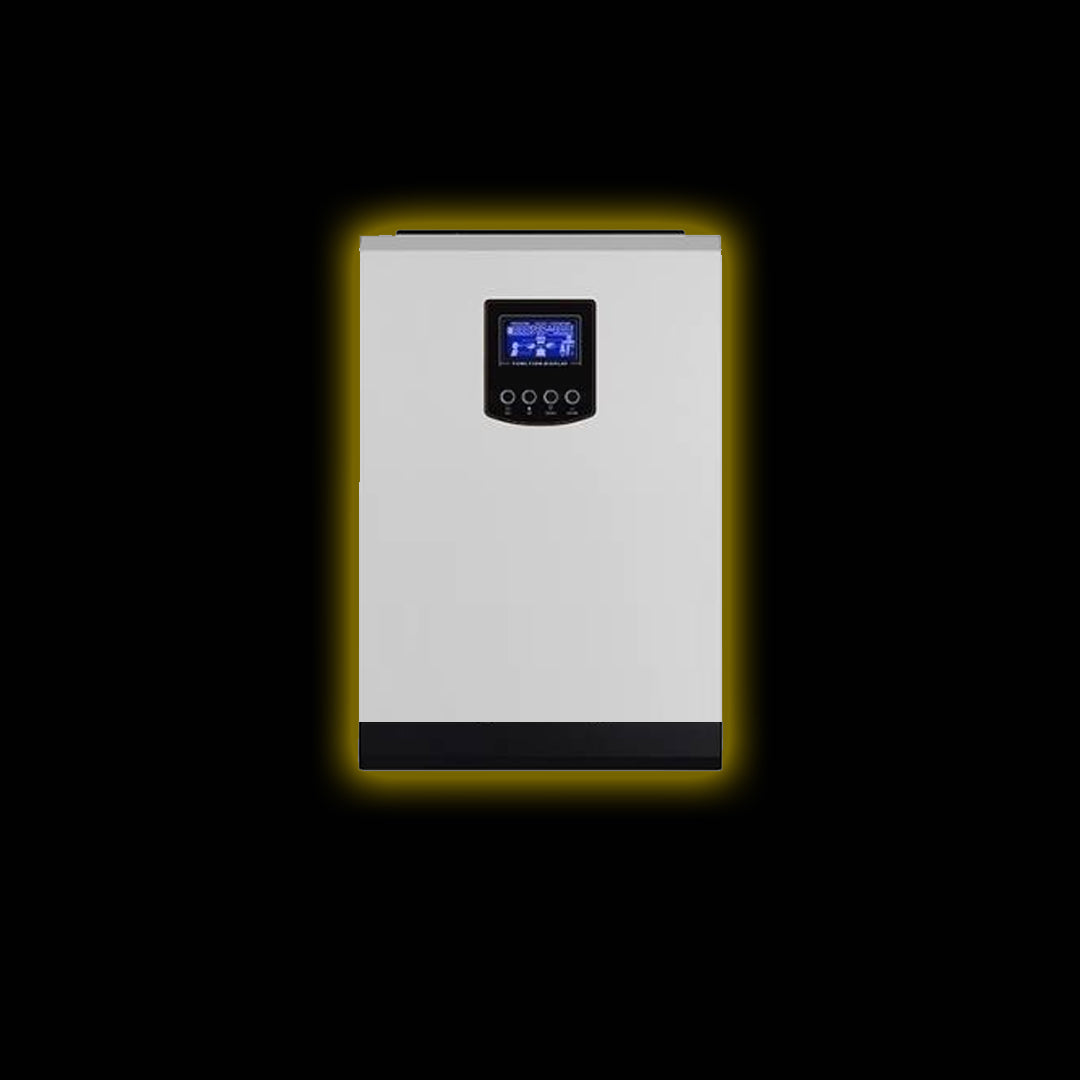

RCT Axpert 5K Hybrid Inverter

The RCT Axpert 5K is a versatile 5000VA/4000W pure sine wave inverter, designed to provide seamless backup power and efficient solar energy integration.  Equipped with a built-in MPPT solar charge controller and configurable settings, it's ideal for both residential and commercial applications.

Key Features:

Pure Sine Wave Output: Ensures compatibility with sensitive electronics.

Built-in MPPT Solar Charge Controller: Maximizes solar energy utilization with up to 3000W PV input.

Configurable Input Voltage Range: Adaptable for home appliances and personal computers.

Selectable Charging Current: Tailor charging to your specific battery requirements.

AC/Solar Input Priority: Set your preferred power source via the intuitive LCD interface.

Parallel Operation: Connect up to 6 units for expanded capacity up to 30KVA.

Robust Protection: Features overload, short circuit, and overcharge safeguards.

Smart Battery Charger: Optimizes battery performance and longevity.

Cold Start Function: Allows inverter startup without AC power.


Specifications:

Rated Power: 5000VA/4000W

Input Voltage: 230 VAC

Selectable Voltage Range: 170-280 VAC (PC), 90-280 VAC (Home Appliances)

Frequency Range: 50 Hz/60 Hz (Auto sensing)

Surge Power: 10000VA

Efficiency (Peak): 93%

Transfer Time: 10 ms (PC), 20 ms (Home Appliances)

Battery Voltage: 48 VDC

Floating Charge Voltage: 54 VDC

Overcharge Protection: 60 VDC

Maximum Charge Current: 20 A or 30 A

Maximum PV Array Power: 3000 W

MPPT Range @ Operating Voltage: 60VDC ~115VDC

Maximum PV Array Open Circuit Voltage: 145 VDC

Maximum Charging Current: 60A

Maximum Efficiency: 98%

Standby Power Consumption: 2 W

Dimensions (D x W x H): 140 x 295 x 540 mm

Net Weight: 13.5 kg

Operating Temperature: 0°C - 55°C

Storage Temperature: -15°C - 60°C

Humidity: 5% to 95% Relative Humidity (Non-condensing)


Installation Requirements:

Batteries: 4 x 12V Deep Cycle Batteries (to achieve 48V)

Cabling: 200A cable or dual 100A/150A cables

Safety Components: Box with trip switch and earth leakage

Professional Installation: Recommended to ensure safety and compliance


Solar Integration (Optional):

Solar Panels: Up to 12 x 250W Solar PV Panels

Cabling: 4mm PV Cable (100m)

Connectors: MC4
