Deye BOS B Pro-A3 High Voltage Battery Energy Storage System

Deye BOS B Pro-A3 High Voltage Battery Energy Storage System

R 34,662.00 ZAR
R 34,662.00 ZAR
Sale Sold out
Tax included.

Deye BOS B Pro-A3 High Voltage Battery Energy Storage System

CONTACT US FOR RESELLER PRICING

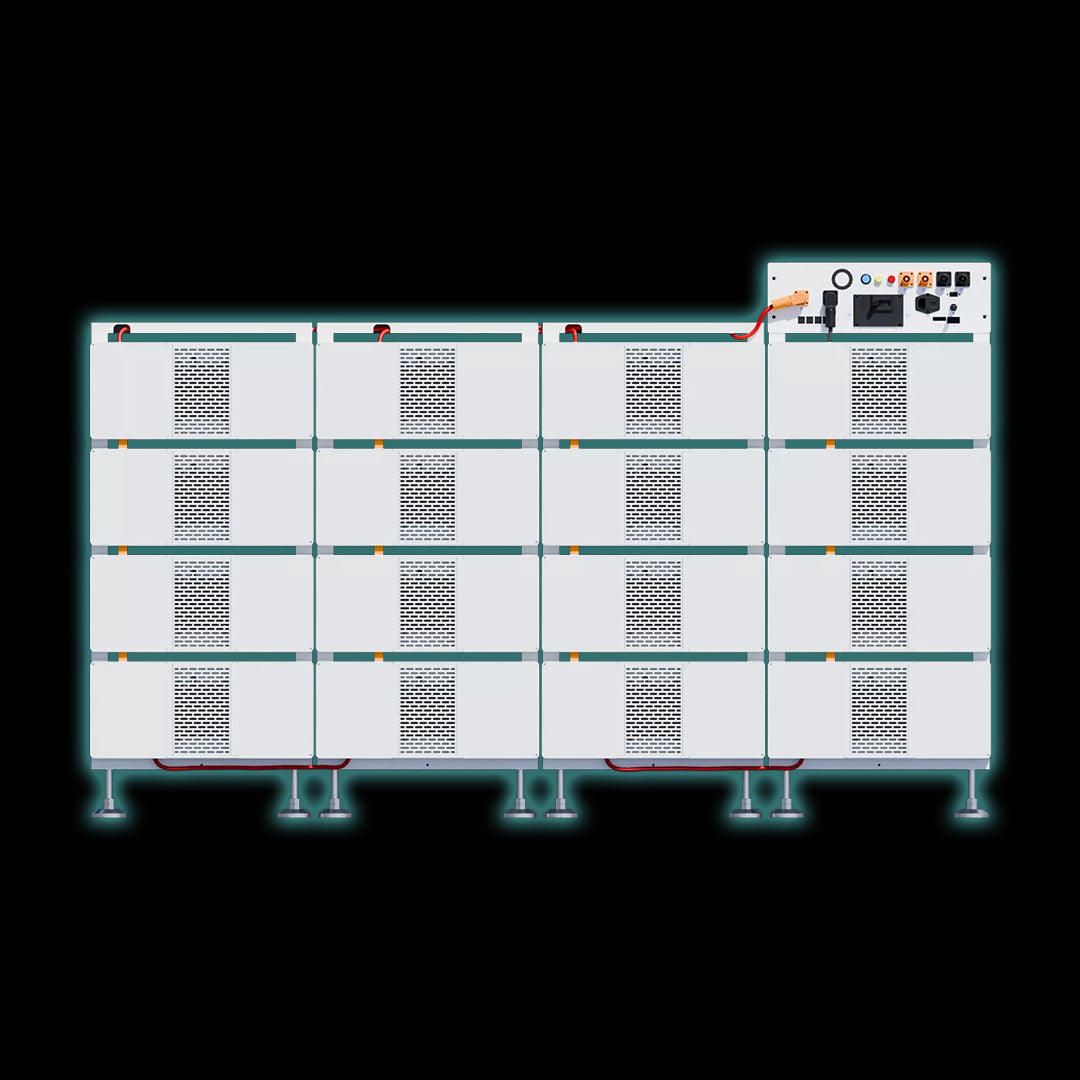

The Deye BOS B Pro-A3 is a modular commercial and industrial (C&I) high-voltage lithium iron phosphate (LiFePO₄) battery energy storage system designed for solar energy storage, backup power, peak shaving, load shifting, and large-scale energy management applications. Its scalable architecture supports up to 16 battery modules in series and up to 16 battery racks in parallel, enabling deployments up to 2.3MW / 4.1MWh.

Key Features

  • Lithium Iron Phosphate (LiFePO₄) battery technology
  • Modular and scalable design
  • Up to 16 battery modules per rack
  • Up to 16 racks in parallel
  • Supports systems up to 2.3MW / 4.1MWh
  • Intelligent Battery Management System (BMS)
  • Advanced cell balancing technology
  • Peak shaving and load management
  • Off-grid backup capability
  • Bluetooth monitoring and LCD display
  • CAN, RS485 and TCP communication protocols
  • Smart fan cooling
  • Aerosol fire extinguishing support
  • Operating temperature range: -20°C to 55°C
  • 10-year warranty
  • Cycle life ≥ 6,000 cycles at 90% DoD

Battery Module Specifications (BOS-B-Pack16-A3)

  • Battery Chemistry: LiFePO₄ (LFP)
  • Nominal Capacity: 314Ah
  • Nominal Energy: 16.08kWh
  • Nominal Voltage: 51.2VDC
  • Max Charge/Discharge Current: 180A
  • Charge Temperature: 0°C to 55°C
  • Discharge Temperature: -20°C to 55°C
  • Storage Temperature: 0°C to 35°C
  • Protection Rating: IP20
  • Dimensions (W × D × H): 795.9 × 526 × 274.2 mm
  • Weight: 126 kg

Battery Management Unit (BOS-B-PDU-2-A)

  • Operating Voltage Range: 200V to 1000V DC
  • Nominal Charge/Discharge Current: 180A
  • Operating Temperature: -20°C to 60°C
  • Protection Rating: IP20
  • AC Input Rating: 220VAC ±10%, 2A
  • Dimensions (W × D × H): 788.6 × 526 × 167.2 mm
  • Weight: 32 kg

System Specifications

  • Round Trip Efficiency: 90%
  • Recommended Depth of Discharge (DoD): 90%
  • Cycle Life: ≥ 6,000 Cycles
  • Installation Type: Rack Mounted
  • Communication Ports: CAN, RS485, TCP
  • Humidity Range: 5% to 85%
  • Maximum Operating Altitude: 3000 m
  • Enclosure Rating: IP20
  • Thermal Management: Smart Fan Cooling
  • Display: LCD SOC & Fault Code Display
  • Certifications: CE, IEC62619, IEC62040, UN38.3
  • Warranty: 10 Years

Rack Configurations

Configuration Nominal Voltage System Energy
5 Modules 256V 80.3kWh
6 Modules 307.2V 96.4kWh
8 Modules 409.6V 128.6kWh
10 Modules 512V 160.7kWh
12 Modules 614.4V 192.9kWh
14 Modules 716.8V 225.0kWh
16 Modules 819.2V 257.2kWh

Dimensions & Weight by Rack Size

  • 5 Module System (80.3kWh): 1067 × 1305 × 800 mm, 758 kg
  • 8 Module System (128.6kWh): 1608 × 1305 × 800 mm, 1136 kg
  • 12 Module System (192.9kWh): 2150 × 1305 × 800 mm, 1688 kg
  • 16 Module System (257.2kWh): 2150 × 1305 × 800 mm, 2240 kg

Applications

The Deye BOS B Pro-A3 is ideal for commercial and industrial energy storage projects, solar self-consumption systems, microgrids, backup power solutions, peak-demand reduction, energy arbitrage, load management, and renewable energy integration. Its scalable architecture and intelligent control capabilities make it a future-ready solution for businesses seeking reliable, cost-effective, and sustainable energy storage.

Specifications Document

View full details
