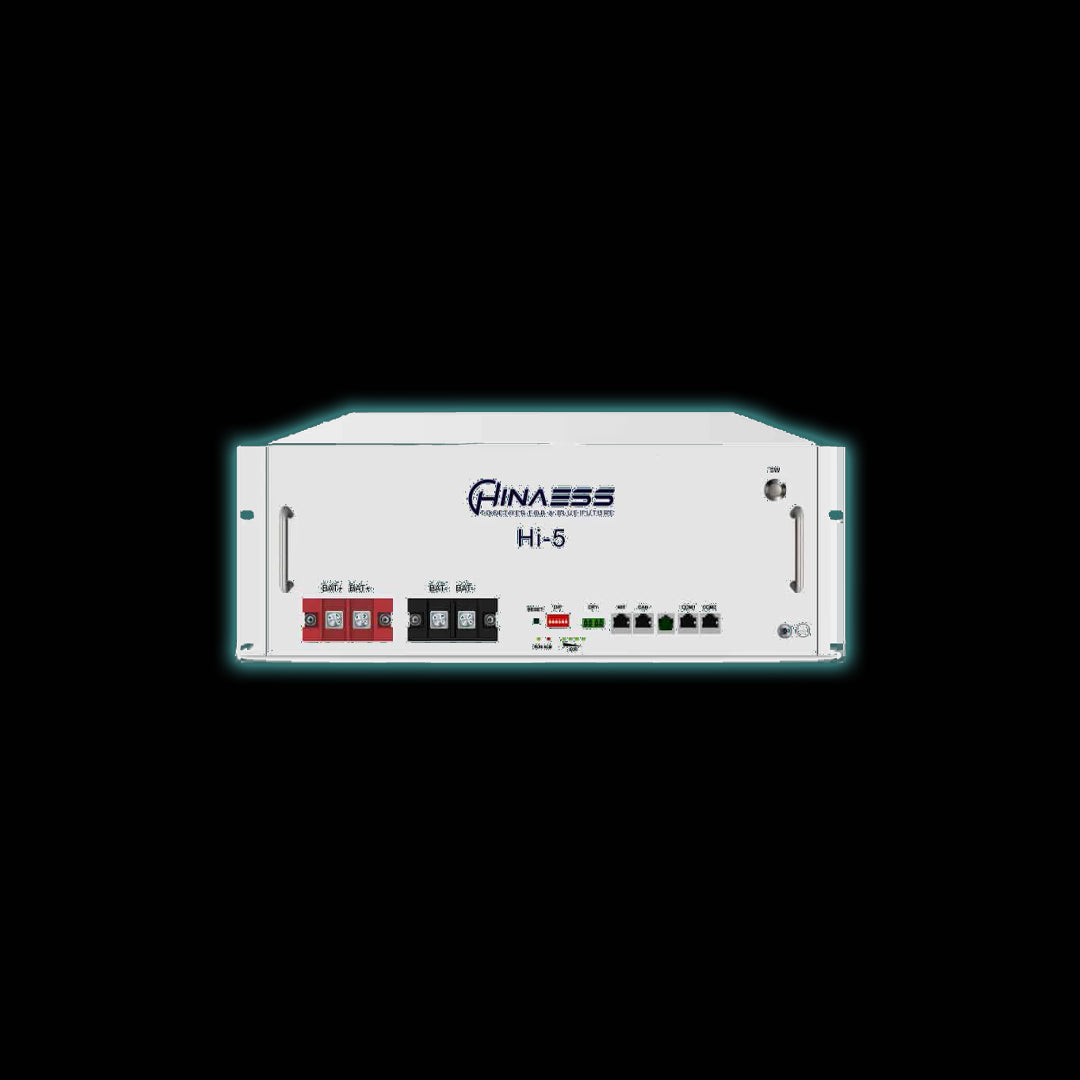

HinaESS 5.12kWh Hi-5 Lithium Battery

The HinaESS 5.12kWh Hi-5 Battery is a high-performance lithium iron phosphate (LFP) energy storage solution designed for residential, commercial, and backup power applications. Engineered for safety, scalability, and long service life, the Hi-5 battery is ideal for solar self-consumption, load shedding protection, and off‑grid or hybrid energy systems.

Built with advanced LFP chemistry, an intelligent Smart BMS, and wide inverter compatibility, the Hi-5 delivers reliable energy storage with consistent power output and long-term durability.

Key Features and Benefits

• 5.12kWh usable energy capacity for dependable daily cycling
• Lithium Iron Phosphate (LFP) cells for superior safety and thermal stability
• 1C continuous charge and discharge rate for high-power performance
• Parallel expandable up to 32 units without additional control hardware
• Smart Battery Management System (BMS) for real-time protection and monitoring
• 10-year warranty with up to 6000 cycles at 90% depth of discharge
• Remote firmware upgrade and monitoring support
• Automatic module recovery — individual battery failure does not stop system operation
• Ultra-safe multi-layer protection against overcharge, over-discharge, short circuit, temperature, and reverse connection

Technical Specifications

Model: Hi-5
Rated Energy: 5.12kWh
Rated Capacity: 100Ah
Nominal Voltage: 51.2V
Charge Voltage: 57.2V
Cell Type: Lithium Iron Phosphate (LFP)
Maximum Charge/Discharge Current: 100A
Peak Discharge Current:

• 105A for 15 seconds
• 150A for 0.5 seconds
  Depth of Discharge: 90%
  Cycle Life: Up to 6000 cycles
  Operating Temperature: -20°C to +55°C
  Humidity Range: 5%–85% RH (non-condensing)
  Ingress Protection: IP20
  Dimensions: 481 × 452.6 × 165 mm
  Weight: 48.5 kg

Inverter Compatibility

The HinaESS Hi-5 battery supports CAN and RS485 communication and is compatible with a wide range of leading inverter brands, including:

Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Sol-Ark, SRNE, Must

Safety and Certifications

• CE Certified
• UN38.3 Transport Safety
• IEC 62619 Compliant
• Integrated protections for voltage, current, temperature, short circuit, and low state of charge

Ideal Applications

• Residential solar energy storage
• Load shedding backup power systems
• Off-grid and hybrid solar installations
• Commercial and light industrial energy storage
• Modular battery banks requiring future expansion

Why Choose the HinaESS Hi-5 Battery

The HinaESS 5.12kWh Hi-5 battery combines long lifespan, high safety, and flexible scalability into a compact, professionally engineered energy storage solution. With its ability to grow up to 32 parallel units and maintain stable operation even during module interruption, it is designed for long-term reliability in demanding real‑world conditions.

A smart investment for anyone seeking dependable lithium battery storage with proven performance and future-ready design.
