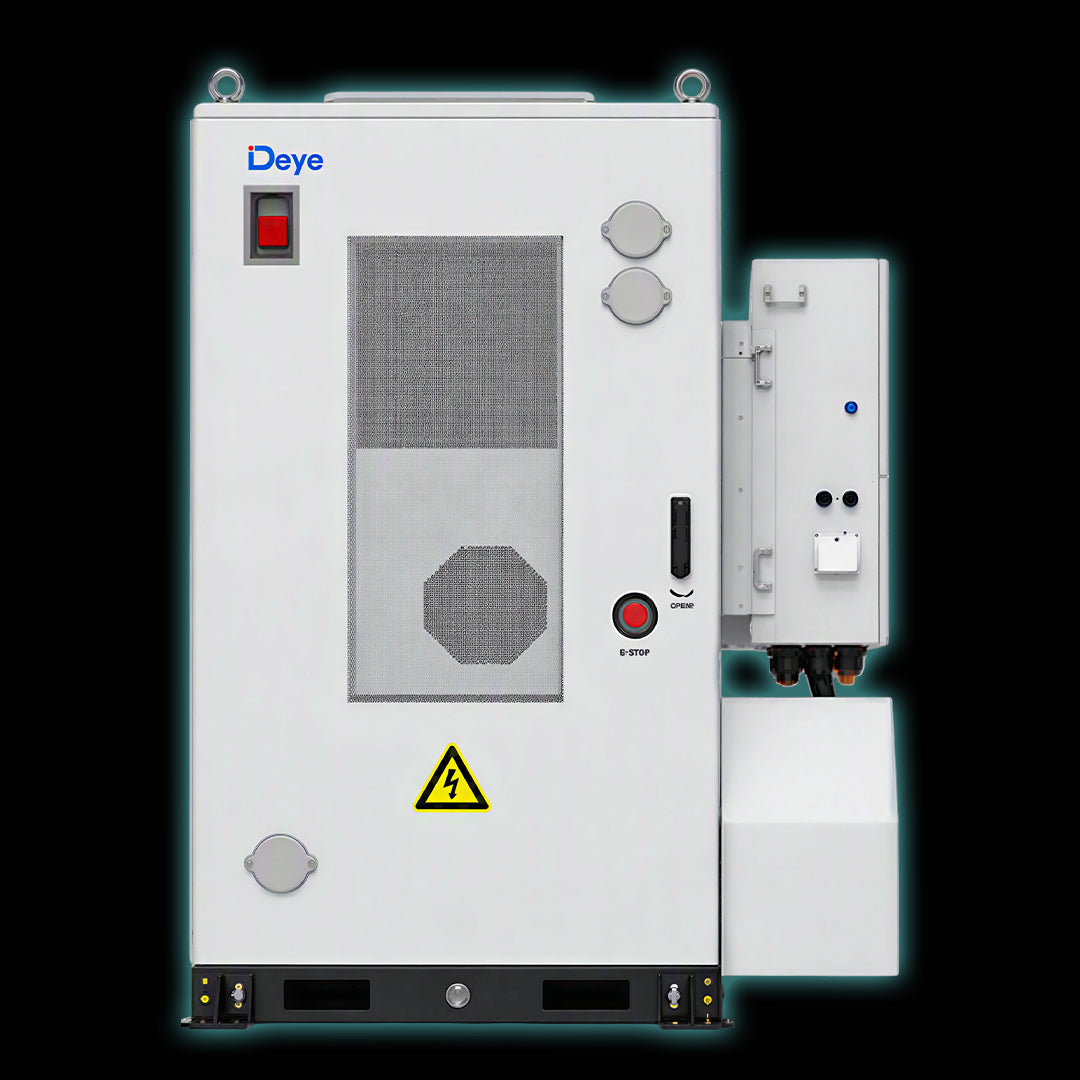

Deye Orion E GE-F240 BESS 241kWh Battery Cabinet with 80kW High Voltage Hybrid Inverter

The Deye Orion E GE-F240 BESS is a fully integrated commercial and industrial Battery Energy Storage System (BESS) combining a high-capacity 241.15kWh Lithium Iron Phosphate (LiFePO4) battery cabinet with a powerful 80kW high-voltage hybrid inverter. Designed for commercial buildings, industrial facilities, agricultural operations, warehouses, shopping centres, schools, hospitality venues, and microgrid applications, this advanced energy storage solution enables businesses to reduce electricity costs, maximise solar self-consumption, improve energy resilience, and maintain reliable backup power.

The GE-F240 features an IP55-rated outdoor cabinet, intelligent air-cooled thermal management, and Deye's advanced EMS, PCS, and BMS architecture for complete energy optimisation and system control. With support for solar PV, utility grid, generators, and critical loads, the Orion E platform provides a scalable and future-ready energy storage solution for demanding commercial environments.

Key Features

• 241.15kWh Battery Energy Storage System (BESS) capacity
• Includes Deye 80kW High Voltage Hybrid Inverter
• Premium Lithium Iron Phosphate (LiFePO4) battery technology
• IP55-rated outdoor cabinet for harsh environmental conditions
• Smart air conditioner cooling system for optimal thermal performance
• More than 8,000 battery cycles for long operational life
• Supports on-grid, off-grid, hybrid and backup power applications
• Integrated EMS, PCS and BMS intelligent control system
• Compatible with solar PV, grid, generators and load management systems
• Up to 10 battery cabinets can be connected in parallel for capacity expansion up to 2.4MWh
• Up to 10 inverter systems can be paralleled for power expansion up to 0.8MW
• 10-year manufacturer warranty

Advanced Safety Protection

The Deye Orion E GE-F240 incorporates a six-dimensional safety architecture designed to deliver maximum protection in commercial and industrial installations:

• Electrical isolation protection
• Fire detection system
• Active exhaust ventilation
• Explosion venting technology
• Fire suppression interface
• Thermal isolation protection

Additional safety features include CO gas detection, active exhaust systems, high-strength cabinet construction, patented door latch technology, and hour-level fire resistance designed to minimise operational and fire-related risks.

High-Efficiency Energy Storage Performance

Built with advanced LiFePO4 battery chemistry, the GE-F240 delivers exceptional reliability, safety, and long-term performance. The intelligent thermal management system maintains cell temperature variations within 6°C and allows operation at temperatures up to 45°C without derating.

The included 80kW high-voltage hybrid inverter supports solar energy generation, battery storage, grid interaction, load management, and generator integration, enabling businesses to achieve lower energy costs and greater energy independence.

Physical Specifications

• Dimensions (W × D × H): 1303 × 1240 × 2405.5 mm
• Weight: 2,610 kg
• Installation: Floor Mounted Outdoor Cabinet
• Protection Rating: IP55
• Corrosion Protection: C4-M Standard (Upgradeable to C5)

Technical Specifications

• Battery Capacity: 241.15kWh
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 768VDC
• Operating Voltage Range: 600VDC to 876VDC
• Rated DC Power: 121kW
• Maximum Charge/Discharge Current: 180A
• Peak Discharge Current: 285A (15 Seconds)
• Operating Temperature: -30°C to +55°C
• Humidity Range: 5% to 95% RH (Non-Condensing)
• Communication Protocols: CAN 2.0, RS485, Modbus
• Maximum Altitude: 3000m
• Cycle Life: ≥8,000 Cycles
• Warranty: 10 Years

Ideal Applications

• Commercial Buildings
• Industrial Facilities
• Manufacturing Plants
• Warehouses and Distribution Centres
• Agricultural Facilities
• Shopping Centres
• Hotels and Hospitality Venues
• Educational Campuses
• Solar Energy Storage Projects
• Backup Power Systems
• Peak Shaving and Load Shifting Projects
• Microgrids and Energy Resilience Applications

The Deye Orion E GE-F240 BESS 241kWh Battery Cabinet with 80kW High Voltage Hybrid Inverter delivers enterprise-grade energy storage performance, advanced safety systems, intelligent energy management, and exceptional scalability. Ideal for commercial and industrial users seeking reliable backup power, reduced electricity costs, and maximum solar energy utilisation, the GE-F240 offers a powerful and future-ready energy storage solution.
