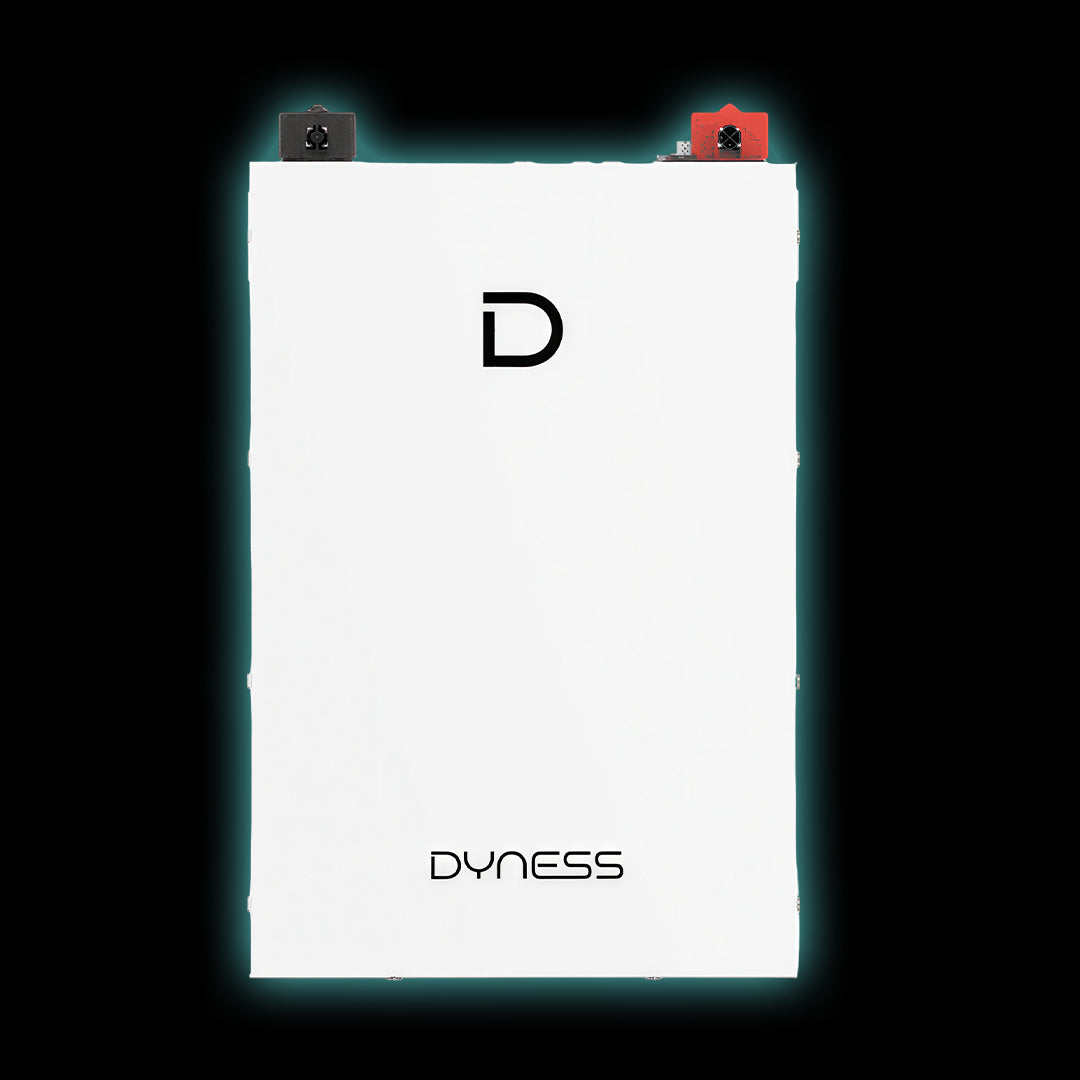

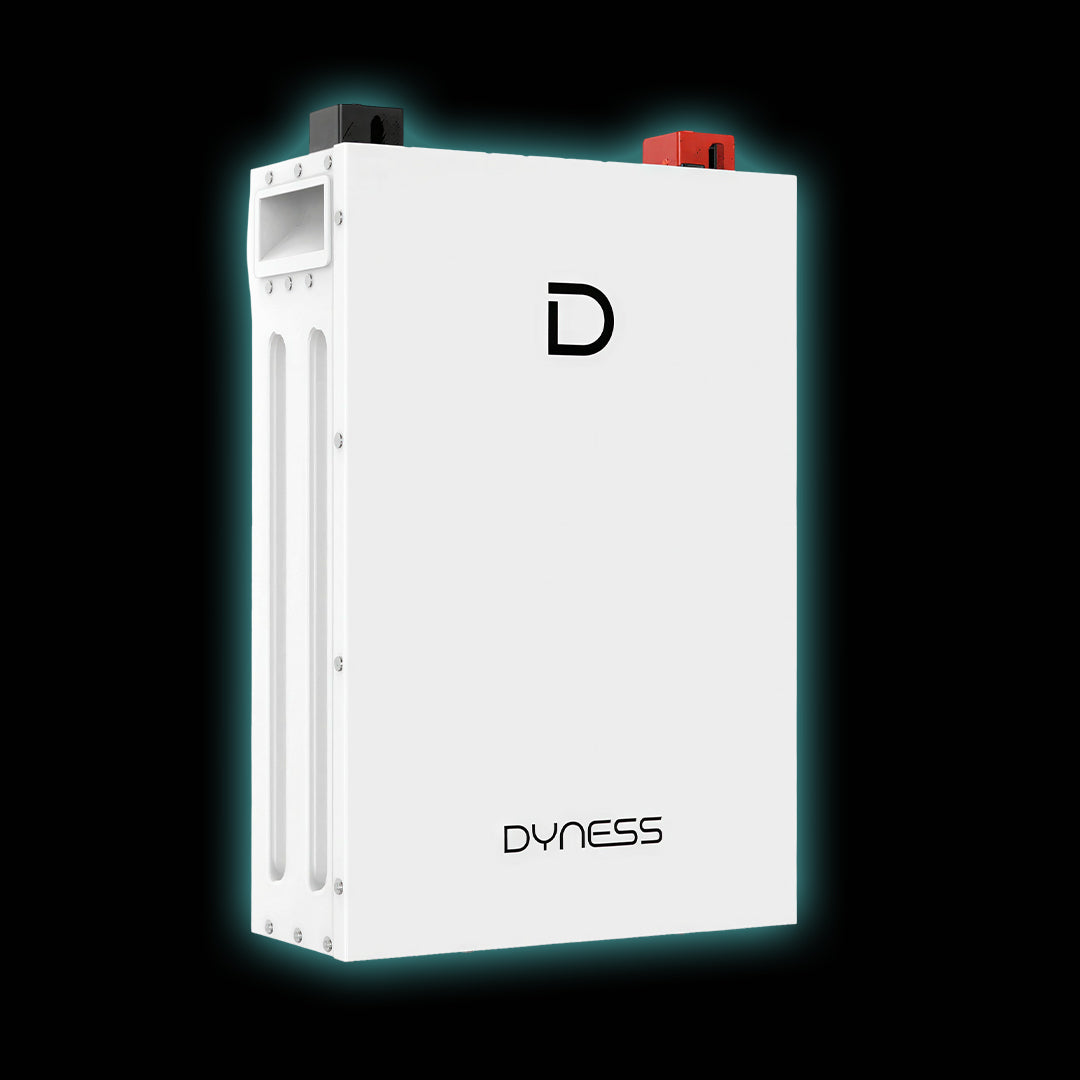

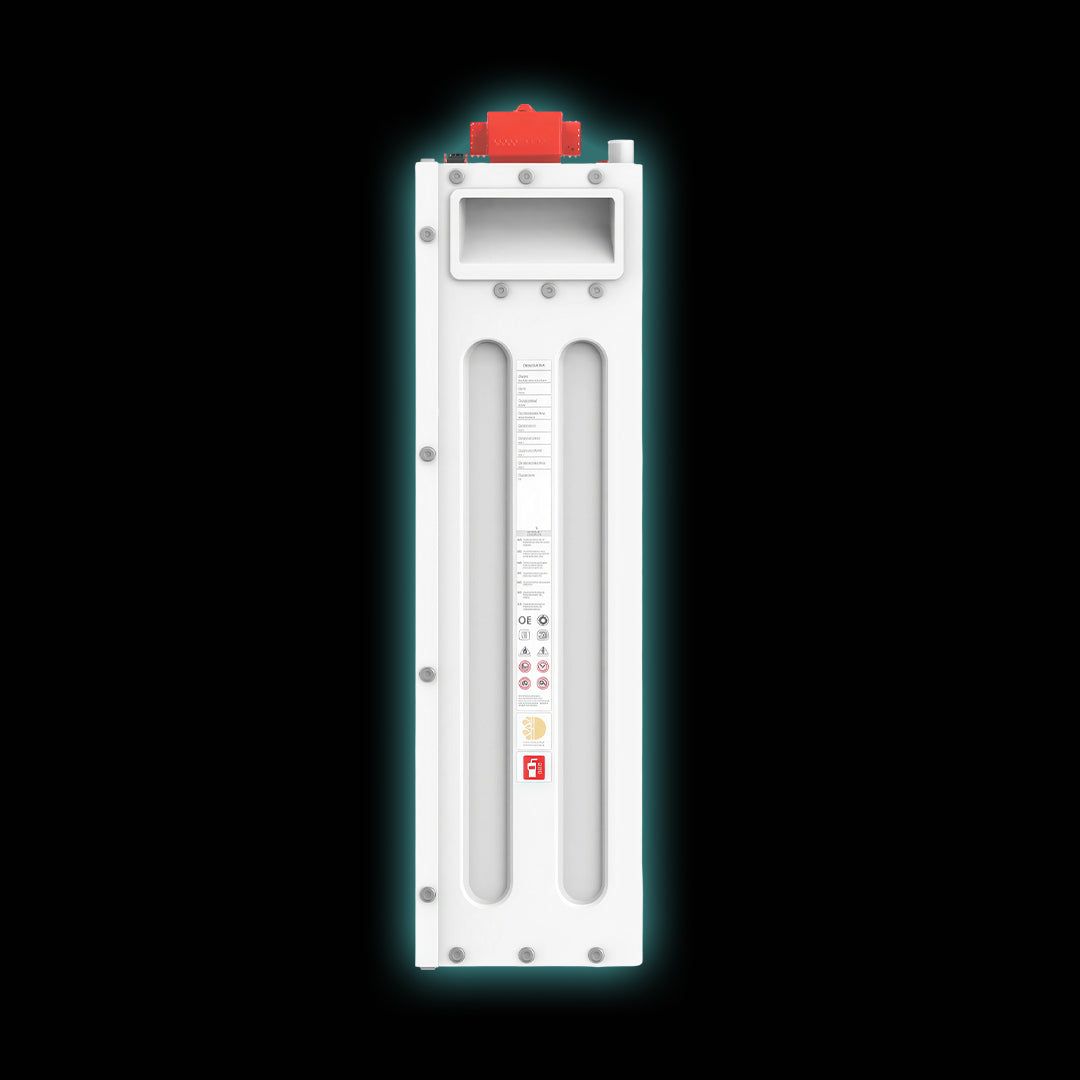

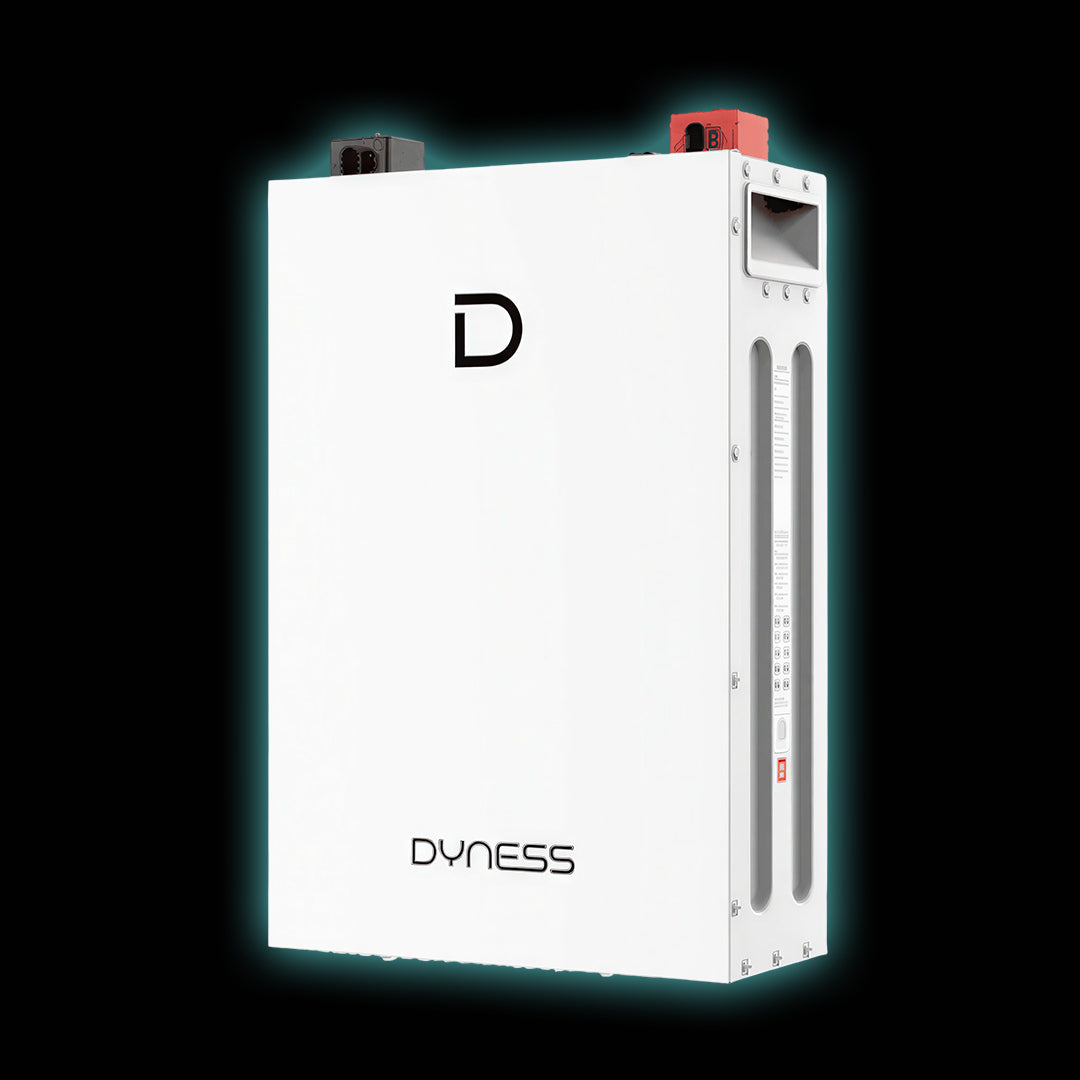

Dyness 5.12kWh DL5.0F Lithium Battery

The Dyness DL5.0F 5.12kWh Lithium Iron Phosphate (LiFePO4) Battery is a premium energy storage solution designed for residential and small commercial solar applications. Built with advanced cell-to-pack technology, this high-performance battery delivers reliable backup power, exceptional safety, and long-term durability, making it an ideal choice for solar energy storage, load shedding protection, hybrid systems, and off-grid installations.

With a nominal energy capacity of 5.12kWh and usable energy of 4.864kWh, the DL5.0F provides efficient storage and dependable power when you need it most. Its impressive 1C discharge capability allows the battery to deliver up to 5.12kW of power, enabling multiple household or business loads to operate simultaneously during outages or peak demand periods.

Designed for flexibility and future expansion, the Dyness DL5.0F supports up to 50 batteries in parallel, allowing systems to scale from 5.12kWh up to 256kWh of total storage capacity. Installation is simple and versatile, with support for wall-mounted, floor-standing, rack-mounted, and bracket-mounted configurations, including compatibility with standard 19-inch racks.

Safety is a key feature of the DL5.0F, incorporating a built-in aerosol fire suppression system for enhanced protection. The battery also supports CAN and RS485 communication protocols, ensuring seamless integration with leading inverter brands including Deye, Victron Energy, GoodWe, Growatt, Solis, LuxPower, SMA, Schneider Electric, Ingeteam, Solplanet, and APSystems.

Key Features

• 5.12kWh nominal battery capacity
• 4.864kWh usable energy capacity
• Advanced Lithium Iron Phosphate (LiFePO4) chemistry
• High-performance 1C discharge rate
• Maximum discharge power of 5.12kW
• 95% depth of discharge (DoD)
• 8,000+ cycle lifespan
• Expandable up to 50 units in parallel
• Integrated fire suppression system
• CAN and RS485 communication
• Multiple installation options
• Compatible with major inverter brands
• Ideal for solar energy storage, backup power, load shedding, and off-grid systems

Technical Specifications

• Battery Type: LiFePO4
• Nominal Energy: 5.12kWh
• Usable Energy: 4.864kWh
• Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V to 57.6V
• Max Charge Current: 75A
• Max Discharge Current: 100A
• Peak Discharge Current: 110A (15 seconds)
• Max Charge Power: 3.84kW
• Max Discharge Power: 5.12kW
• Cycle Life: ≥8000 Cycles
• Weight: 41kg
• Dimensions: 345 × 548 × 146mm
• Protection Rating: IP20

The Dyness DL5.0F Battery is a reliable, scalable, and future-ready energy storage solution that combines high power output, exceptional longevity, and advanced safety features to deliver superior performance for modern solar and backup power systems.
