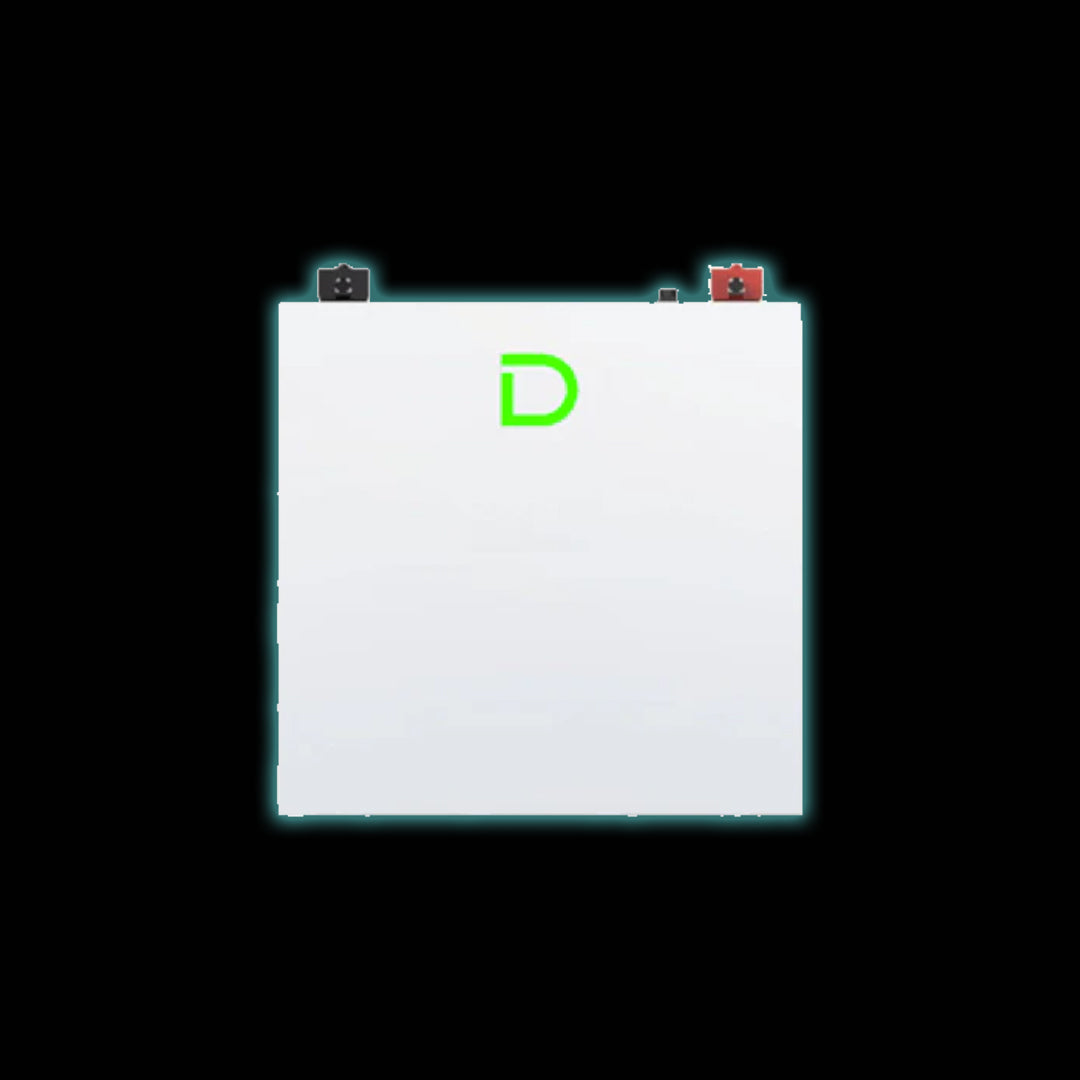

Dyness DL5.0C Pro 5.12KWH

The Dyness DL5.0C Pro 5.12kWh Lithium Battery is a next-generation lithium iron phosphate (LiFePO4) energy storage solution designed for residential and small commercial solar applications. Engineered for safety, performance, and scalability, the DL5.0C Pro delivers reliable power storage with advanced smart features and long service life.

With support for high discharge rates, intelligent monitoring, and flexible installation options, this battery is ideal for homeowners and businesses looking to maximise solar self-consumption, improve energy independence, and ensure backup power during outages.

Key Features and Benefits

• Advanced LiFePO4 battery chemistry for superior safety and stability
• 5.12kWh usable energy capacity per module
• High depth of discharge up to 95% for maximum usable energy
• Long lifespan with over 6,000 charge cycles
• 1C discharge capability for high-power applications
• Supports up to 50 batteries in parallel for scalable energy storage
• Built-in WiFi module with app-based monitoring and OTA updates
• Optional automatic self-heating for cold-climate operation
• Optional active fire protection system with rapid response

Technical Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Energy: 5.12kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage Range: 44.8V – 57.6V
• Recommended Charge & Discharge Rate: 0.5C
• Maximum Discharge Rate: 1C
• Recommended Charge/Discharge Current: 50A
• Maximum Charge Current: 75A
• Maximum Discharge Current: 100A
• Peak Discharge Current: 120A (10 minutes)
• Depth of Discharge: 95%
• Cycle Life: ≥ 6000 cycles
• Weight: 46kg
• Dimensions (W x D x H): 488 x 515 x 150mm
• Ingress Protection: IP20

Temperature Performance

• Charging Temperature Range: 0°C to 55°C
• Discharging Temperature Range: -20°C to 55°C
• Optional self-heating function enables charging down to -20°C

System Compatibility and Applications

The Dyness DL5.0C Pro is compatible with a wide range of leading inverter brands and can be used in hybrid solar systems, off-grid systems, and backup power solutions.

Typical applications include:

• Residential solar energy storage
• Hybrid inverter systems
• Off-grid solar installations
• Small commercial and industrial energy storage

Safety and Certification

Designed with multiple layers of protection, the DL5.0C Pro meets strict international safety and quality standards:

• UN38.3
• IEC 62619
• CE-EMC
• CE-RED

An optional intelligent aerosol fire extinguishing system provides an additional layer of protection for enhanced peace of mind.

Why Choose the Dyness DL5.0C Pro 5.12kWh

The Dyness DL5.0C Pro combines advanced safety features, smart energy management, and exceptional scalability in a compact, modern design. Whether installed as a single battery or expanded into a large multi-battery system, it offers a future-proof energy storage solution with high efficiency and long-term reliability.

This battery is an excellent choice for users seeking a premium lithium battery with smart monitoring, strong inverter compatibility, and proven performance.
