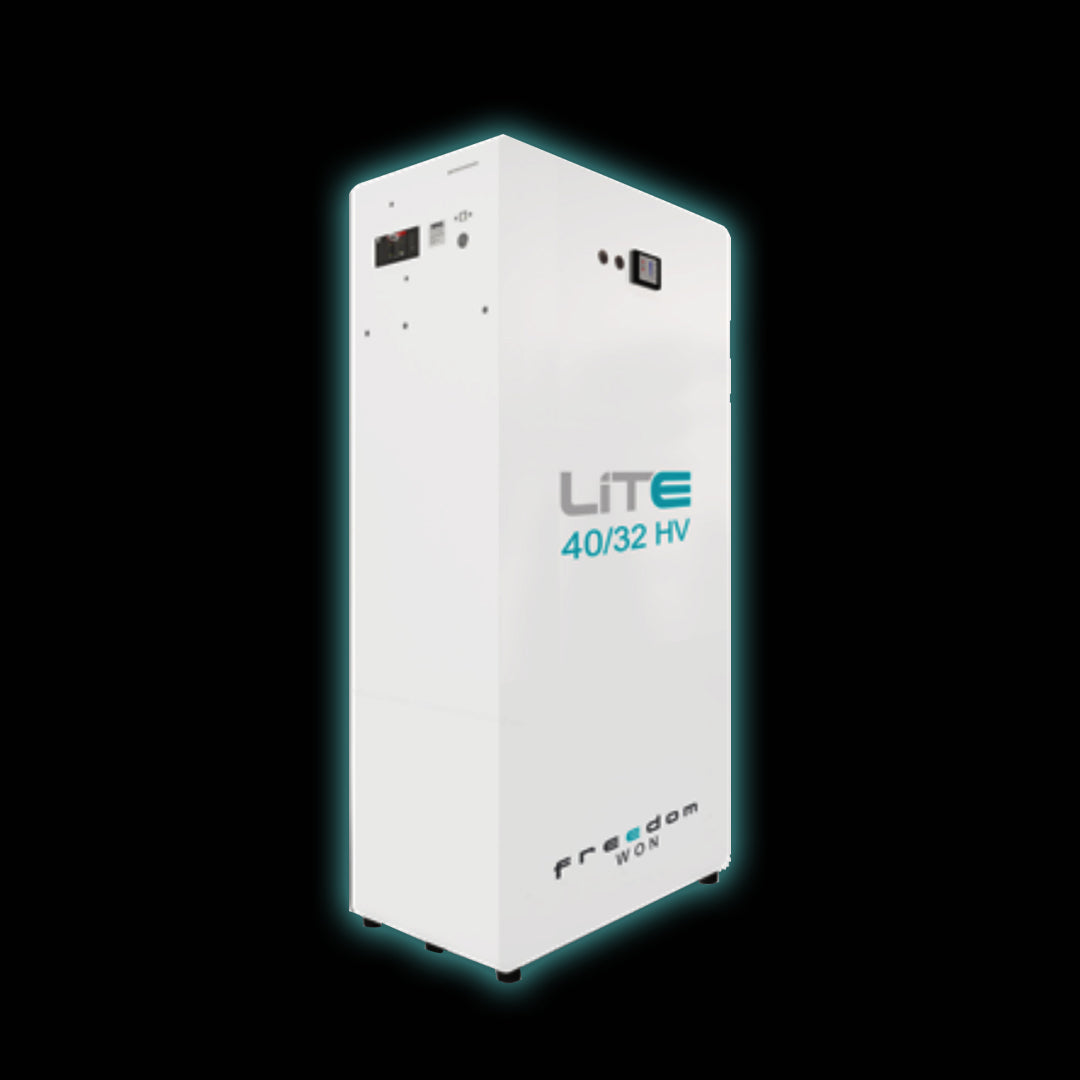

Freedom Won Lite Home 40/32kW HV 410v

The Freedom Won Lite Home 40/32 HV is a compact, high-voltage lithium iron phosphate (LiFePO₄) battery system designed for residential and light commercial energy storage. With a total energy capacity of 40kWh and a nominal voltage of 410V, this unit offers reliable performance, advanced safety features, and long-term durability for hybrid and off-grid applications.

Key Features:

• Energy Capacity: 40kWh total, with 32kWh usable at 80% DoD and 36kWh at 90% DoD.
• Voltage Range: 410V nominal, operating between 365V and 454V.
• Power Output: Up to 61kW peak discharge and 40kW continuous discharge.
• Charge Capability: 100A continuous charge current.
• Durable Enclosure: Powder-coated aluminium housing rated IP20 for indoor or protected environments.
• Integrated Safety: Shunt trip circuit breaker with BMS-controlled protection for overcurrent, voltage, temperature, and SoC.
• Smart Interface: CAN Bus and RJ45 ports for diagnostics and inverter communication, plus LED State of Charge display and USB programming port.
• Long-Term Reliability: 10-year warranty or 4,000 cycles at 80% DoD, with expected service life of 13–15 years at 70% DoD and up to 20 years at 50% DoD.

Technical Specifications:

• Nominal Voltage: 410V
• Max/Min Operating Voltage: 454V / 365V
• Battery Dimensions: 1260mm (H) x 740mm (W) x 290mm (D)
• Weight: 327kg
• DC Connection: 1 x 25mm² Permopower fly lead per electrode
• Cooling: Natural convection
• Operating Temperature: 0°C to +35°C (recommended), -20°C to +60°C (extreme)

Applications:

Ideal for high-voltage solar energy systems, hybrid installations, and backup power solutions requiring compact, scalable, and efficient energy storage.
