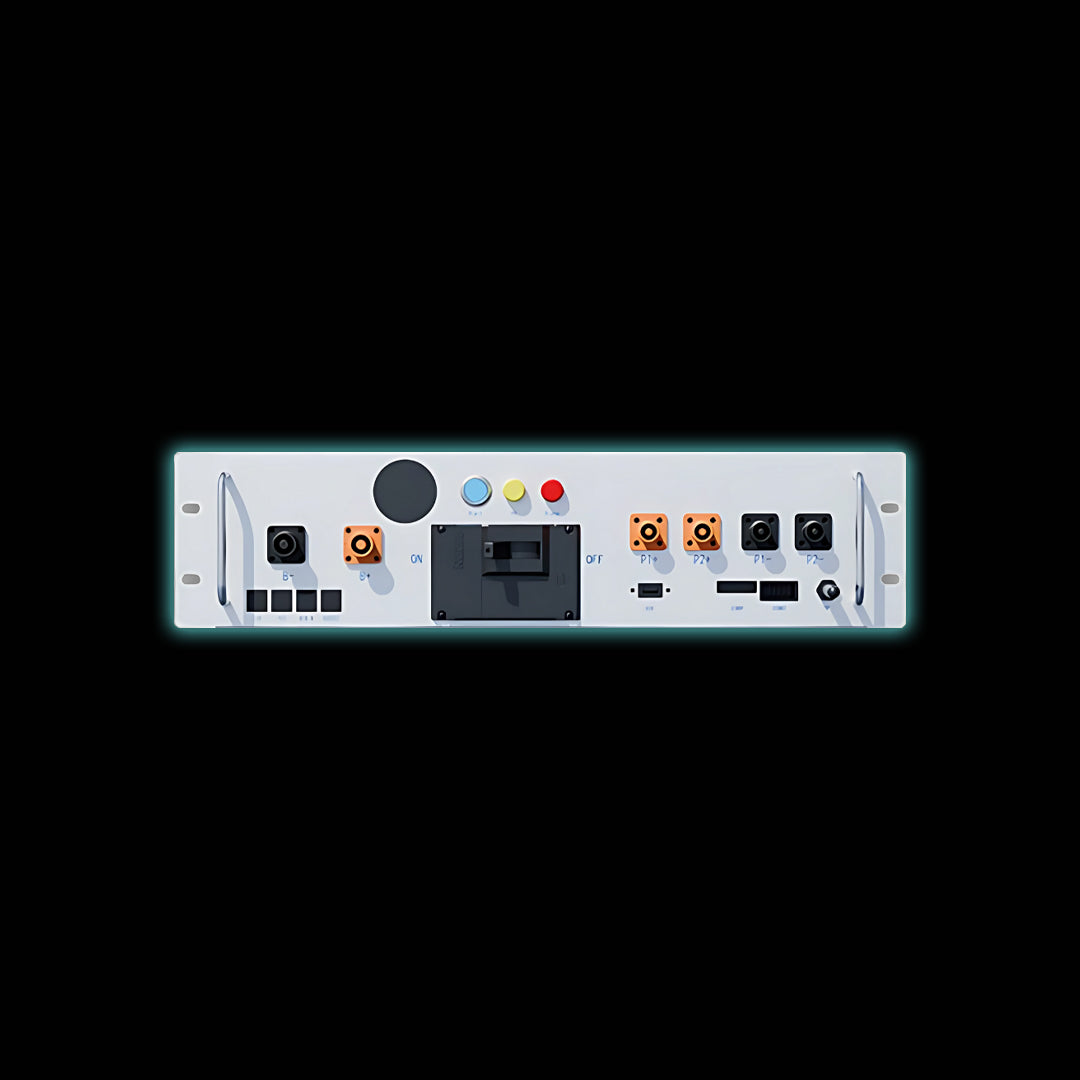

Deye BOS-B High Voltage Control Box

Deye BOS-B High Voltage Control Box

R 31,003.00 ZAR
R 31,003.00 ZAR
Sale Sold out
Tax included.

CONTACT US FOR RESELLER PRICING

Deye BOS-B High Voltage Control Box | Intelligent Battery Management for High Voltage ESS

The Deye BOS-B High Voltage Control Box is a critical component in Deye’s high-voltage energy storage systems, designed to manage and protect lithium-ion battery clusters in commercial and industrial applications. Engineered for safety, scalability, and intelligent control, this unit ensures seamless communication between battery modules and power conversion systems (PCS), while providing advanced monitoring and protection features.

Key Features:

  • Centralized Battery Management: Coordinates up to 15 BOS-B battery modules in series, enabling scalable energy storage from 71.5kWh to 214.5kWh.
  • Smart Communication: Equipped with TCP, RS485, and CAN interfaces for real-time data exchange with PCS and monitoring platforms.
  • Integrated Safety Systems: Includes emergency power-off interface, high-voltage hazard indicators, fault alarms, and manual DC circuit breaker for secure operation.
  • User-Friendly Interface: LCD display shows State of Charge (SOC), fault codes, and operational status for quick diagnostics.
  • Thermal Management: Smart fan cooling ensures optimal operating temperatures and system longevity.
  • Robust Design: Rack-mountable with IP20-rated enclosure for indoor installations.

Technical Specifications:

  • Rated Voltage: 768Vdc (system nominal)
  • Rated Current: 168A
  • Communication Ports: TCP / RS485 / CAN
  • Emergency Power-Off Interface: Included
  • Display: LCD screen with SOC and fault indicators
  • Cooling: Smart fan cooling
  • Enclosure Protection: IP20
  • Dimensions: Approx. 650 × 200 × 800 mm
  • Weight: ~60kg
  • Certifications: CE, IEC62619, IEC62040, UN38.3
  • Warranty: 10 Years

Applications:

  • Commercial and industrial energy storage systems
  • Renewable energy integration
  • Backup power management
  • Load balancing and peak shaving

Why Choose the Deye BOS-B HV Control Box?

Designed to be the brain of your high-voltage battery system, the BOS-B Control Box ensures safe, efficient, and intelligent operation. It simplifies system setup, enhances safety, and provides the connectivity needed for advanced energy management.

Deye Battery High Voltage 215kWh Specifications Document


Deye Battery High Voltage BOS-B User Manual
